Technical Tip: Manually update Auto-Definition Directory for FortiNAC in airgap environments

Description

This article describes the procedure to manually update the Auto-Definition Directory for FortiNACs in Airgap environments, or when the FortiNAC cannot communicate with 'fnac-updates.fortinet.net'.

Scope

FortiNAC, FortiNAC-F (all versions).

Solution

Usually, System Updates are configured under 'System -> Settings -> Updates -> System' to poll updates from 'fnac-updates.fortinet.net'. In this article, a local FTP repository will be used instead to poll these updates.

1. Go to 'https://fnac-updates.fortinet.net/' from any browser. Credentials can be obtained from TAC support.

2. Download the following files to a local machine:

   1. 'bnoui.txt.gz'

   2. All the files which start with 'AutoDefSynUpDates_*'.

3. Add these files to the root directory of the FTP server.

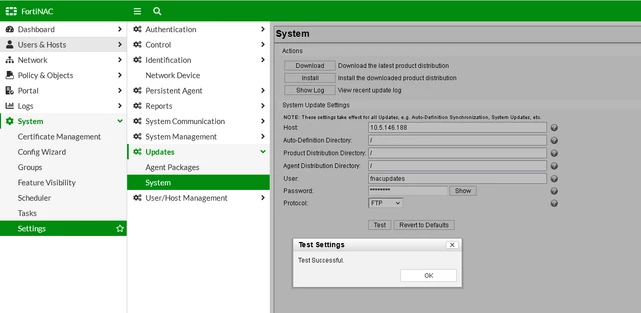

4. On the FortiNAC GUI, go to 'System -> Settings -> Updates -> System':

   1. Under 'Host:', provide the IP address of the FTP server.

   2. Under 'Auto-Definition Directory:', add '/'. This will correspond to the root directory of the FTP server.

   3. Under 'Product Distribution Directory:', add '/'.

   4. Under 'Agent Distribution Directory:', add '/'.

   5. Under 'User:', add the username of the FTP server.

   6. Under 'Password:', add the password of the FTP server.

   7. Under 'Protocol:', select 'FTP'.

   8. Select 'Test', and confirm that the FortiNAC can communicate with the FTP server.



5. Go to 'System -> Scheduler', select 'Auto-Definition Synchronizer', then select 'Run Now'.

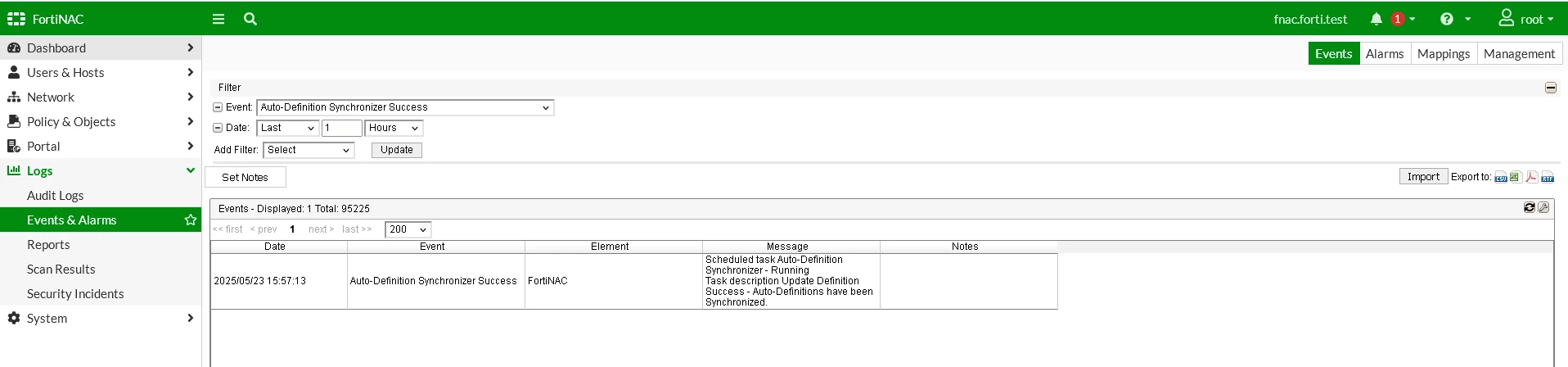

6. Go to 'Logs -> Events & Alarms -> Events' and confirm that the synchronization was successful.

Notes:

Auto Definitions are updated periodically on 'https://fnac-updates.fortinet.net/', and this procedure should be done regularly by the FortiNAC administrator if the FortiNAC cannot poll the updates automatically.
