Technical Tip: How to send disconnect message to Meraki MR Access Point for VLAN change
| Description | This article describes the configuration steps required to send the Disconnect Message (DM) to the Clients connected to the Meraki MR access point. |
| Scope | FortiNAC-F. |
| Solution | When Meraki MR access points are managed standalone via FortiNAC. A custom Disconnect Message (Disconnect-Request) should be configured for the Meraki AP to disconnect the host and trigger a VLAN change.
Method: Use custom RFC5176 mode with 'Disconnect Message' and two AVPs, which are:

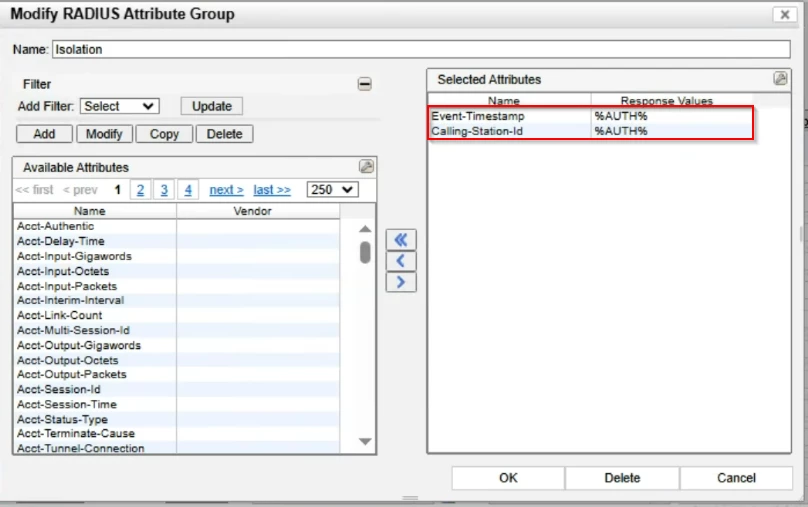

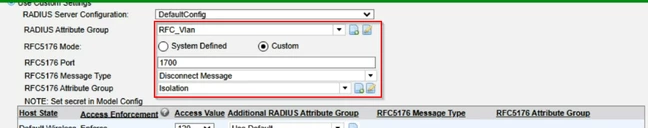

Create a custom Radius Attribute group with the above AVPs and call it inside the custom RFC5176 Mode under the model configuration of each Meraki MR access point.
|
