Technical Tip: How to perform an FortiNAC reboot or restart NAC service using a custom script on a scheduler

• FortiNAC Reboot custom script:

Create a script file 'Run-Reboot' under /home/cm/scripts:

execute enter-shell
$ cd /home/cm/scripts/

$ vi Run-Reboot

#!/bin/sh
# -------------------------------------------------------
# Script Name : Run-Reboot
# Purpose : Executes a safe system reboot with sudo
# Location : /home/cm/scripts
# -------------------------------------------------------

# Check if environment file .yams exists
if [ -e /bsc/campusMgr/bin/.yams ]; then
. /bsc/campusMgr/bin/.yams
else
. /root/.profile
fi

# Go to the main directory (optional)
cd /bsc/campusMgr/bin

# Display a message
echo "Executing system reboot with sudo..."

# Execute reboot command
sudo /sbin/reboot

exit 0

List the file under the /home/cm/scripts directory:

/home/cm/scripts$ ll
total 32
20 -rwxrwxr-x 1 nac cmdb 15972 May 14 18:20 ServiceNow.example*
8 -rwxrwxr-x 1 nac cmdb 1244 May 14 18:20 RunSharedReports*
4 -rw-r--r-- 1 admin admin 563 Oct 27 16:36 Run-Reboot

Make the script executable:

$ chmod +x Run-Reboot

List:

$ ll
total 32
20 -rwxrwxr-x 1 nac cmdb 15972 May 14 18:20 ServiceNow.example*
8 -rwxrwxr-x 1 nac cmdb 1244 May 14 18:20 RunSharedReports*
4 -rwxrwxr-x 1 nac cmdb 563 Oct 27 16:36 Run-Reboot*

Create the scheduler in the FortiNAC GUI:

Add a new Scheduler Activity:

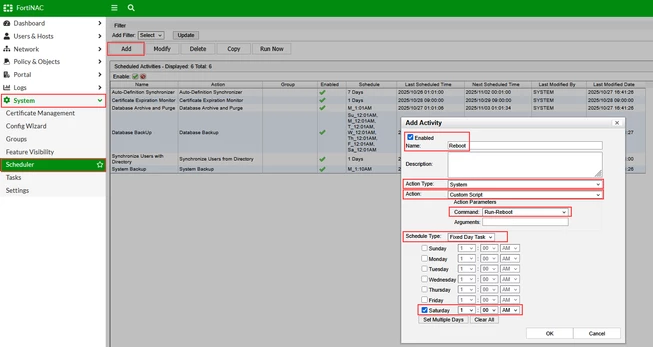

Figure 1. Add a new Scheduler Activity.

Based on business requirements, define the Scheduled Type:

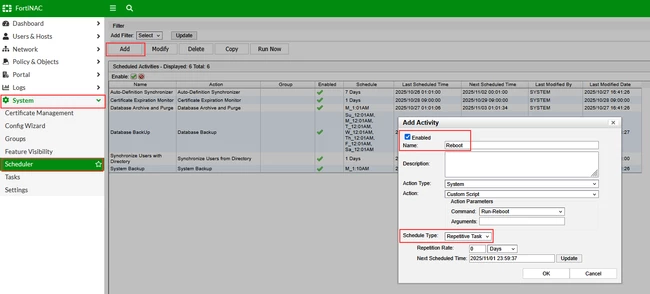

Figure 2. Scheduler type.

• Restart the NAC service custom script.

On FortiNAC CLI, under /home/cm/scripts create a custom script file named 'RestartNAC':

execute enter-shell
$ cd /home/cm/scripts/

$ vi RestartNAC

sudo systemctl restart nac

// use ESC button

:wq                ---> use :wq to save the file

Verify the file under the /home/cm/scripts directory:

/home/cm/scripts$ ll RestartNAC
total 32
4 -rw-r--r-- 1 admin admin 563 Oct 27 16:36 restartNAC

To utilize the script on FortiNAC GUI 'Scheduler' make the script executable using the following command on FortiNAC CLI:

$ chmod +x restartNAC

/home/cm/scripts$ ll RestartNAC
total 40
4 -rwxrwxr-x 1 nac cmdb 57 Mar 10 16:57 restartNAC*

On FortiNAC GUI, System -> Scheduler -> Create New Scheduled Activity using Custom script and utilize the restartNAC script under command:

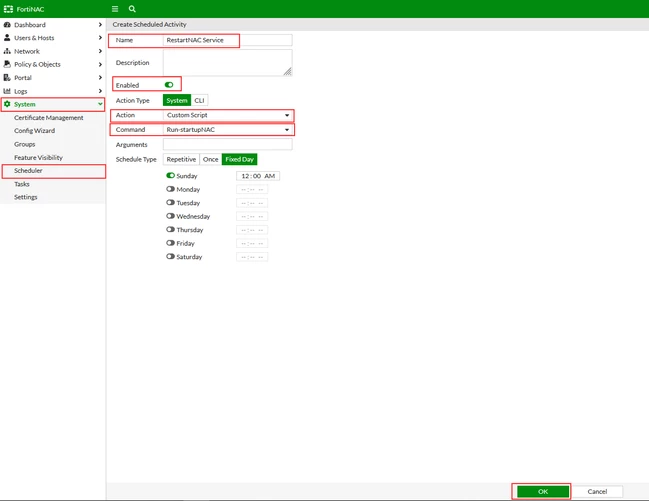

Figure 3. Create a new RestartNAC Scheduler Activity.

Scheduled Type can be defined as either a Repetitive, a Once, or a Fixed Day.

Troubleshoot:

To troubleshoot scheduler tasks activity, enable the following debug processes in FortiNAC:

execute enter-shell

diagnose debug plugin enable SchedulerInterface

diagnose tail -F output.master

Manually run the script from Scheduler View and verify the output.master log.

Relevant administration guide section: Add a task.
