Technical Tip: FortiNAC GUI shows details of new certificate recently updated but FortiNAC service still present the old certificate

Create a customized fixKeystorePrimaryLink script via CLI using the steps below:

FortiNAC_CLI# execute enter-shell
FortiNAC_CLI:~$ cd /home/cm/scripts

FortiNAC_CLI:~$ vi fixKeystorePrimaryLink

#/bin/bash
ln -sf /bsc/campusMgr/.keystorePrimary /bsc/campusMgr/.keystore
chown -h nac:cmdb /bsc/campusMgr/.keystore

Press the 'Esc' button.
Type :wq to save the file.

FortiNAC_CLI:/home/cm/scripts$ ll
4 -rw-r--r-- 1 admin admin 118 Feb 14 17:21 fixKeystorePrimaryLink

Perform 'chmod +x fixKeystorePrimaryLink' to give execute permission:

FortiNAC_CLI:/home/cm/scripts$ chmod +x fixKeystorePrimaryLink
FortiNAC_CLI:/home/cm/scripts$ ll
4 -rwxr-xr-x 1 admin admin 118 Feb 14 17:21 fixKeystorePrimaryLink*

Create a new scheduled job in the FortiNAC GUI to run the customized script created.
In the FortiNAC Admin GUI, go to System -> Scheduler, and create a new job:

• Action type: System

• Action: Custom Script

• Command: fixKeystorePrimaryLink (the new script just created)

• Schedule Type: Once



After, select a time a couple of minutes later than the current time.

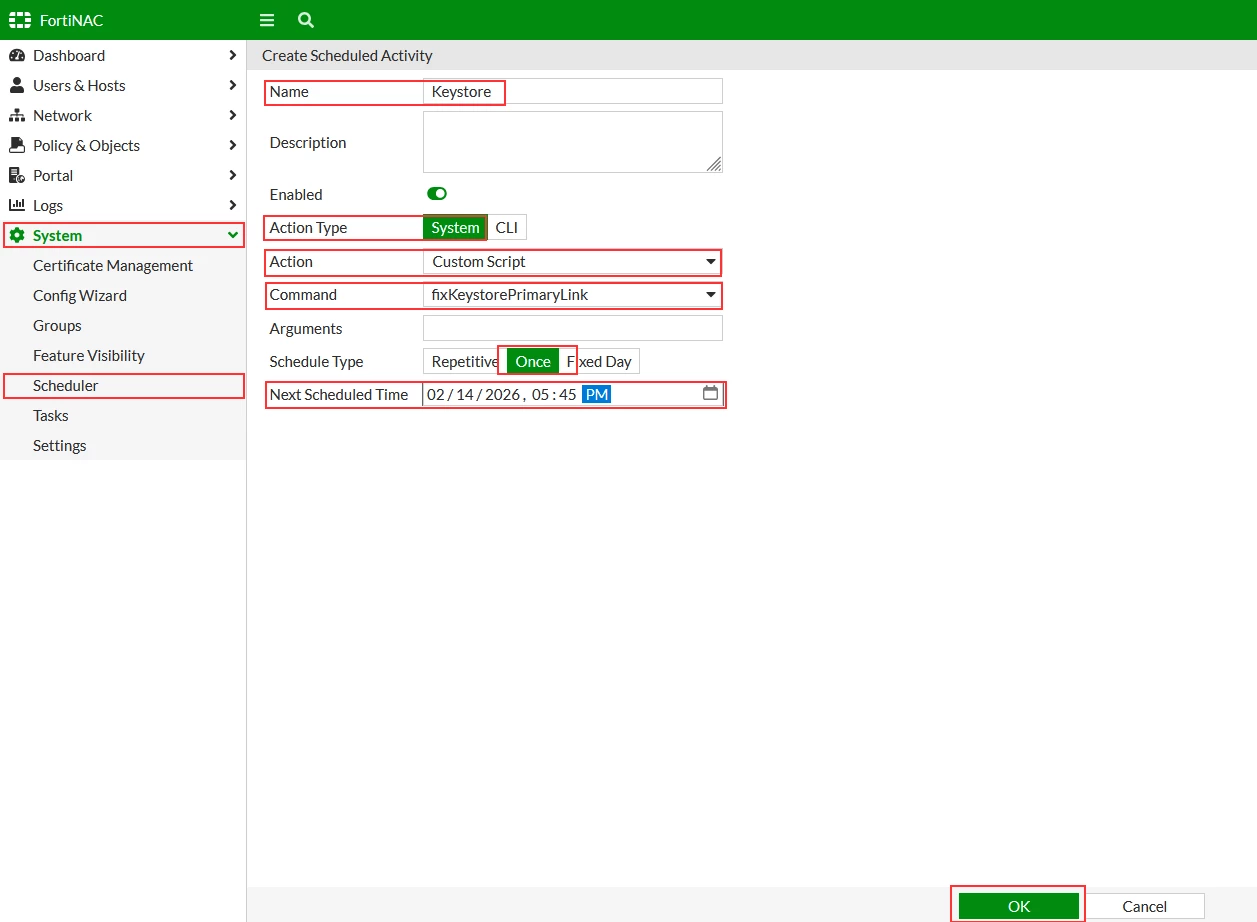

Figure 1. Scheduler Job.

After the script execution is complete, the Scheduler Job will automatically be removed.

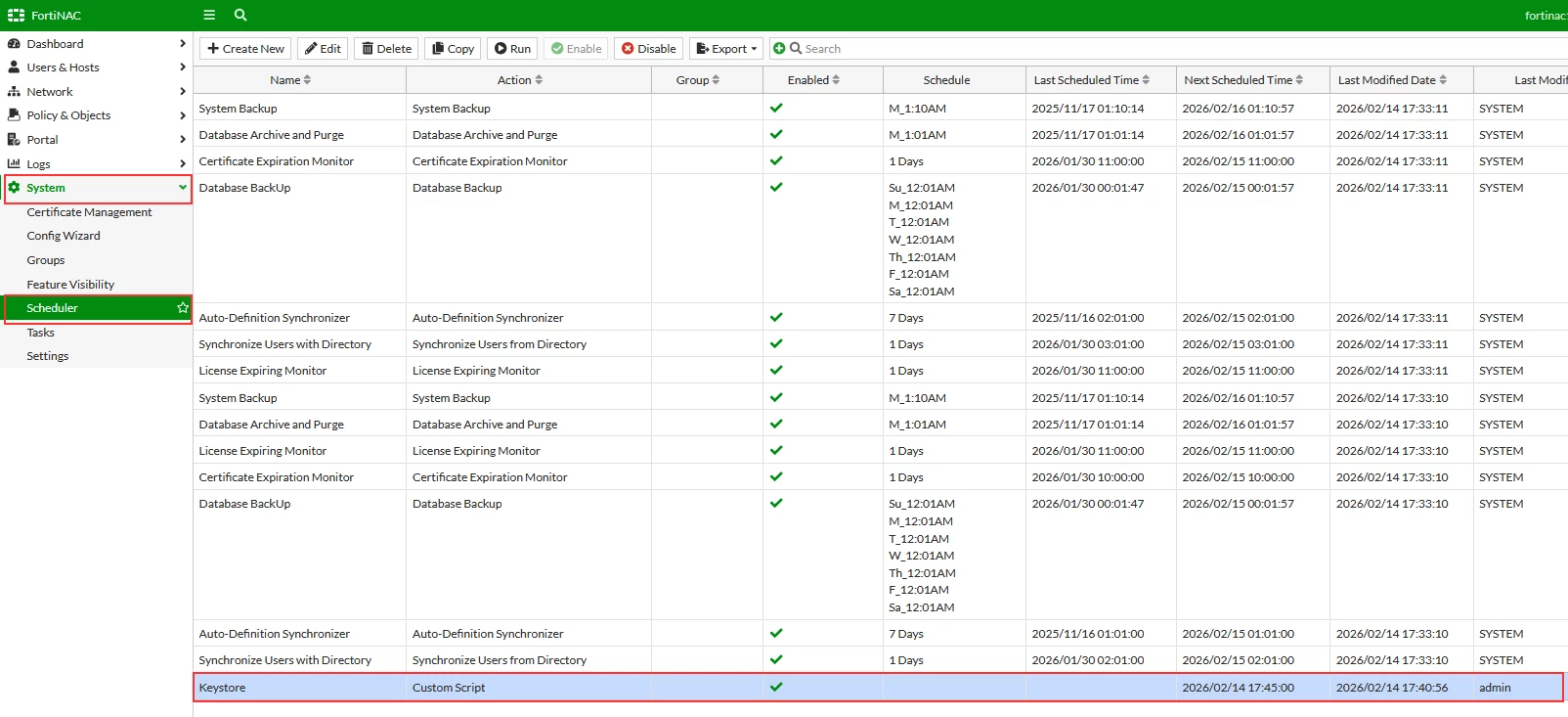

Figure 2. Scheduler view.
