Technical Tip: FortiNAC-F v7.6.x integration with Juniper MIST Cloud

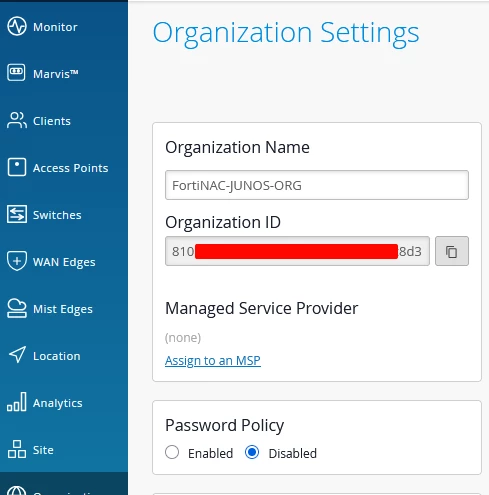

1. Access the Juniper MIST cloud account and go to Organization -> Settings.

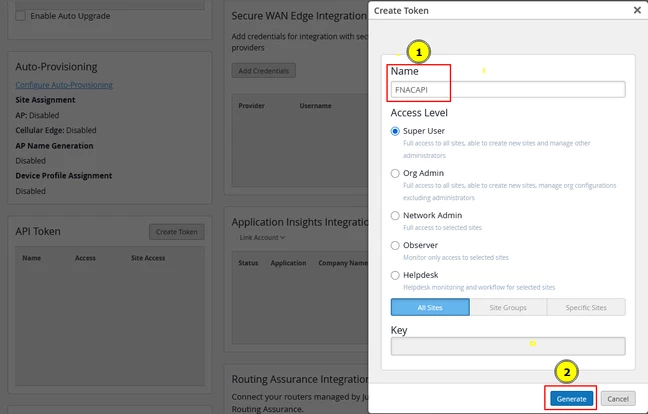

2. Then scroll down and select 'Create Token' under Organization -> Settings -> API Token.

3. After selecting Generate, an API key will be generated. Make sure to copy this key to a safe place as it cannot be retrieved later.

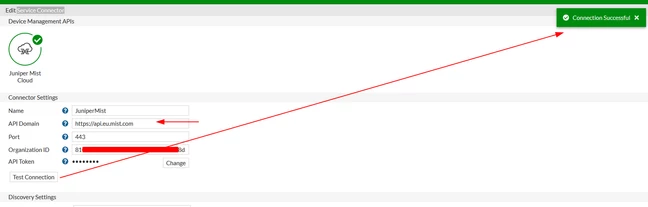

4. Then go back to FortiNAC and under Network -> Service Connectors -> Select Juniper Mist cloud.

   For the API Domain, enter the correct URL where the organization is hosted (The URLs below are subject to change by the vendor).

Global 01 manage.mist.com api.mist.com

Global 02 manage.gc1.mist.com api.gc1.mist.com

Global 03 manage.ac2.mist.com api.ac2.mist.com

Global 04 manage.gc2.mist.com api.gc2.mist.com

EMEA 01 manage.eu.mist.com api.eu.mist.com

EMEA 02 manage.gc3.mist.com api.gc3.mist.com

EMEA 03 manage.ac6.mist.com api.ac6.mist.com

APAC 01 manage.ac5.mist.com api.ac5.mist.com

In this case, the Organization is hosted in api.eu.mist.com.

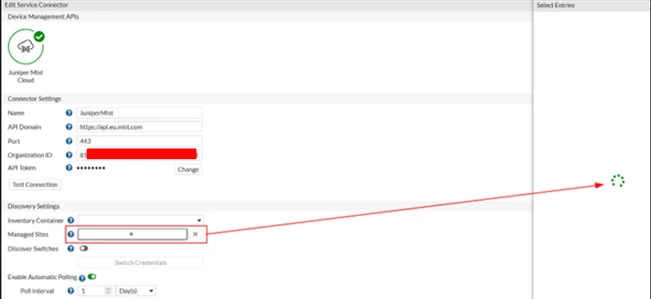

5. If the Managed Sites keep loading, this behavior is addressed in v7.6.5 GA.

6. If Juniper switches are managed via MIST cloud, make sure the 'Discover Switches' toggle in the Juniper Mist Service Connector is checked and the SNMP and CLI credentials are supplied.
