| Starting from FortiNAC-F v7.6.0, it is possible to configure Custom Health Check in addition to the Predefined Health Check for High Availability. If this check fails, the primary FortiNAC will trigger a 'System Check Failed!' event and force failover to the secondary. - Go to 'System -> Settings -> System Management -> Custom Health check -> Custom Health Check Rule', and select 'Create New':
- 'Name': provide a unique name for this rule.
- 'Type': select one of the available check types:
- ICMP: Pings the server.
- TCP Echo (F v7.6.0 to F v7.6.2 only:( Sends a TCP echo to server port 7. Expects the server to respond with the corresponding TCP echo.
- TCP: Specify port (listening port number of the backend server) as an input.
- RADIUS (F v7.6.0 to F v7.6.2 only:( Listening port number of the backend server. Default RADIUS is 1812.
-
'Retry': select the number of attempts to retry this health check rule; default is 1. - 'Timeout': Seconds to wait for a reply before assuming the health check has failed.
-

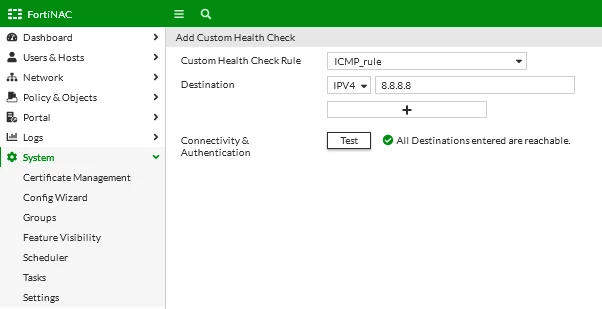

Go to 'System -> Settings -> System Management -> Custom Health Check -> Custom Health Check', and select 'Add': - 'Custom Health Check Rule': Select the rule that's been configured in the first step.
- 'Destination': Select the IP address of the target server for this check. It's possible to add multiple destinations to be checked concurrently. And logic will be applied here; if one destination fails, the health check will fail.
- Select 'Test' to confirm if the rule passes the check before applying the settings.
Troubleshooting: The 'output.processManager' log file will show the status of the health check. It can be viewed using the command: diagnose tail -f output.processManager In normal scenarios, when the health check is successful, the following output will be generated on the primary FortiNAC: 2025-02-18 14:57:30.271 +0100 [main] INFO yams.CampusManager - [getCustomHealthCheckResult]custom health check enabled
2025-02-18 14:57:30.286 +0100 [main] INFO yams.CampusManager - [isSystemOK] latest predefined result true custom health check result true, final result true But when the health check fails, the following output will be generated on the primary FortiNAC. - On the primary:
2025-02-18 15:57:25.611 +0100 [com.bsc.server.CustomHealthCheckTaskController] INFO c.f.f.l.s.CustomHealthCheckService - Protocol check name ICMP_rule timed out, try 0
2025-02-18 15:57:28.620 +0100 [com.bsc.server.CustomHealthCheckTaskController] INFO c.f.f.l.s.CustomHealthCheckService - Protocol check name ICMP_rule timed out, try 1
2025-02-18 15:57:30.716 +0100 [main] INFO yams.CampusManager - [getCustomHealthCheckResult]custom health check enabled
2025-02-18 15:57:30.726 +0100 [main] INFO yams.CampusManager - [isSystemOK] latest predefined result true custom health check result false, final result false
2025-02-18 15:57:30.726 +0100 [main] INFO yams.CampusManager - ******* System Check Failed! *******
2025-02-18 15:57:30.726 +0100 [main] INFO yams.CampusManager - ******* Changing status to - Secondary In Control *******
2025-02-18 15:57:30.727 +0100 [main] INFO yams.CampusManager - Sending Force Failover to trigger other servers
2025-02-18 15:57:31.236 +0100 [main] INFO yams.CampusManager - ******* Shutting Down - Secondary In Control ******* -
On the secondary: 2025-02-18 09:57:51.651 -0500 [main] INFO yams.CampusManager - **** Primary responded with Secondary In Control ****
2025-02-18 09:57:51.758 -0500 [main] INFO yams.CampusManager - **** Failed to talk to primary and able to ping the gateway **** PingRetryCnt exceeded!
2025-02-18 09:57:51.759 -0500 [main] INFO yams.CampusManager - ******* Changing status to Secondary In Control *******
2025-02-18 09:57:51.760 -0500 [main] INFO yams.CampusManager - ******* Starting Primary Not in Control ******* Related documents: Custom Health Check
