Technical Tip: Authenticating local users with EAP‑PEAP protocol

Description

This article describes the configuration steps required in FortiNAC to enable EAP‑PEAP authentication for local users.

Scope

 FortiNAC.

Solution

The details of EAP-PEAP/MSCHAPv2 authentication are covered in Technical Tip: MSCHAPv2 authentication, join FortiNAC in domain and checks.

To achieve the same result with local users in FortiNAC, enable the feature by running the following commands in the CLI:

execute enter-shell
globaloptiontool -name "localRadiusServer.mschapV2LocalUserAuth" -set true

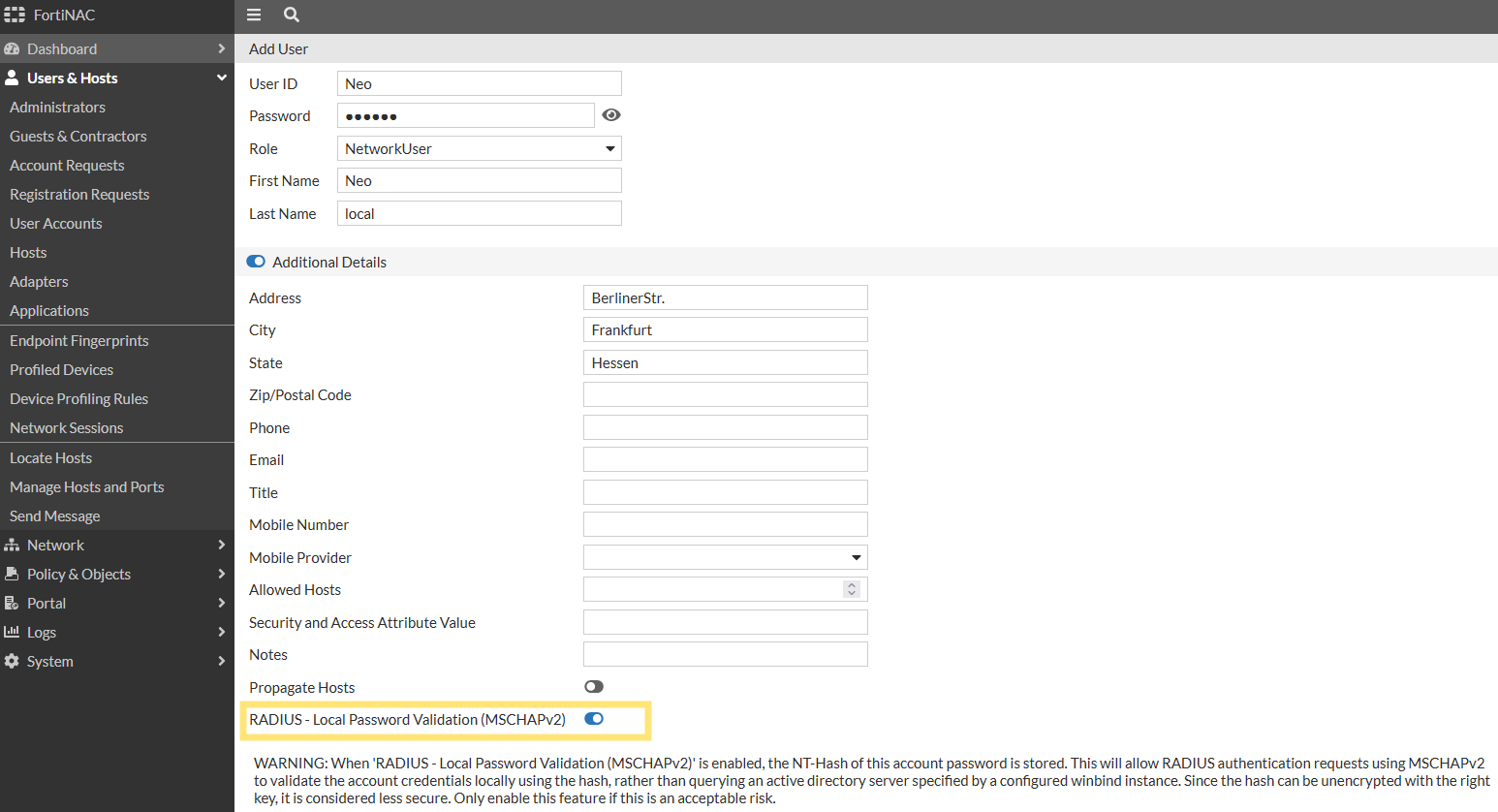

This will add a new control button to the Add/Edit user view (under Additional Details) that can be enabled for specific users: RADIUS -> Local Password Validation (MSCHAPv2).
