Technical Tip: View DHCP Fingerprint information received by from hosts
Description
This article describes how to view DHCP traffic received from the production network for DHCP fingerprint data.
Scope
Version: FortiNAC 9.x & FortiNAC-F 7.x.
Solution
Option 1: Administration UI.

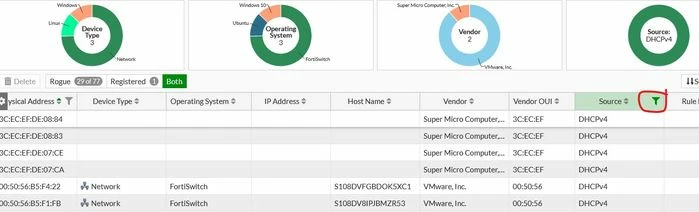

- Navigate to Users & Hosts -> Endpoint Fingerprints.
- To filter just DHCP traffic, select the filter icon next to the Source column header.
Click on the image below to zoom in.
Option 2: FortiNAC CLI - Run a tcpdump and filter for port 67 or 68.
CentOS:
- Login as root and run the following command:
tcpdump -nni eth0 port 67 or 68
- Press CTRL+C to stop the process.
FortiNAC-OS:
See Technical Tip: Run tcpdump in FNAC-F and save capture as a file.
