Technical Tip: How to use LDAP Nested Security Groups in FortiNAC

  • September 26, 2024
  • 0 replies
  • 1131 views
Description This article describes how to configure FortiNAC to use LDAP Nested Security Groups in FortiNAC.
Scope FortiNAC, FortiNAC-F.
Solution

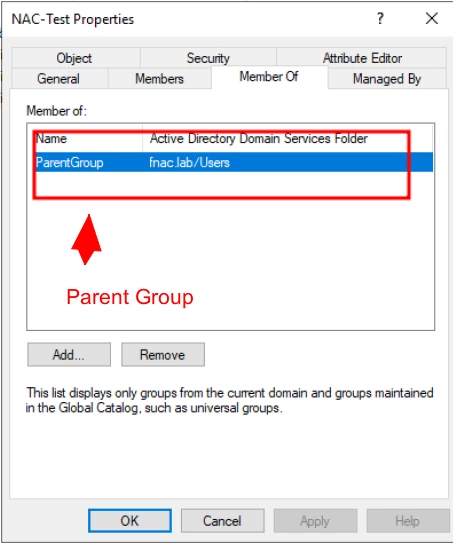

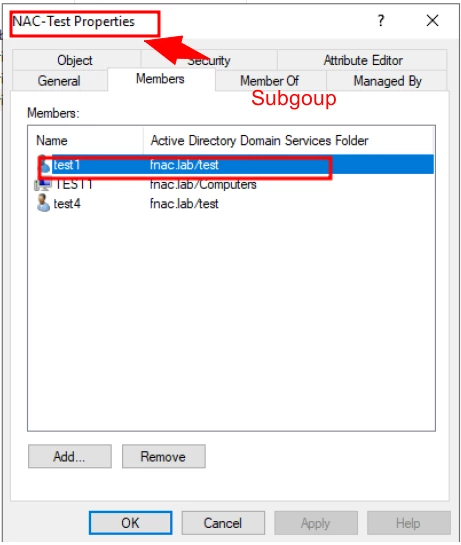

  1. Configure Nested Groups in LDAP and assign one LDAP user as a member of a subgroup.

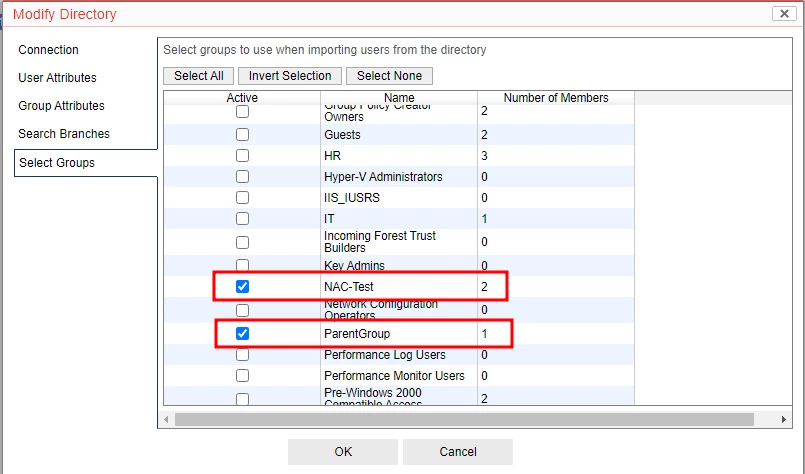

  1. Under System -> Settings -> Authentication -> LDAP, select both groups and sync the directory.

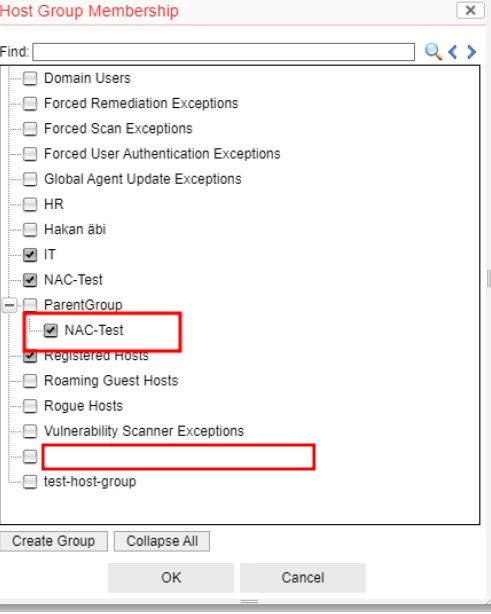

  1. After directory sync, both groups will appear under the Group menu as nested, shown below.


  1. When the test 1 user logs on to a host, the host will be a member of the NAC-Test group and of course parent group.

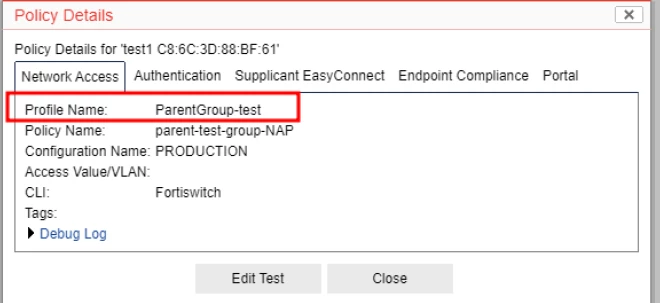

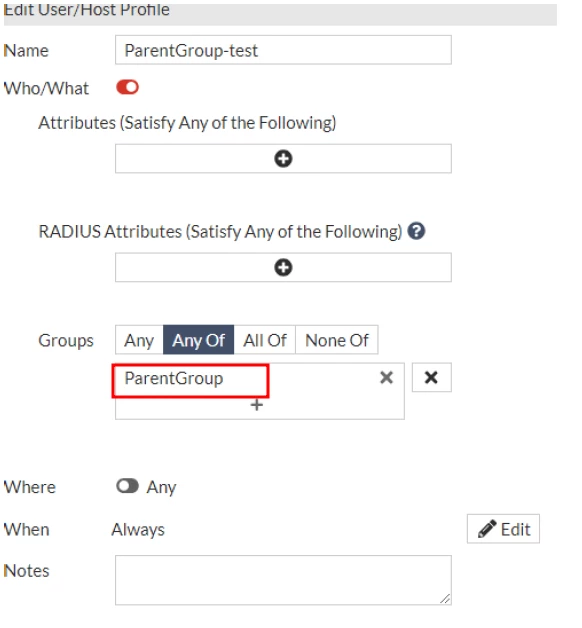

  2. When a User Host Profile is configured with Criteria Parent Group, the host will match the User Host Profile.
