Technical Tip: How to send tagged voice VLAN to FortiSwitch via FortiNAC RADIUS attributes

To assign voice VLAN to IP phones connected to FortiSwitch when it is integrated with FortiNAC:

1. FortiNAC must authenticate the IP phone using Device Profiling Rules.
2. LLDP profile for voice traffic must be configured on FortiGate managing the FortiSwitch and assigned to the interface where the IP phone is connected.
3. FortiSwitch version must be 7.0.1 and above.
4. LLDP is enabled on the IP phone.

VLAN config on FortiGate:

config switch vlan

    edit 120

        set description "voicenac"  <-- VLAN description.

       next

FortiNAC Model Configuration:

Access from Topology:

1. Select Network -> Inventory.
2. Expand the Container icon.
3. Select the device, and then select Virtualized Devices.
4. 'Double-click' on root VDOM.

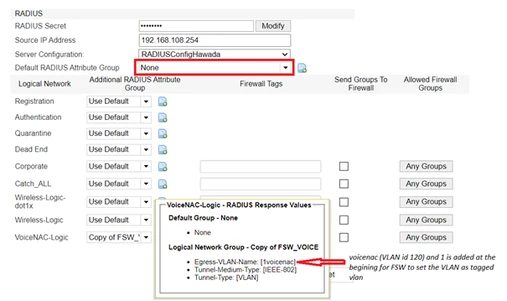

VLAN name/description is 'voicenac';  '1' has been added to the beginning of the RADIUS AVP 'Egress-VLAN-Name' <tagged/untagged(1 or 2)><VLAN Name String> (example: "1voicenac") to be understood by the FortiSwitch as a tagged VLAN.

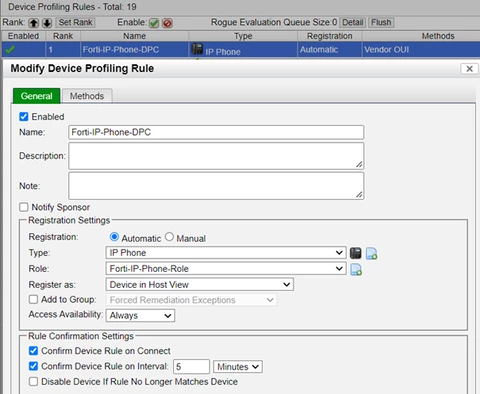

Device Profiling Rule matches only the Vendor OUI:

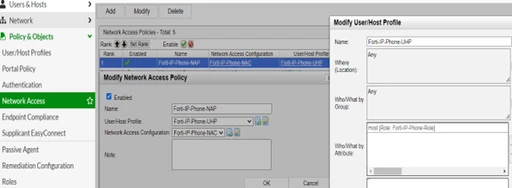

Network Policy, and User/host profile to authenticate the IP phone:

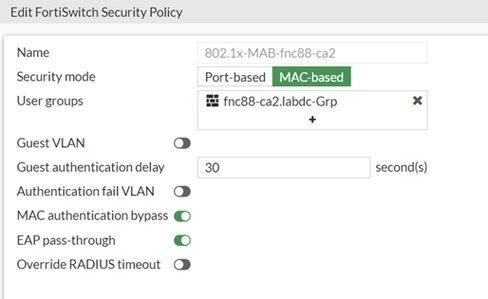

FortiSwitch RADIUS Security Policy:

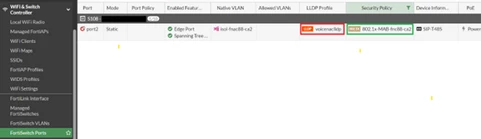

FortiSwitch Ports managed by FortiGate:

LLDP profile configured on FortiGate and assigned to FortiSwitch port2 (as shown in the above screenshot):

config switch-controller lldp-profile

    edit "voicefnaclldp"

        set med-tlvs inventory-management network-policy location-identification

        set auto-isl disable

            # config med-network-policy

                edit "voice"

                    set status enable

                    set vlan-intf "voicenac"

                    set assign-vlan enable

                    set dscp 46
            end
    next

end

Important Note:

This section only needs to be done if the phones are not statically set/tagged for the voice VLAN

For Phones tagged or statically set to a voice VLAN, follow this KB article: Technical Tip: Send a tagged VLAN via RADIUS

FortiNAC must first authenticate the device. Otherwise, it will not receive the LLDP profile.

FortiNAC must send the following 3 Attributes in the Access-Accept packet:

> tf /var/log/radius/radius.log

Wed Aug 10 19:57:13 2022 : Debug: (8) Sent Access-Accept Id 8 from 192.168.x.x:1812 to 192.168.x.x:34708 length 0

Wed Aug 10 19:57:13 2022 : Debug: (8) Tunnel-Type = VLAN

Wed Aug 10 19:57:13 2022 : Debug: (8) Egress-VLAN-Name = "1voicenac" <- VLAN 120 and 1 for tagged VLAN.

Wed Aug 10 19:57:13 2022 : Debug: (8) Tunnel-Medium-Type = IEEE-802

Wed Aug 10 19:57:13 2022 : Debug: (8) Finished request

Important Note.

RADIUS Access-request will always be sent from the FortiSwitch even if it is managed by FortiGate, so make sure to allow RADIUS traffic between FortiSwitch and FortiNAC.

FortiSwitch 802.1x status:

S108 # diagnose switch 802-1x status port2

port2 : Mode: mac-based (mac-by-pass enable)

           Link: Link up

           Port State: authorized: ( )

           Dynamic Allowed Vlan list: 120 <---- Assigned by FortiNAC via 'Egress-VLAN-Name' attribute (example: Egress-VLAN-Name = "1voicenac")

           Dynamic Untagged Vlan list: 188 <---- Assigned by FortiNAC via 'Egress-VLAN-Name' attribute (example: Egress-VLAN-Name = "2vlan188") or via (Tunnel-Private-Group-Id = 188).

           EAP pass-through : Enable

           EAP egress-frame-tagged : Enable

           EAP auto-untagged-vlans : Enable

           Allow MAC Move : Disable

           Dynamic Access Control List : Disable

           Quarantine VLAN (4093) detection : Enable

           Native Vlan : 50 <----- Native VLAN is not changed via RADIUS

           Allowed Vlan list: 120,120,188 <----- VLAN 120 is assigned by FortiNAC, while 120 is assigned by the LLDP profile.

           Untagged Vlan list: 188

           Guest VLAN :

           Auth-Fail Vlan :

           AuthServer-Timeout Vlan :

           Switch sessions 1/80, Local port sessions:1/20

           Client MAC Type Traffic-Vlan Dynamic-Vlan

           80:5e:c0:xx:xx:xx MAB 120 0 <----- LLDP voice profile applied VLAN 120.

           Sessions info:

           80:5e:c0:xx:xx:xx Type=MAB,,state=AUTHENTICATED,etime=3,eap_cnt=0                   params:reAuth=3600



Important note:
