Technical Tip: How to install or upload an older or New Agent Package to FortiNAC

  • August 1, 2022
  • 0 replies
  • 1137 views
Description This article describes how to install/upload an old FortiNAC Agent package to FortiNAC.
Scope FortiNAC, Legacy Agent Package, New Agent Package Persistent Agent, Dissolvable Agent.
Solution

The Persistent Agent directory is: /bsc/campusMgr/agent/packages/.



  1. Download the WINSCP and scp to FortiNAC, then go to: /bsc/campusMgr/agent/packages/ directory.

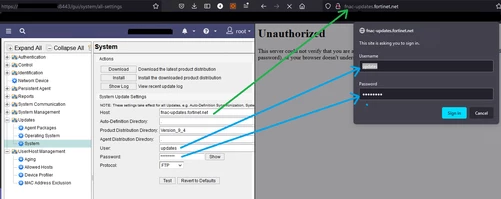

  2. Log in to the 'fnac-updates.fortinet.net' portal using the FortiNAC credentials that are available under System -> Settings -> Updates -> System.



System settings.png

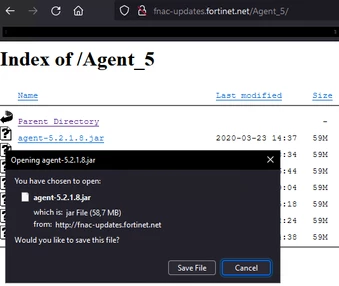

  1. Download any package needed (for example agent-5.2.1.8.jar).

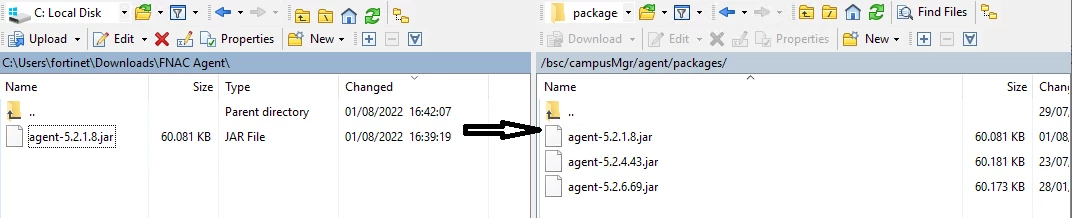

  2. In the WINSCP, locate the agent on the Windows device then drag and drop it to the FortiNAC package directory.

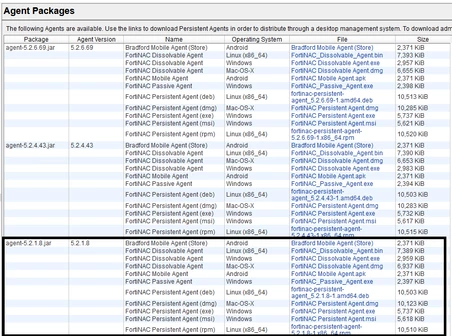

  3. Then go to Agent Packages under System -> Settings -> Updates.




Agent Package.PNG



Related article:
Technical Tip: How to manually upload an Agent .jar file to FortiNACOS/FortiNAC-F
