Technical Tip: How to create a corporate owned internal CA

  • July 25, 2024
  • 0 replies
  • 655 views
Description

This article describes how to act as a Certificate Authority (CA) and use a custom internal certificate, as long as all systems in the domain use the same certificate:

Determine FortiNAC Certificate Targets to Secure.
Scope FortiNAC.
Solution

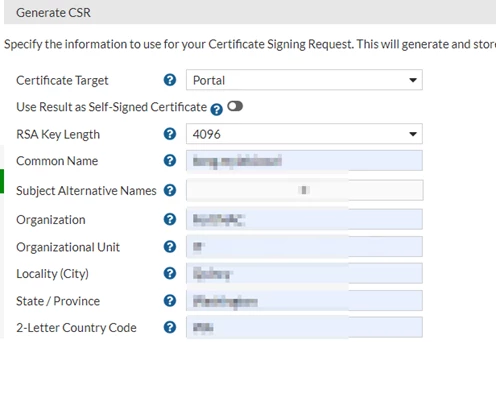

Step 1: Select Generate CSR from Certificate Management.


For example: Below is an example of a singular FortiNAC. In HA environments include the primary and secondary FQDN in SAN Step 5.

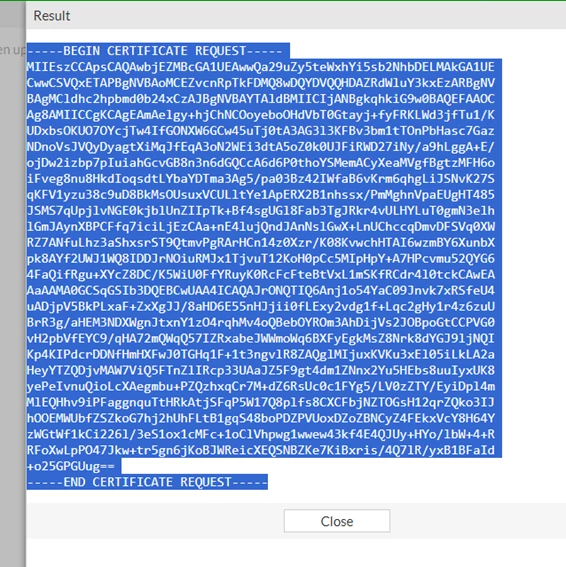

Step 2: Copy the output as shown in the example.

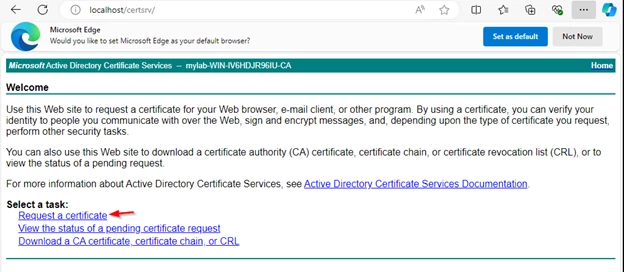

Step 3: Assuming certsrv is already set up, the next step would be the following:

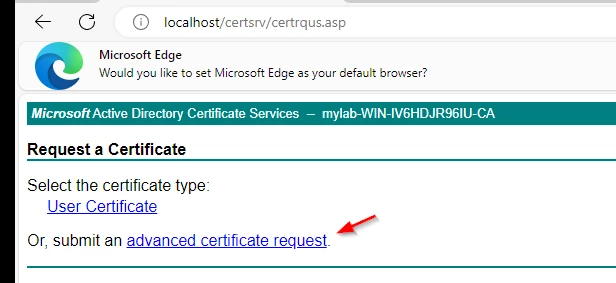

Step 4: Select the following.

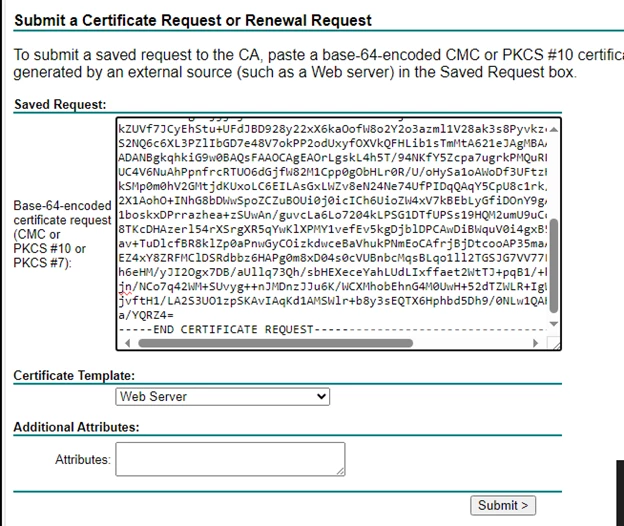

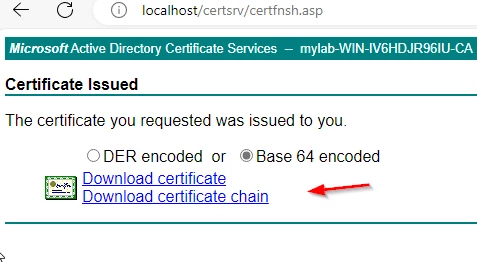

Step 5: Copy content from step 2. Press submit and then download the certificate chain as shown below.

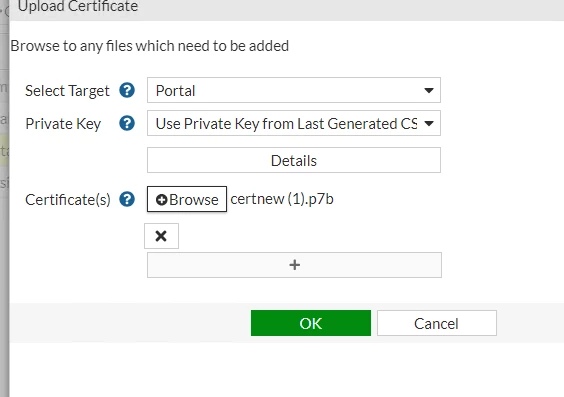

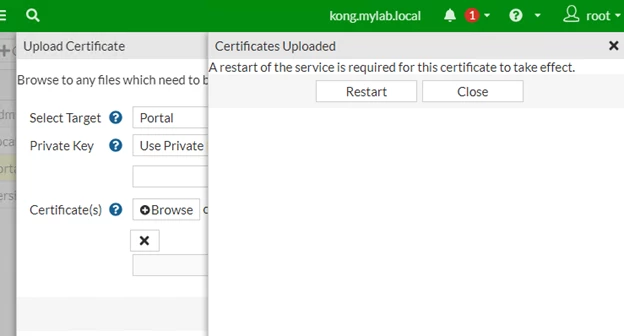

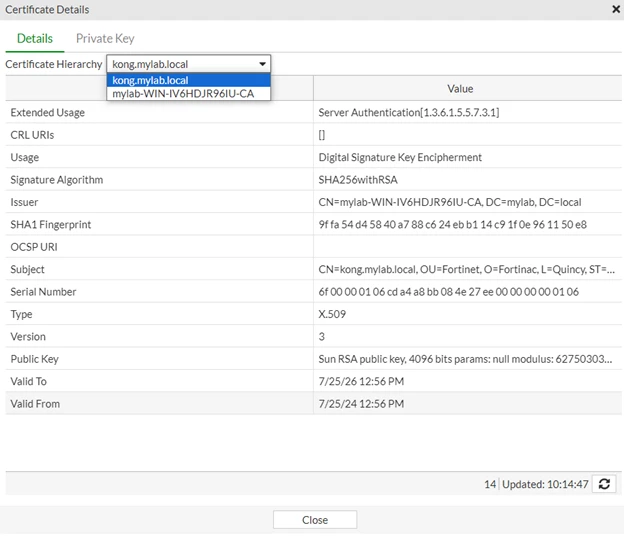

Step 6: Add a certificate to the desired target. A full internal certificate chain should now be in place.
