Technical Tip: How to configure FortiNAC to send SSO tags to a Downstream FortiGate in a Security Fabric

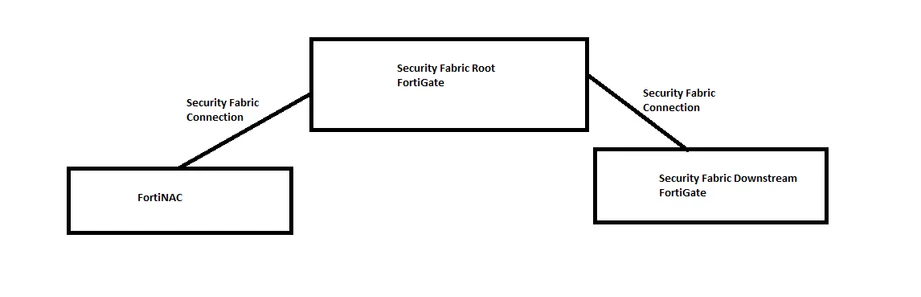

In a Security Fabric environment, if FortiNAC learns a host from a downstream FortiGate, It can send SSO tags to the downstream FortiGate. It is not necessary to establish a Security Fabric connection directly between FortiNAC and the Downstream FortiGate; FortiNAC can send SSO tags to the Downstream FortiGate via the Security Fabric root FortiGate connector.

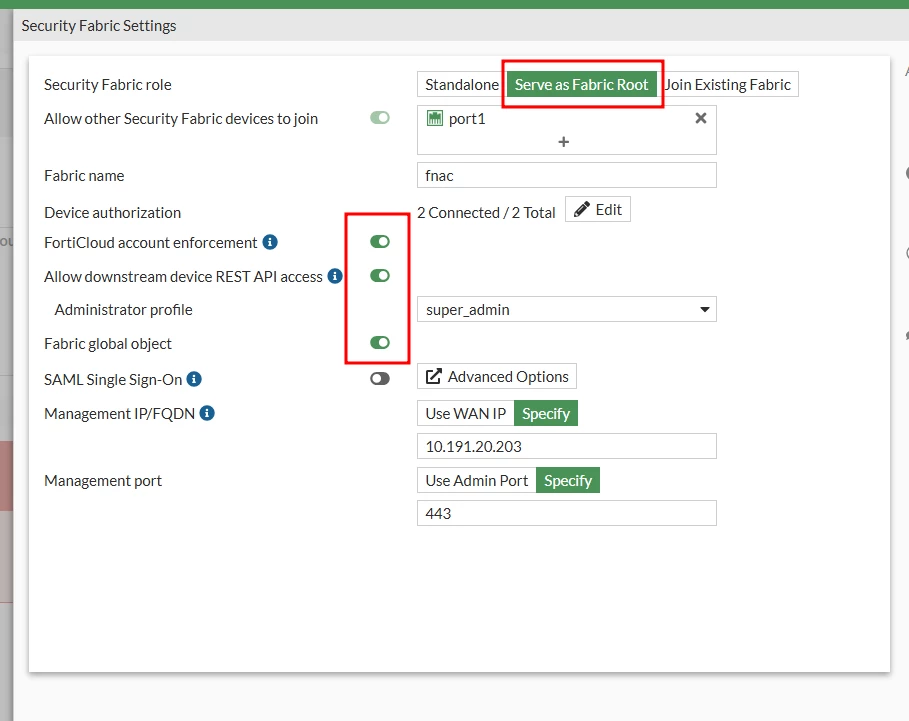

Configure Security Fabric Root FortiGate.

The Security Fabric root FortiGate configuration in CLI is like the one below.

config system csf
    set status enable
    set uid "ce0d2c9ac0961f0d9e9f98cbc11582f2"
    set group-name "fnac"
    set downstream-access enable
    set downstream-accprofile "super_admin"
        config trusted-list
            edit "FNVXXXXXXXXXXXX"
                set serial "FNVXXXXXXXXXXXX"
                set index 2
            next
            edit "FGXXXXXXXXXXX"
                set serial "FGXXXXXXXXXXXX"
                set index 1
            next
        end
end

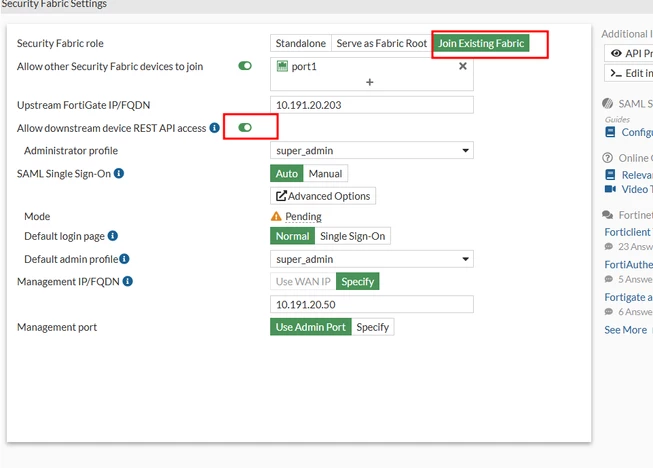

 Configure Security Fabric downstream FortiGate.

The Security Fabric downstream FortiGate configuration in CLI is like the one below.

config system csf

    set status enable

    set uid "4863100b4cbfc383d3ff39380a2b0c1e"

    set upstream "10.191.20.203"

    set downstream-access enable

    set downstream-accprofile "super_admin"

end

Configure FortiNAC security Fabric connector with Root FortiGate.

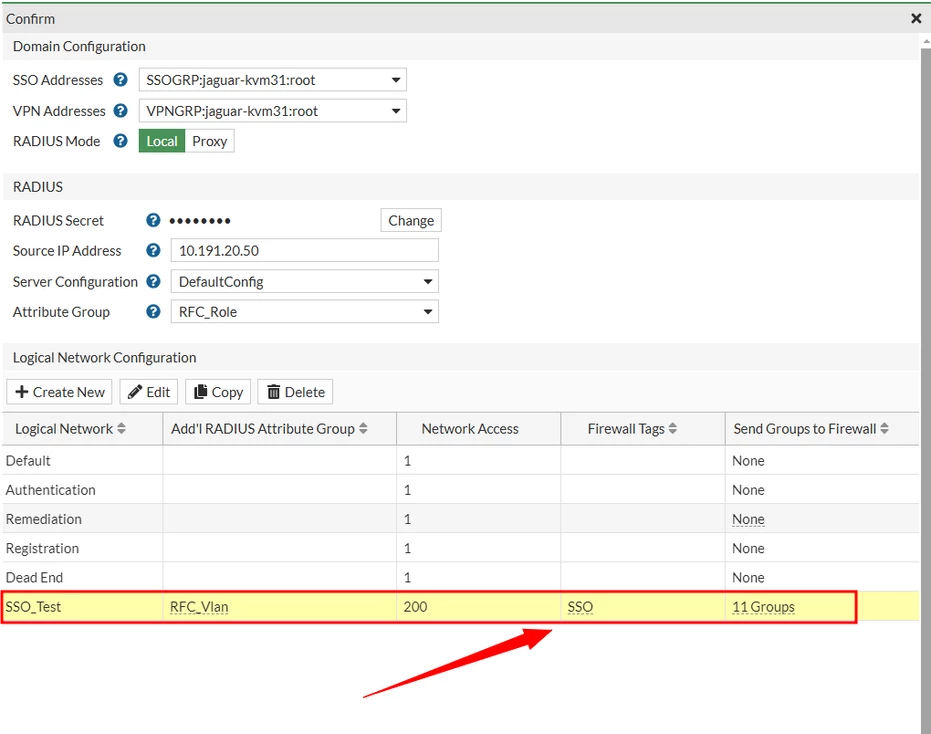

Configure Downstream FortiGate configuration in FortiNAC.

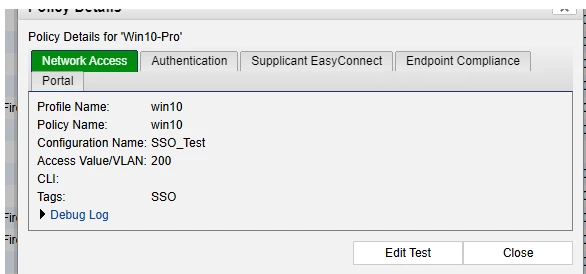

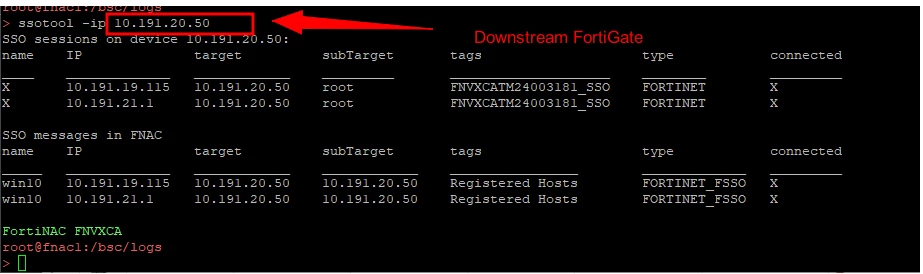

Whenever a host is learned from Downstream FortiGate and matches the appropriate Network Access Policy, FortiNAC sends SSO tags to Downstream FortiGate.
