Technical Tip: Enable 'Secure Port' settings when port security is configured in the modeled Switch
Description
This article describes how to enable Secure Port settings in FortiNAC when port security is configured in the modeled switch.
Solution
If port-security is enabled in the modeled Switch, it is necessary to enable secure ports in FortiNAC and verify switch port configuration.
Switch example:
- Select the unit and select 'Model Configuration'.
This article describes how to enable Secure Port settings in FortiNAC when port security is configured in the modeled switch.
Solution
If port-security is enabled in the modeled Switch, it is necessary to enable secure ports in FortiNAC and verify switch port configuration.
Switch example:
interface GigabitEthernet1/0/3- Go to GUI and locate the switch under the container.
.....
switchport mode access
switchport port-security maximum 5
switchport port-security violation restrict
switchport port-security aging type inactivity
switchport port-security
.....

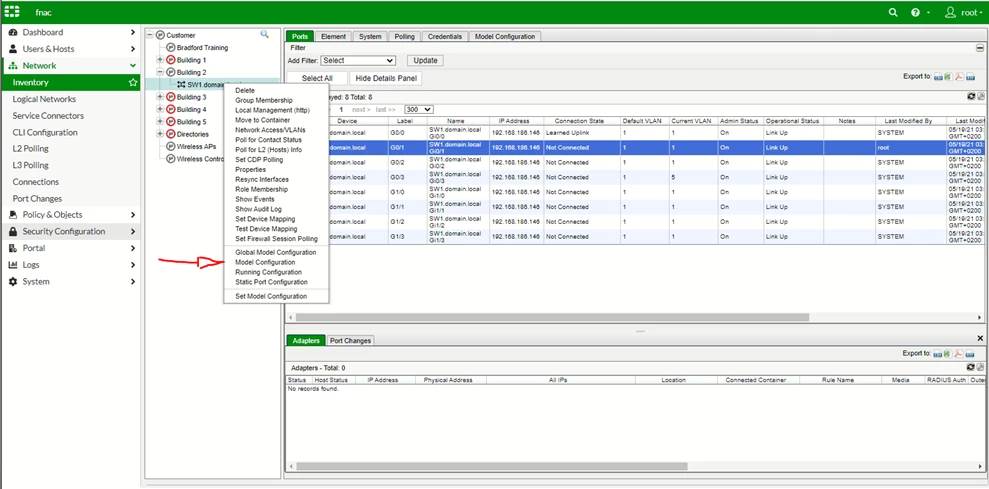

- Select the unit and select 'Model Configuration'.
Another window will open.

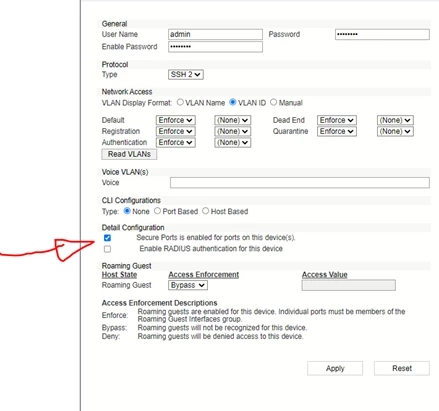

Under 'Detail Configuration', select 'Secure Ports' and 'Apply':
Under 'Detail Configuration', select 'Secure Ports' and 'Apply':
