Technical Tip: Dissolvable agent prompts for server name during remote registration

Description

This article describes the use of Dissolvable Agent during the remote registration process and the prompt that appears to input the server name.

Later agent versions require SSL certificate authentication and, therefore, need the application server's hostname to connect.
The dissolvable agent uses SRV queries in an attempt to resolve the hostname. The application server DNS configuration comes with built-in SRV records, so the dissolvable agent's name resolution is resolved when the host is isolated.

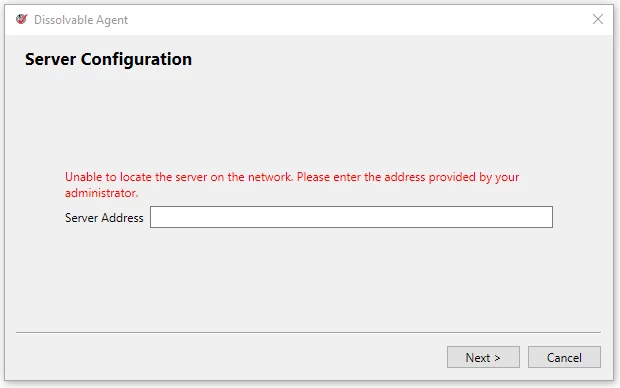

When using public DNS or other DNS where these SRV records are not configured, the SRV queries are not answered. Consequently, the agent requires the end user to fill in the application Server URL, as shown below:

Scope

FortiNAC, Dissolvable Agent.

Solution

Provide end-user instructions in the portal page to enter the server's URL when prompted, using the format https://hostname.domain.tld

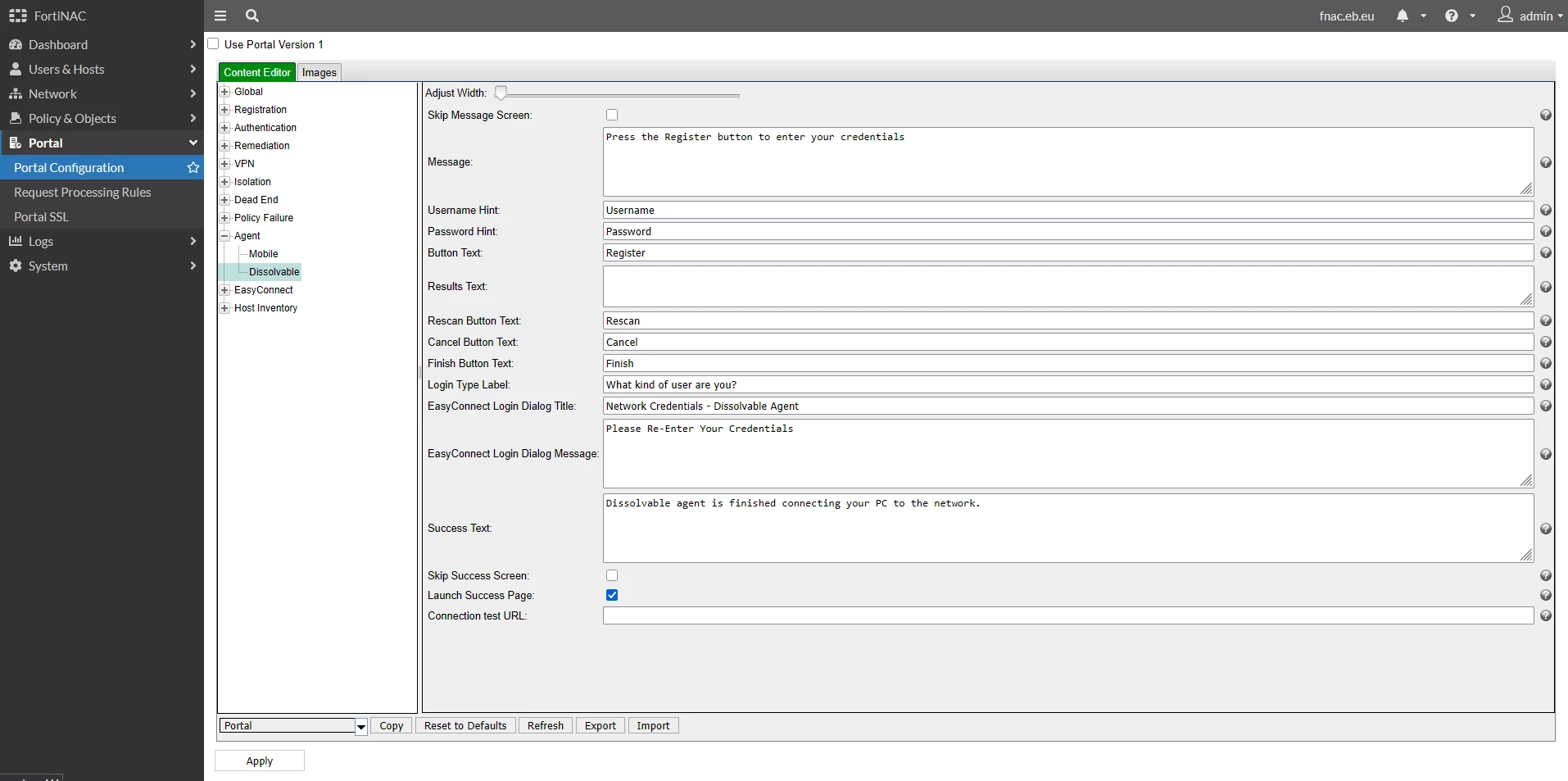

The portal page can be modified by navigating to Portal -> Portal Configuration.

 
The end user will be prompted to download and run a small program that will be able to verify that the computer meets the network policies. When prompted for the Server URL, copy and paste the 'Fully-Qualified Host Name' that is configured in Portal -> Portal SSL, for example: 'https://hostname.domain.tld' (without quotes) into the dialog.
