Technical Tip: Create event to Alarm Mapping to change host role
Description
This article describes how to create event to Alarm Mapping to change host role when role is changed due to compliance policy action changing role.
Related document.
https://docs.fortinet.com/document/fortinac/9.1.0/administration-guide/225131/add-or-modify-alarm-mapping
Solution
When the compliance policy is set up to change the host role, it will not change it back on a rescan.
It is necessary to have an event to Alarm mapping setup to see the event and make the change on the host.
FortiNAC 9.x.
1) Create Mapping in Logs -> Event & Alarms and select 'Mappings'.
This article describes how to create event to Alarm Mapping to change host role when role is changed due to compliance policy action changing role.
Related document.
https://docs.fortinet.com/document/fortinac/9.1.0/administration-guide/225131/add-or-modify-alarm-mapping
Solution
When the compliance policy is set up to change the host role, it will not change it back on a rescan.
It is necessary to have an event to Alarm mapping setup to see the event and make the change on the host.
FortiNAC 9.x.
1) Create Mapping in Logs -> Event & Alarms and select 'Mappings'.

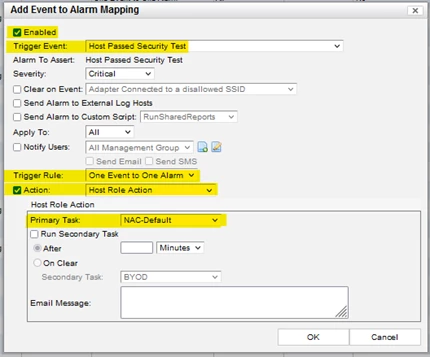

2) Select 'Add'.
3) Check 'Enabled' if not already.
4) Trigger Event = Host Passed Security Test.
5) Select other options as necessary.
6) Trigger Rule = One Event to One Alarm.
7) Action = Host Role Action.
- Primary Task = NAC-Default.
3) Check 'Enabled' if not already.
4) Trigger Event = Host Passed Security Test.
5) Select other options as necessary.
6) Trigger Rule = One Event to One Alarm.
7) Action = Host Role Action.
- Primary Task = NAC-Default.
8) Select 'Ok'.
FortiNAC 8.x.
1) Create Mapping in Logs and select 'Event to Alarms Mappings'.
FortiNAC 8.x.
1) Create Mapping in Logs and select 'Event to Alarms Mappings'.

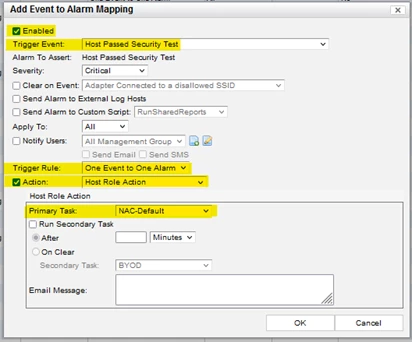

2) Select 'Add'.
3) Check Enabled if not already.
4) Trigger Event = Host Passed Security Test.
5) Select other options as necessary.
6) Trigger Rule = One Event to One Alarm.
7) Action = Host Role Action.
- Primary Task = NAC-Default.
3) Check Enabled if not already.
4) Trigger Event = Host Passed Security Test.
5) Select other options as necessary.
6) Trigger Rule = One Event to One Alarm.
7) Action = Host Role Action.
- Primary Task = NAC-Default.
8) Select 'OK'.
