Technical Tip: Automatic Remediation/Quarantine of hosts marked as 'AtRisk'

Description

This article describes what needs to be enabled and configured to enable automatic Remediation/Quarantine of hosts marked as 'AtRisk'.

Scope

FortiNAC.

Solution

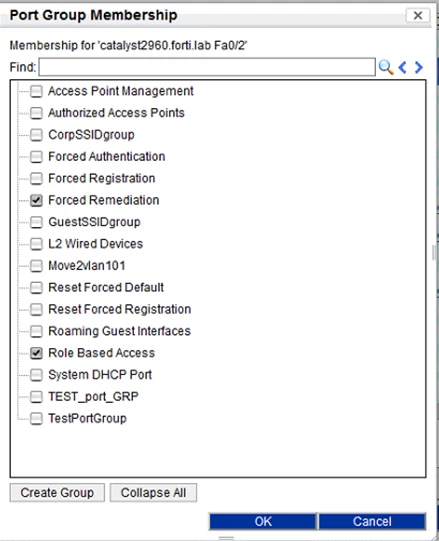

1. Verify that ports are members of the 'Forced Remediation' and 'Role Based Access' groups.

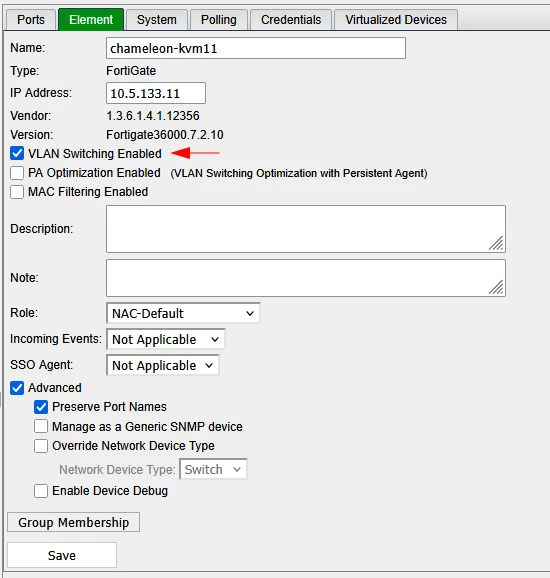

2. 'VLAN Switching Enabled' needs to be checked on the switch in the Inventory view under the 'Element' tab.

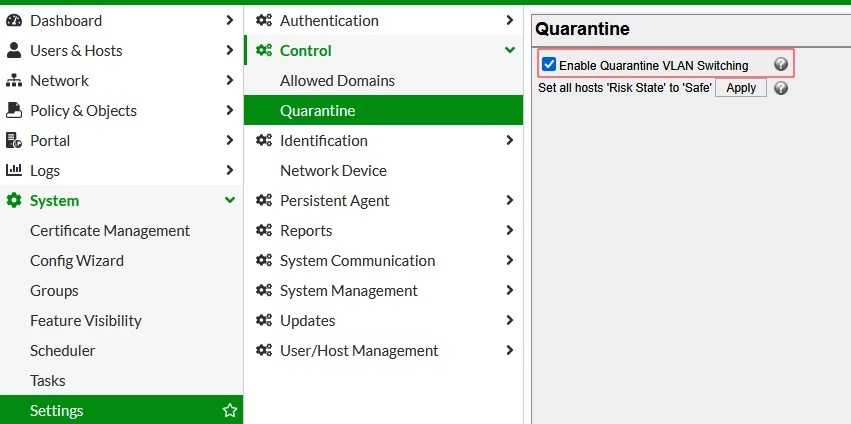

3. 'Enable Quarantine VLAN Switching' needs to be checked in System -> Settings -> Control -> Quarantine.

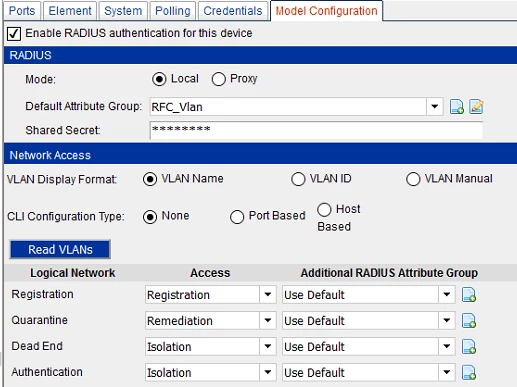

4. VLAN for 'Quarantine' is specified on the switch in 'Model configuration'.

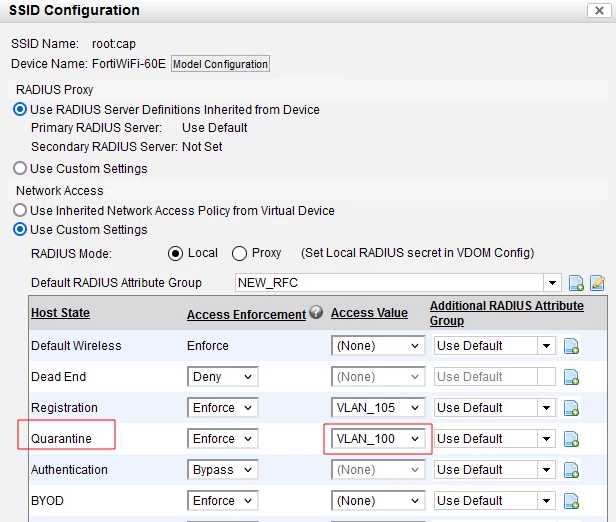

5. In the case of SSID configuration, specify the Quarantine VLAN by editing the SSID configuration under the SSID tab.
