Troubleshooting Tip: Zero-Touch-Provisioning (ZTP) auto-linking device failed due installing unsupported syntax

Description

This article describes how to troubleshoot when performing a Zero-Touch-Provisioning (ZTP), an auto-linking device failed due to installing unsupported syntax in FortiGate.

Example failed error, configuration failed to install:

------- Start to retry --------

FGT $  config switch-controller ptp settings
FGT (settings) $  unset mode
FGT (settings) $  end
FGT $  config system interface
FGT (interface) $  edit "modem"
FGT (modem) $  unset distance
cannot unset read-only setting.
Command fail. Return code -7
FGT (modem) $  next
FGT (interface) $  end
FGT $  config system email-server
FGT (email-server) $  unset reply-to
FGT (email-server) $  end
FGT $  config dlp data-type
FGT (data-type) $  edit "credit-card"
FGT (credit-card) $  set verify "builtin)credit-card"
Regex check fail: Regex compile failed at offset 7: unmatched parentheses.
node_check_object fail! for verify builtin)credit-card

value parse error before 'builtin)credit-card'
Command fail. Return code -39
FGT (credit-card) $  next
FGT (data-type) $  end

---> generating verification report
(vdom root: switch-controller ptp settings:mode)
remote original: disable
to be installed:

(vdom root: dlp data-type "credit-card":verify)
remote original: "built-in"
to be installed: "builtin)credit-card"

<--- done generating verification report

install failed

Scope

FortiManager, FortiGate.

Solution

This scenario happened when the FortiGate version received from the box is lower than the FortiManager version (or ADOM).

For example:

FortiGate version v7.2.8 and FortiManager version v7.4.8, with ADOM v7.4.

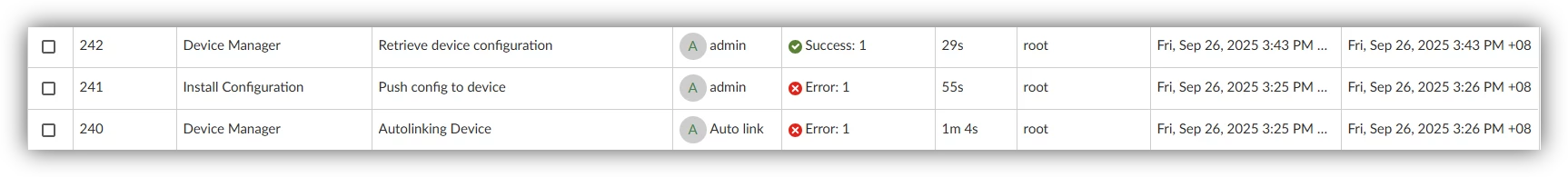

It will push out the default configuration on v7.4 to v7.2 and causing it to fail. But all assigned Template configurations are still pushed out, and the status in Device Manager for Config Status will show as Conflict.

Even though 'Enforce Firmware Version' is enabled to upgrade to v7.4.x, it will still fail due to an installation error.

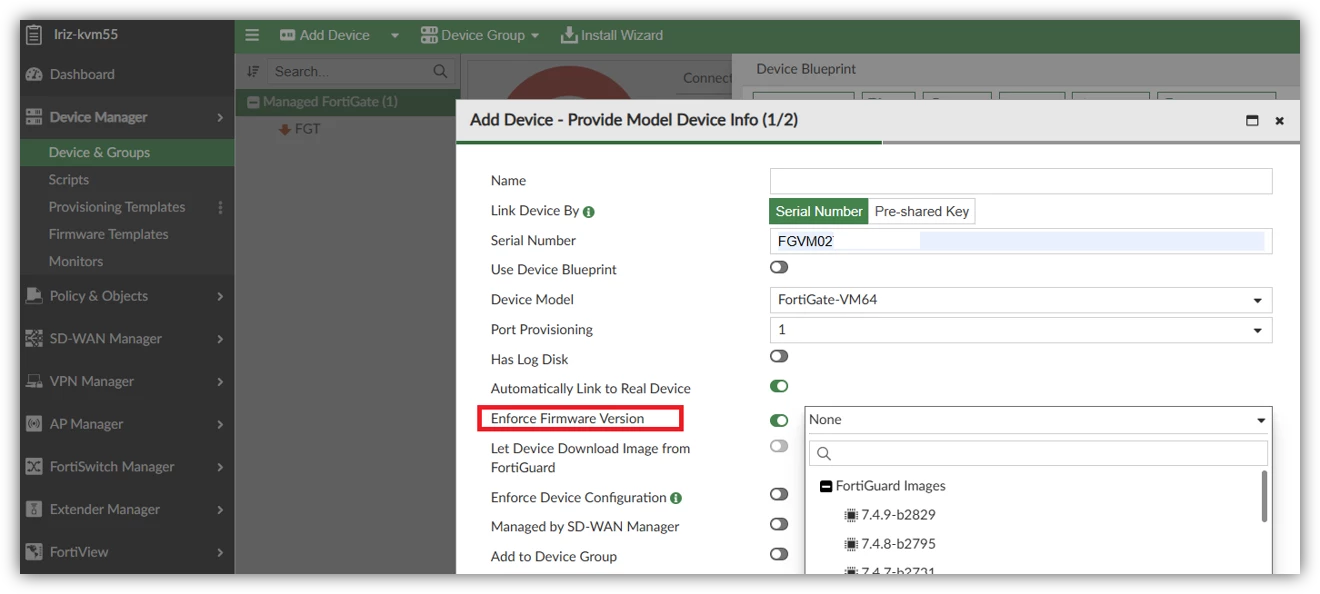

Add Device -> Add Model Device -> Enforce Firmware Version, or use Device Blueprint.

Basically, the devices are already connected with FortiManager and can be managed from there.

To resolve this, proceed to perform a 'Retrieve under Device Manager'.

Go to Device Manager -> Managed Devices -> Select the FortiGate -> Dashboard -> Summary -> 'Configuration and Installation' widget -> Revision -> select the menu icon -> Retrieve.

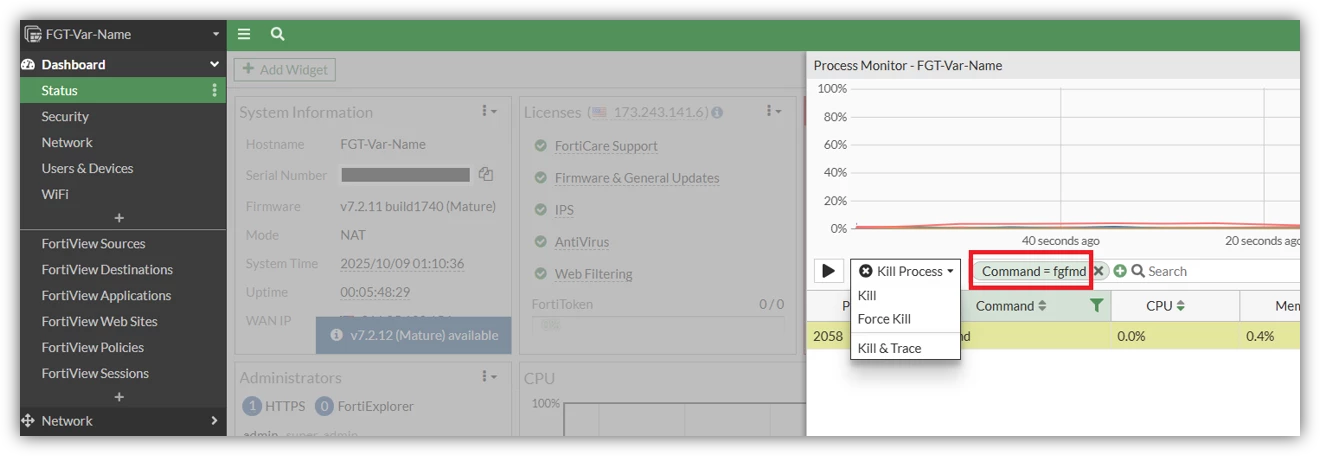

If the device shows as Offline or Down status in Device Manager, it is possible to proceed to kill the fgfmd process: Technical Tip: How to view, verify and kill the processes consuming more memory in the GUI from the FortiGate itself, and perform the Retrieval again after that.
