Troubleshooting Tip: Unable to configure OSPF passive interface from router settings
| Description | This article describes the cause of an issue where it is not possible to configure an OSPF passive interface in certain versions. |
| Scope | FortiManager v7.4. |
| Solution | Add an OSPF passive interface configuration from Device Manager -> Router -> OSPF -> Advanced Options, but the FortiGate configuration status does not change to Modified.

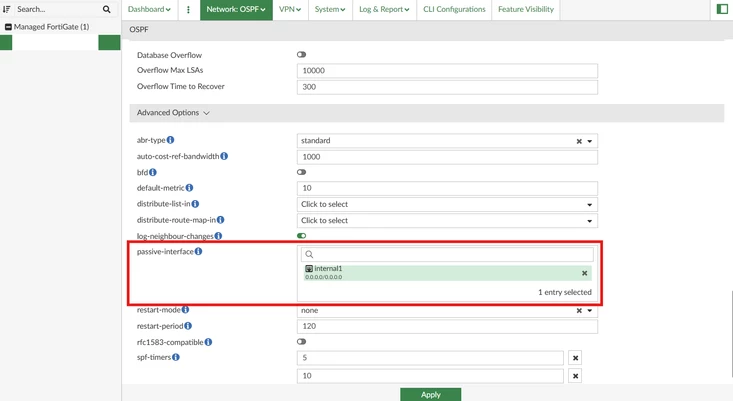

Test scenario: Add only an OSPF passive interface configuration entry from Device Settings -> Router -> OSPF -> Advanced options.

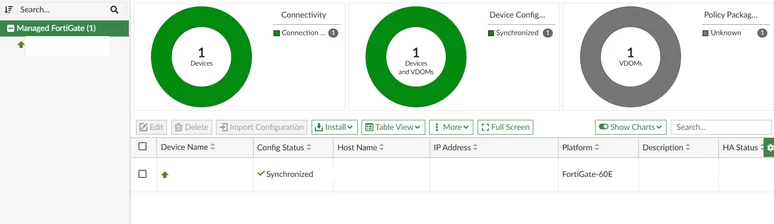

After, return to Device & Groups and confirm that the FortiGate configuration status does not show Modified.
Root cause: There are two places to configure OSPF passive interfaces, which leads to a mismatch in status reporting. The two locations are Device Manager -> FortiGate Dashboard -> Router -> OSPF -> Advanced options and Device Manager -> FortiGate Dashboard -> CLI Configurations -> Router -> OSPF.
Workaround: Configure the passive interface when creating the OSPF interface, or configure it from the Device Manager -> FGT Dashboard -> CLI Configuration -> Router -> OSPF.

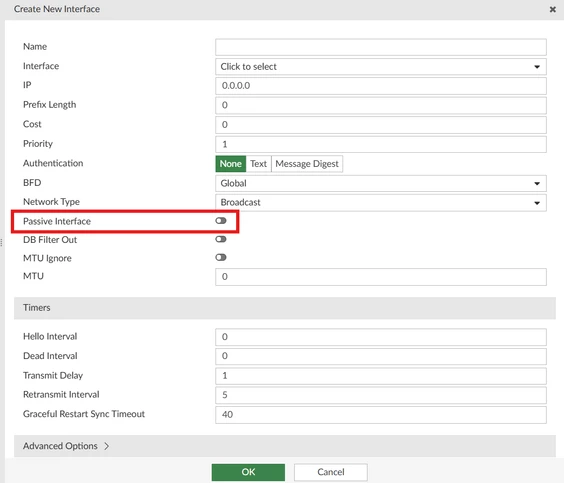

OSPF interfaces configuration:

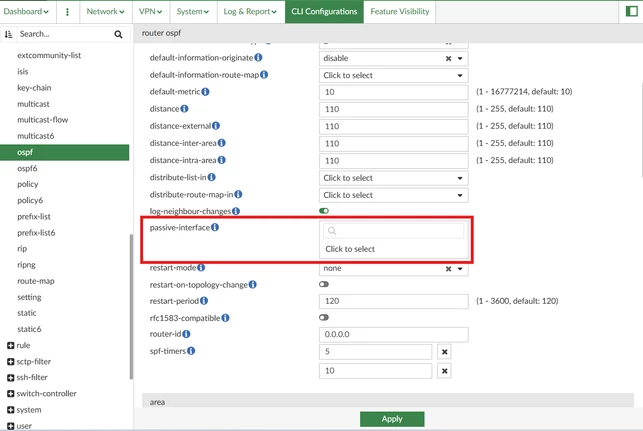

Navigate to Device Manager -> FortiGate Dashboard -> CLI Configuration -> Router -> OSPF:
Starting from v7.4.7, the passive interface setting under Advanced options was removed because it conflicted with the passive interface setting within the OSPF interface configuration. |
