Troubleshooting Tip: Troubleshooting the FortiManager SD-WAN monitor
Description
This article describes the SD-WAN monitor feature and how to troubleshoot the issues related to them.
Scope
FortiManager.
Solution
After the configuration of the SD-WAN template, the units added in the template can be monitored by Device Manager -> SD-WAN -> Monitor.

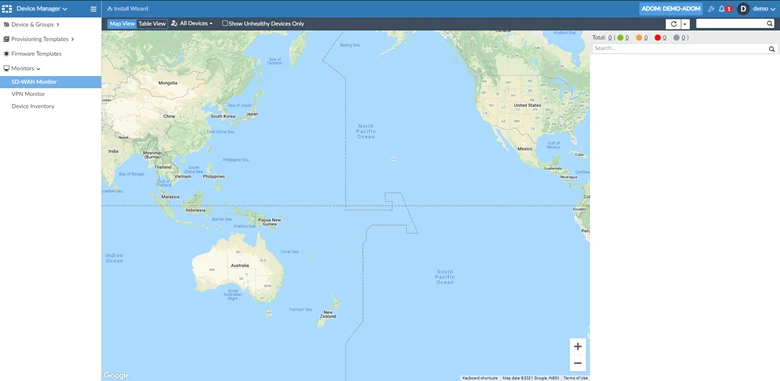

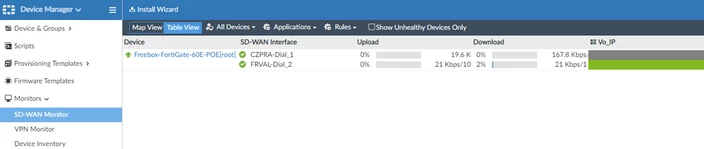

- The data can be monitored in 2 ways: 'Map View' and 'Table View'.
- By default, the historical data is disabled. By enabling 'sdwan-monitor-history', historical data of the last 8 days can be fetched.
config system admin setting
set sdwan-monitor-history enable
end
Note:
This setting should be kept disabled if it is affecting CPU performance.
-
Another solution worth attempting is to reduce the amount of history to a smaller value. A smaller database should generally improve performance, but not sure how much gain this would make.
config system admin-settings
set rtm-max-monitor-by-days <value>
end
Troubleshooting:

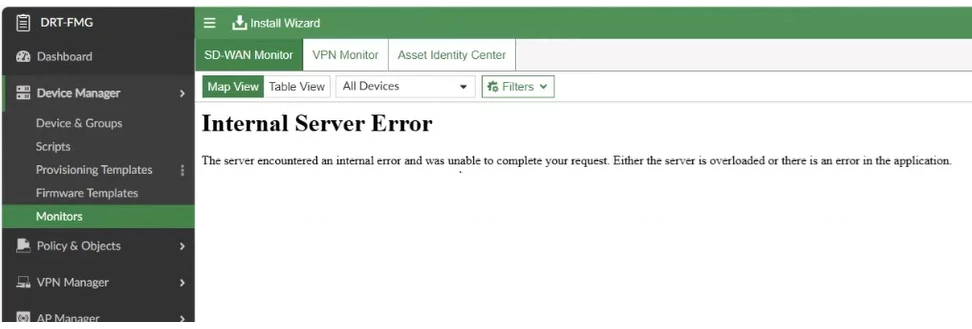

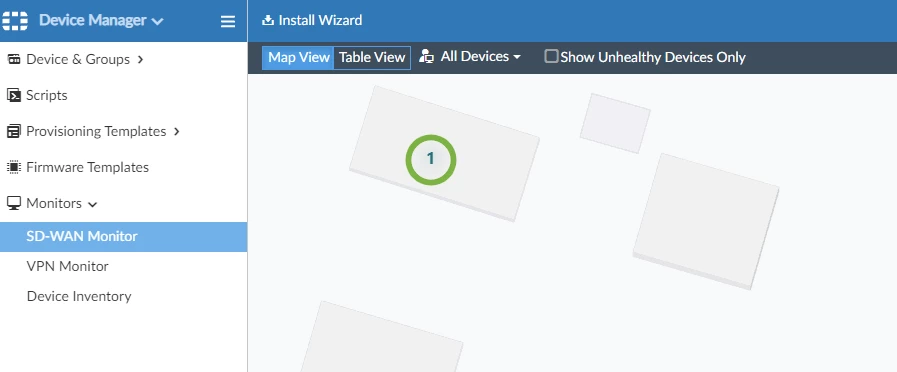

- For issues in the Map view visibility, or reported "Internal Server Error" on the page, first verify if it is possible to reach the map server:
diagnose system mapserver test
execute ping mapserver.fortinet.com
Example output:
* Host mapserver.fortinet.com:443 was resolved.
* IPv6: (none)
* IPv4: 208.91.114.183
* Trying 208.91.114.183:443...
* Connected to mapserver.fortinet.com (208.91.114.183) port 443
<...>
* Connection #0 to host mapserver.fortinet.com left intact
Test download pkginfo.json successful
If the map server is not reachable, ensure the DNS is resolving the domain and the port is open and allowed.
- Make sure that in the FortiGate, the following settings are configured:
- From the FortiGate CLI:
Performance SLA logs are generated at a specific time period as defined by the following commands:
config system virtual-wan-link
config health-check
edit <name>
set sla-fail-log-period 30
set sla-pass-log-period 60
next
end
end
Also, verify whether the monitored interface is set with the role of WAN. Go to Network -> Interfaces -> Edit -> Role -> WAN and select 'Apply'.
- FortiManager Debug Chrome and CLI: FortiManager/FortiAnalyzer Debugger 5.0.
config system dm
set fgfm-sock-timeout 90
set fgfm_keepalive_itvl 30
end
Then restart the FGFM tunnel:
diagnose sys process killall fgfm
FortiManager Debug:
diagnose debug reset
diagnose debug service sys 255
diagnose debug en
Refresh the problematic SD-WAN page.
diagnose debug disable
Clear mapserver cache:
diagnose system mapserver clearcache <----- Introduce latest firmware v7.6.
