Troubleshooting Tip: Service status shows as 'Pending' for FortiGate HA under FortiGuard
Description

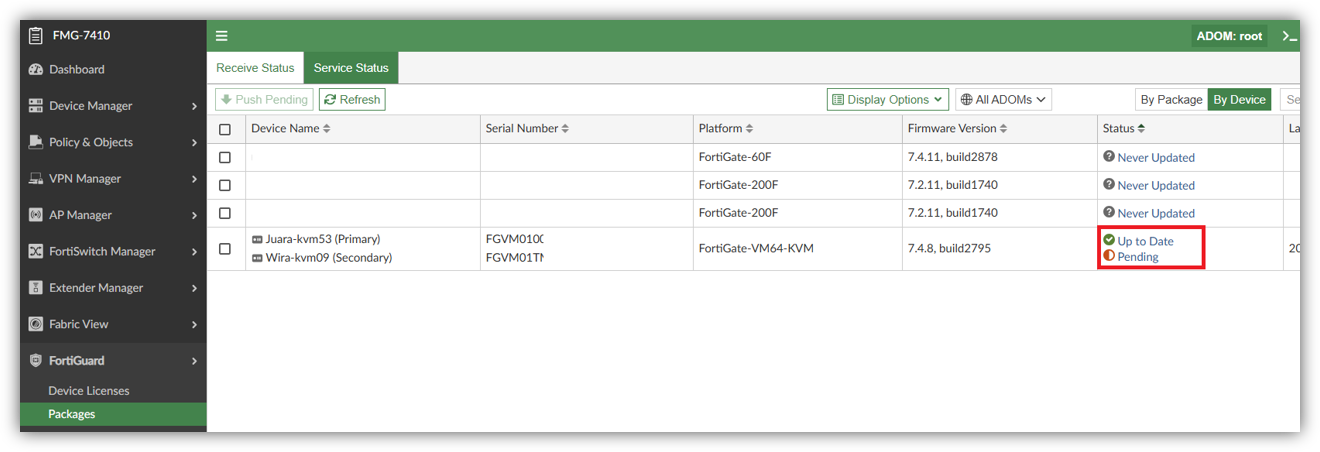

This article describes how to troubleshoot a status that persistently shows as Pending for an HA FortiGate under FortiGuard -> Packages -> Service Status.
Scope
FortiManager and FortiGate.
Solution
Make sure FortiGate has a valid license with the same subscriptions for the Primary and Secondary unit(s), if High Availability was configured.
To resolve connectivity or configuration issues when FortiManager acts as a FortiGuard server for FortiGate, see this article: Technical Tip: FortiGate configuration for using FortiManager as local FDS.

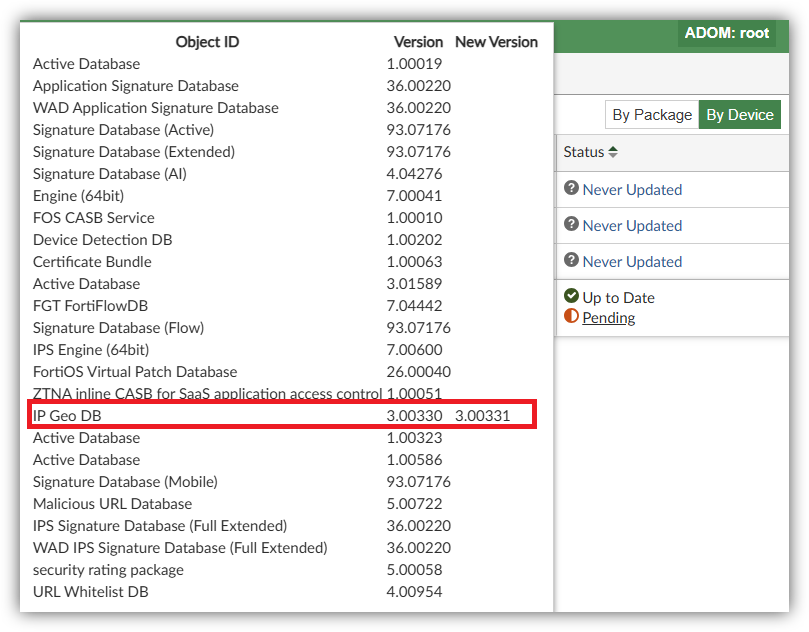

Hover over the Pending status to understand which Object ID shows the difference.
Alternatively, view this information in the CLI by using the following command:
# diagnose fmupdate show-dev-obj
DEVICE(SN:FGVM01000xxxx):
ID Status DeviceVer ServerVer PreferVer License LicenseType Description FMGI
-- ------ --------- --------- --------- ------- ----------- ----------- ----
07004000IPGO00000 up-to-date 00003.00331 00003.00331 00000.00000 valid FMWR GeoIP Country Level IP Geo DB
DEVICE(SN:FGVM01TMxxx,flags:[ha-slave]):
ID Status DeviceVer ServerVer PreferVer License LicenseType Description FMGI
-- ------ --------- --------- --------- ------- ----------- ----------- ----
07004000IPGO00000 pending 00003.00330 00003.00331 00000.00000 valid FMWR GeoIP Country Level IP Geo DB
When performing an 'execute update-now' command on FortiGate with the debug command 'diagnose debug application update -1' enabled, note the difference of the IP GEO DB nomenclature with AV Encyclopedia (AVEN), Advanced Malware Protection (AVDB) and others.
upd_cfg_extract_sfas_version[789]-version=07004000SFAS00000-00005.00058-2604150208
pack_obj[186]-Packing obj=Protocol=3.2|Command=Update|Firmware=FGVMK6-FW-7.04-2795|SerialNumber=FGVM010xxx|UpdateMethod=0|AcceptDelta=1|Uid=04cf162ee63f483a833bb745328c7c84|
DataItem=
07004000AVEN02800-00007.00041-2503282205*
07004000AVDB00201-00093.07176-2605142131*
07004000AVDB00701-00093.07176-2605142131*
07004000AVDB01901-00004.04276-2605142145*
00000000FCNI00000-00000.00000-0000000000*
00000000FDNI00000-00000.00000-0000000000*
07004000FLEN07600-00007.00600-2602242019*
07004000IPGO00000033312605051048* >>>>>>>>>>>>>>>>>>>>>> IP GEO DB nomenclature
07004000FFDB02008-00007.04442-2605131234*
07004000UWDB00100-00004.00954-2605140202*
07004000CRDB00000-00001.00063-2603200107*
07004000MMDB00101-00093.07176-2605142135*
The nomenclature format is outdated and cannot be sent to FortiManager. Resolve this by removing the um2 database with the following command:
diagnose fmupdate fgt-del-um-db um2.db

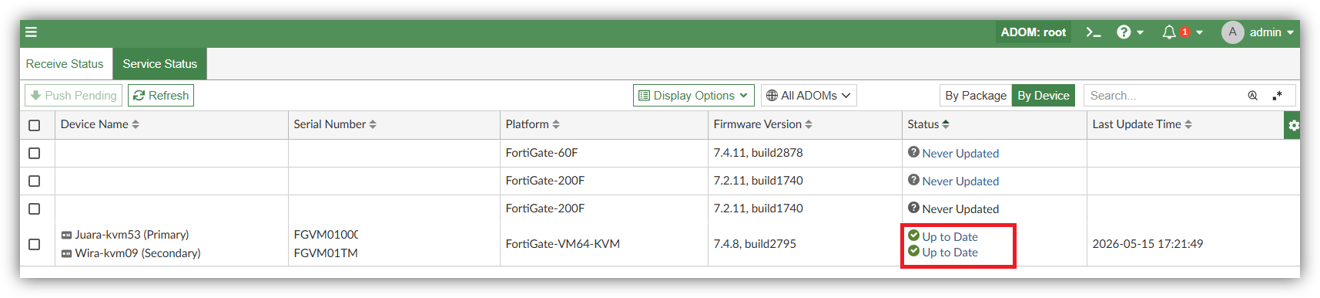

This command only removes device object info and will not reboot the FortiManager. Once the command has run, perform the manual update from FortiGate again and check the Service status afterward.
