Troubleshooting Tip: How to troubleshoot Install Preview empty for VPN manager setting at FortiManager

  • February 20, 2025
  • 0 replies
  • 456 views
Description This article describes how to troubleshoot Install Preview empty for the VPN manager setting at FortiManager.
Scope FortiManager.
Solution

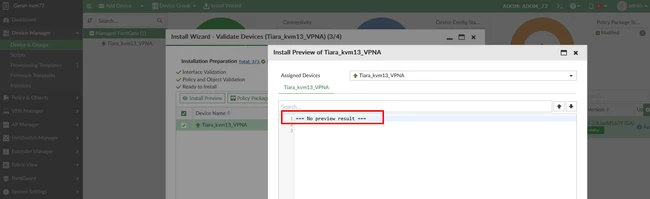

During the policy package installation, the Install Preview shows 'No preview result'.

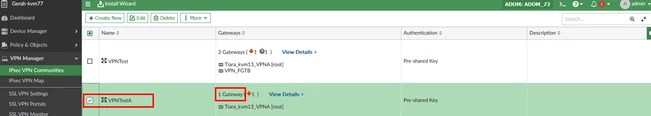

At FortiManager (VPN manager), the VPN Profile only has 1 Gateway.

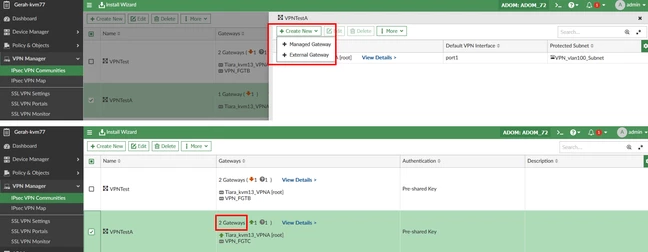

It requires at least 2 Gateways, another device can be either a Managed Gateway or an External Gateway.

Managed Gateway, is the device that is managed by FortiManager.

External Gateway is the device that is NOT managed by FortiManager.

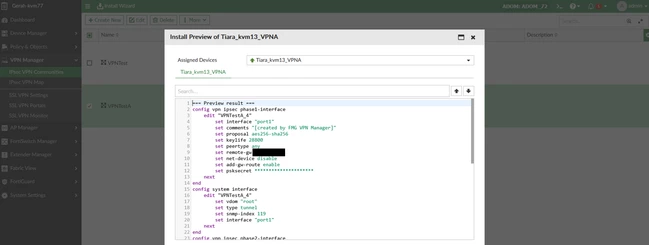

After adding the second Gateways, the install preview will be able to show the VPN Manager configuration.
