Troubleshooting Tip: How to resolve the FortiManager error 'Object already exists in the ADOM' on Global Database association

In FortiManager with the Multi-ADOM feature enabled (a document explaining this feature is provided at the end of this article), navigate to Global Database ADOM -> Policy & Package. There is a Global Database and other Global Policy Packages are eventually created.

Try to push one or more Policy Packages to an ADOM:

1. Select the '+' button on the left of Policy Package name and go to the Assignment section. Select the '+ Add ADOM' button, select the Destination ADOM, and select Policy Packages (Global, one, or otherwise).
2. Select the 'Save' button.
3. Select the Assign action and select the 'Start to Assign' button.

A task will appear in a window with Report Progress.

If the task fails and shows the error 'Local Adom already has object fw_addgrp name: xxx' (where 'xxx' is the object name), there are two possible scenarios:

• If the object exists, it is necessary to delete it.
• If the object does not exist, it is necessary to proceed with the steps described below in this article.

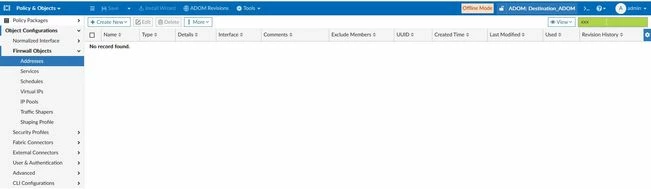

To search for the 'xxx' object on the Destination ADOM, navigate to Destination ADOM -> Policy & Objects -> Objects Configuration -> Firewall Objects -> Addresses:

The issue can be solved by resetting the UUID of the object 'xxx' on the CDB database (which is the object configuration database).

To do this:

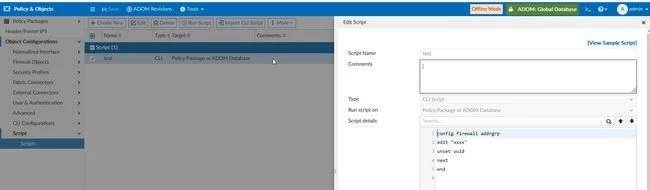

1. Create and run a global script by navigating to Global Database -> Policy & Objects -> Object Configurations -> Script -> Scripts -> + Create New.
2. Add the following script text:



config firewall addrgrp

edit "xxx"

unset uuid

next

end

3. Select the 'Run Script' button, select the window that appears in the Policy Package with the issue, and select the 'Run Now' button.



Note:

It Is necessary to lock ADOMs before undertaking the steps described. For an explanation, see this section of the FortiManager administration guide.

Related documents:

Checking FortiManager databases - FortiManager administration guide.

Managing policy packages - FortiManager administration guide.

Checking FortiManager databases - FortiManager upgrade guide.

Technical Tip: How to check FortiManager database integrity prior to upgrade.

cdb - FortiManager CLI reference.
