Troubleshooting Tip: How to include more than one source IP for EMS connector

Forum|Forum|1 year ago
December 5, 2024
0 replies
424 views

Description

This article describes how to include more than one source IP for EMS connector

set name "FortiEMS"
set server "fortiems.XXX.XXX"
set source-ip 172.21.16.1 <----- Source IP different with another FortiGate.
set pull-malware-hash disable
set capabilities fabric-auth silent-approval websocket websocket-malware push-ca-certs common-tags-api tenant-id
set status enable
set serial-number "FCTEMSXXXXXX"
set tenant-id "00000000000000000000000000000000"
set ca-cn-info "C = US, ST = California, L = Sunnyvale, O = Fortinet, OU = Certificate Authority, CN = support, emailAddress = support@fortinet.comFCTEMS8824XXXXXX"

end

Scope

FortiManager, EMS and FortiGate.

Solution

As FortiManager uses one connector and shares with all FortiGate, the configuration needs to be the same from the connector.

However, if the source IP Address is different when performing an installation, the FortiManager will overwrite the other source IP from another FortiGate.

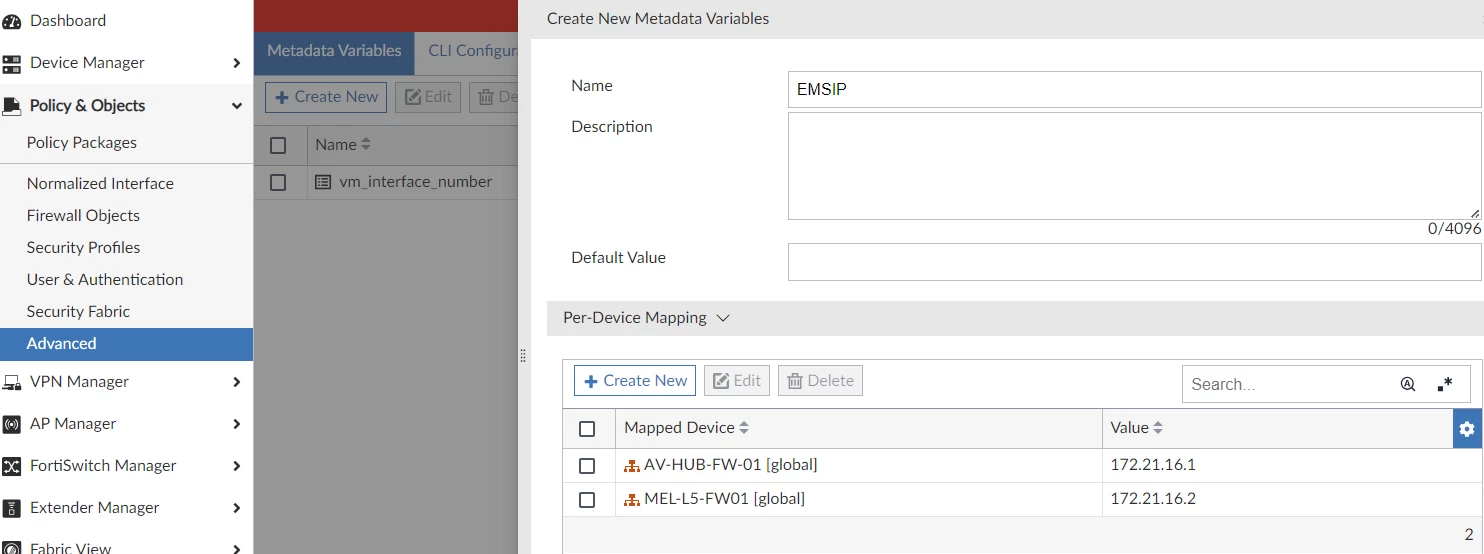

To ensure the FortiManager acknowledges both source IPs from different FortiGate, create a meta variable under Policy&Object -> advanced -> Create New and assign per-device Mapping.

Screenshot 2024-12-05 114453.png
