Troubleshooting Tip: How to eliminate random FortiManager Auto-link failures with provisioned devices using FortiZTP
Description
This article describes an Auto-link failure that may affect FortiGates newly provisioned through ZTP.
Scope
FortiManager.
FortiGate.
Solution
Usually Auto-Link failures can be sensitive to any connectivity issue, like provisioning a device in a remote location with an old internet circuit technology, that might affect the connection between the device and FortiManager, or even any situation which might delay the response to the FortiManager.

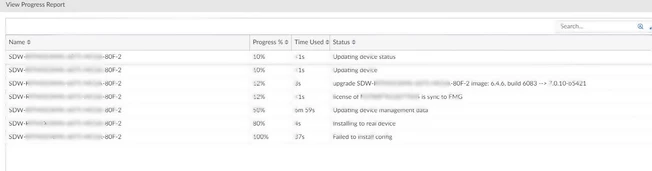

Graph 1: Progress report showing the failure:
In these situations, it is recommended to increase the <discover-timeout>, which allows the FortiManager to wait a longer period of time to listen for a reply from the provisioned device, which will increase the rate of successful connections.
To do so, increase the timeout using the following CLI commands:
config system dm
set discover-timeout 15 <----- Connection timeout (in seconds) when discovering a device (accepted values: 3 - 15, default = 6).
end
