Troubleshooting Tip: FortiManager install failure due to FortiGate Global Limits

  • May 30, 2024
  • 0 replies
  • 1275 views
Description This article describes how to troubleshoot FortiManager install failure due to FortiGate Global Limits.
Scope FortiManager.
Solution

Below is the scenario:

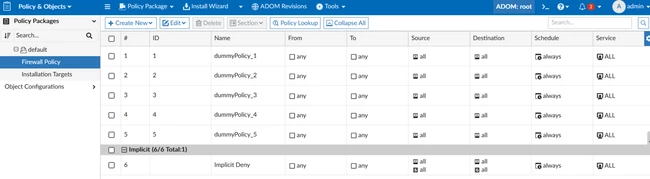

  1. At FortiManager, create 5 dummy firewall policies.




  1. At FortiManager, install the policy package into FortiGate, but the installation is failing.

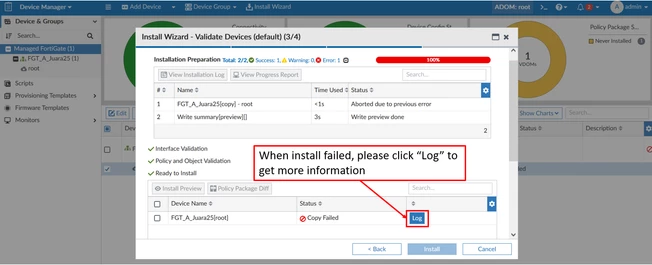

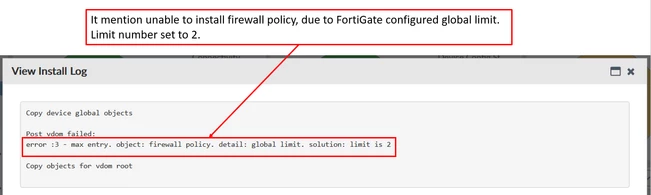

    Select 'Log' to see the installation failure log information.

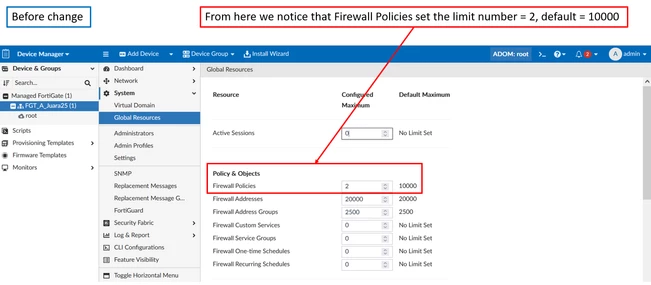

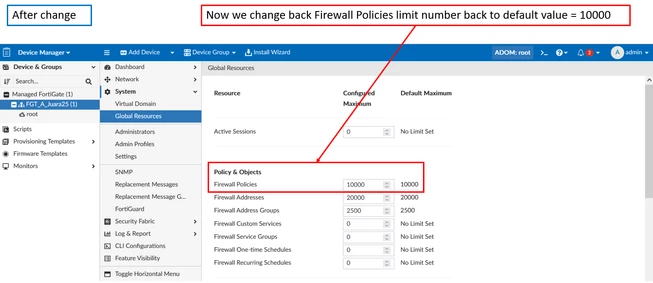

  1. At FortiManager, go to Device Manager -> select and edit managed device -> System -> Global Resources -> Policy & Objects.

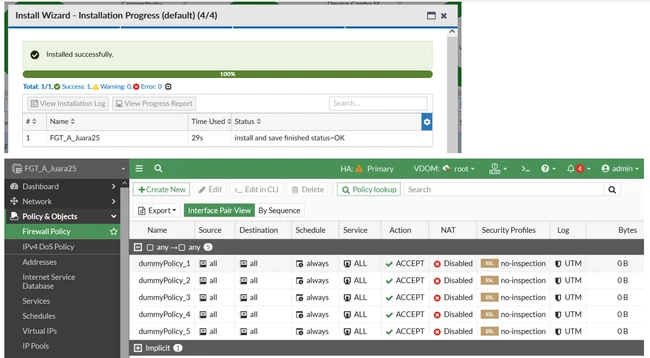

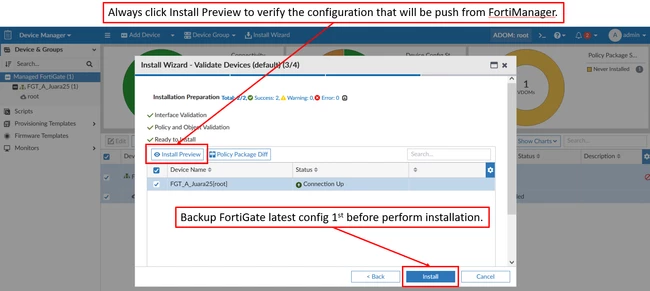

  1. After the changes, now perform the installation again at FortiManager and verify the new config for the FortiGate.
