Technical Tip: Using Terraform with FortiManager and FortiAnalyzer Cloud

Description

This article describes how to make an API call using the Terraform with FortiManager/FortiAnalyzer-Cloud.

Scope

FortiManager/FortiAnalyzer-Cloud.

Solution

To review the steps of creating an API user for FortiManager/FortiAnalyzer-Cloud, follow this KB article: Technical Tip: Set up an API call to FortiManager or FortiAnalyzer Cloud.

Terraform uses a file with an extension .tf.

After the file is created, then use:

terraform init
terraform apply

An example file called test.tf is shown below:

terraform {   required_providers {     fortimanager = {       source = "fortinetdev/fortimanager"       version = "1.12.1"     }   } } # Configure the Provider for FortiManager provider "fortimanager" {   hostname     = "xxxxxxxxx.forticloud.com"   username     = "6BD4Exxxx"   password     = "xxxxxxxxx"   fmg_type     = "forticloud"   insecure     = "true"   scopetype    = "adom"   adom         = "root" }  # Create a firewall vip object resource "fortimanager_object_firewall_vip" "trname2" {   scopetype = "inherit"   adom      = "root"   extintf   = "any"   extip     = "1.10.10.10-2.10.10.10"   mappedip  = ["12.10.10.10-13.10.10.10"]   name      = "viptest1" }

Another option is to use variables for specific information for the provider part:

export "FORTIMANAGER_ACCESS_USERNAME"="admin"
export "FORTIMANAGER_ACCESS_PASSWORD"="admin"

Instead of username/password can be used the token as in this KB article: Technical Tip: Set up an API call to FortiManager or FortiAnalyzer Cloud.

export "FORTIMANAGER_ACCESS_TOKEN"="xxxxxx"

The same in the provider section of the .tf file can be written in the following way:

fmg_cloud_token = "xxxxxx"

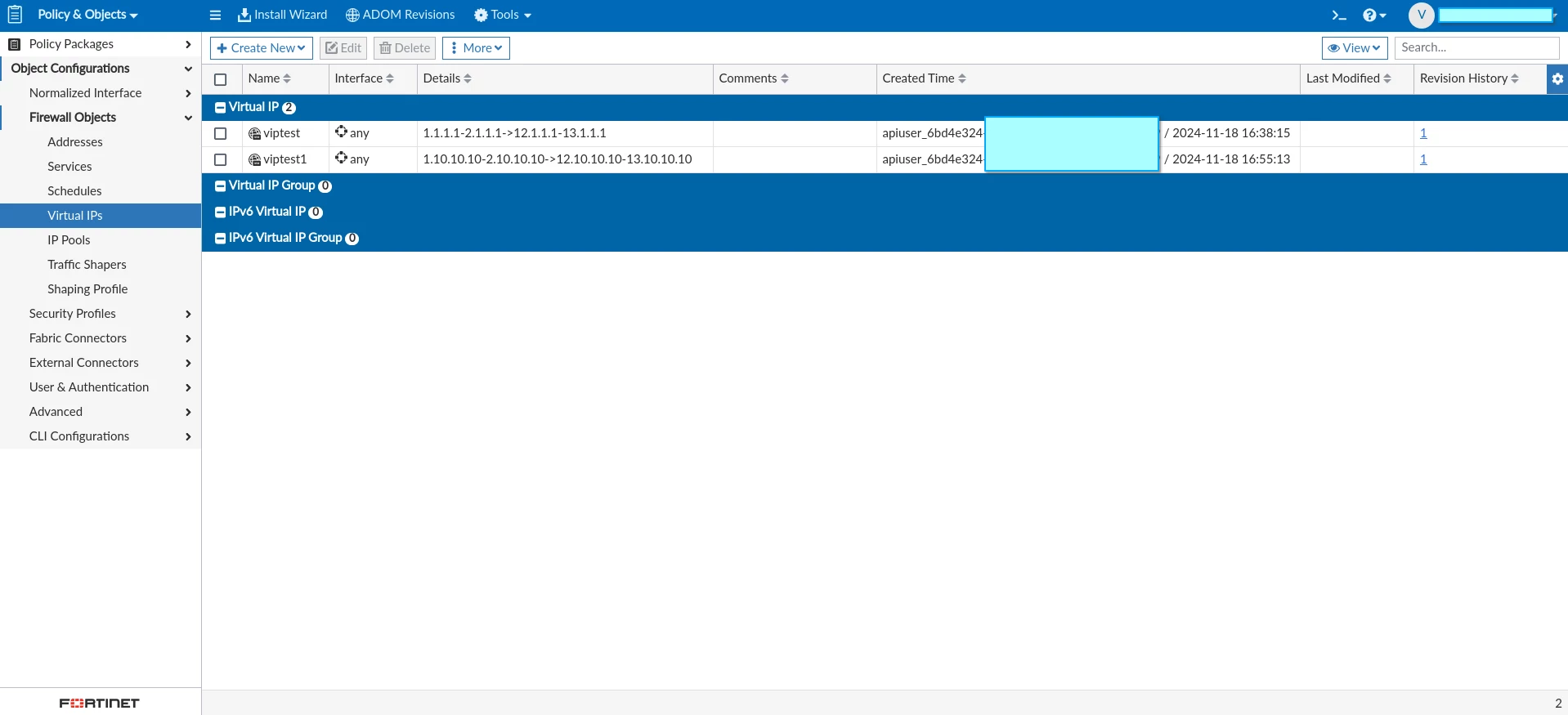

The object created can be reviewed from FortiManager-Cloud:

Troubleshooting:

In some cases, Terraform can give an error about a locked file. It is then possible to overcome it with:

terraform apply -lock=false

To gather debug information, use the following variables:

export TF_LOG="DEBUG"

export TF_LOG_PATH="terraform.txt"

For more debug information, use:

export TF_LOG="TRACE"
