Technical Tip: Troubleshooting steps if the Remote Access feature to the FortiGate is not working
Description
This article describes basic troubleshooting steps to undertake when 'Remote Access' is not working from the FortiManager.
Scope
FortiManager v7.4.2 and above.
Solution
Connections diagram:
The following options are needed on the FortiManager side:
config system admin setting set fgt-gui-proxy enable set fgt-gui-proxy-port 8082 end config system admin profile edit "YourAdminProfile" set fgt-gui-proxy enable next end

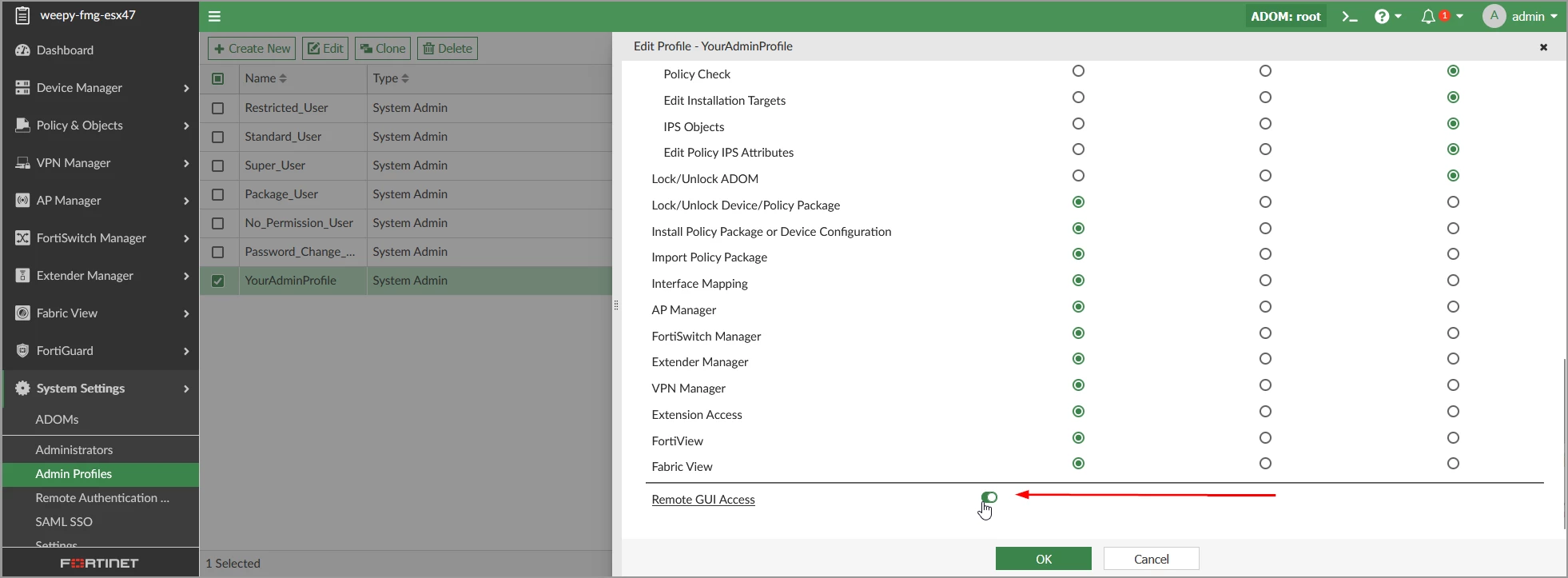

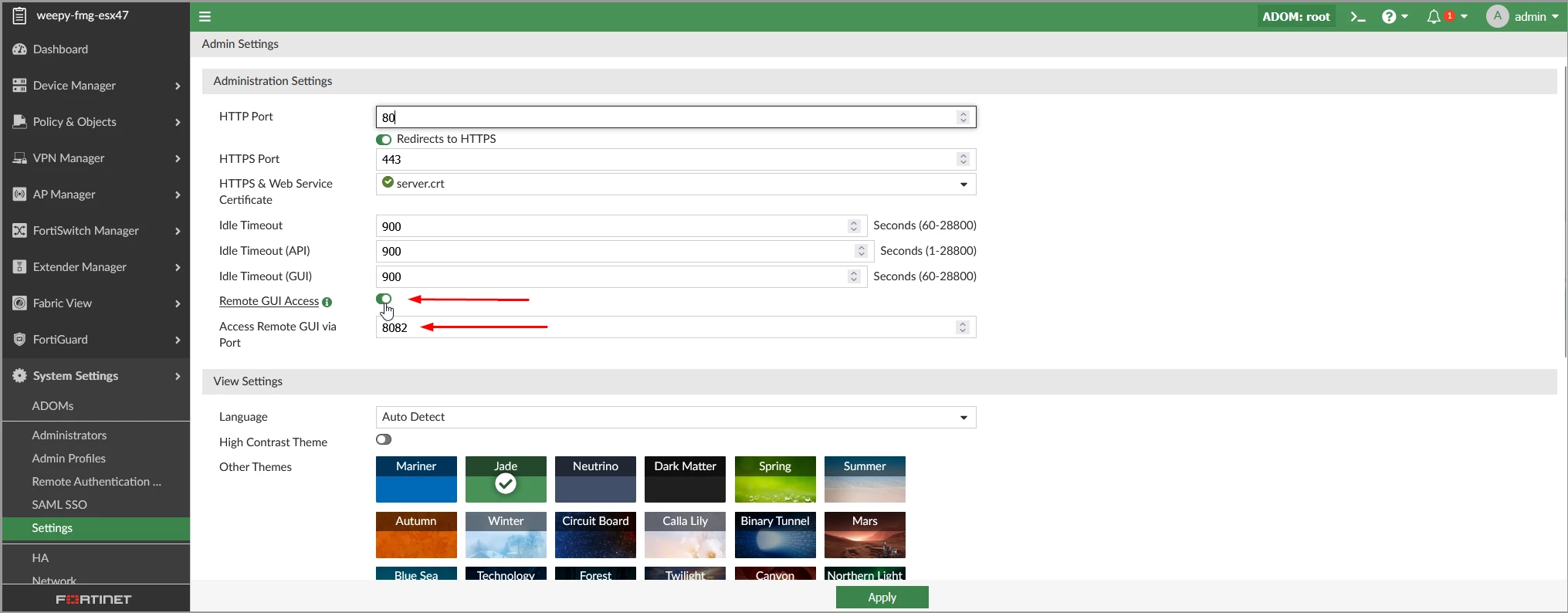

They can also be configured in the GUI:
And:
Additionally:
- The remote access port (TCP 8082 by default) should be allowed on the way from the workstation to the FortiManager.
- No deep inspection or other implicit SSL proxy should be on the way.
- FGFM tunnel established and up between FortiManager and the FortiGate.
- The FortiGate admin-server-cert (System -> Settings -> HTTPS server certificate) should not have expired.
- If FortiGate has trusted hosts set, use the FortiManager FGFM tunnel IP (169.254.0.1) in the trustedhost list.
Note: The default ports and explanation about them can be found in Incoming ports.
Example of operation:

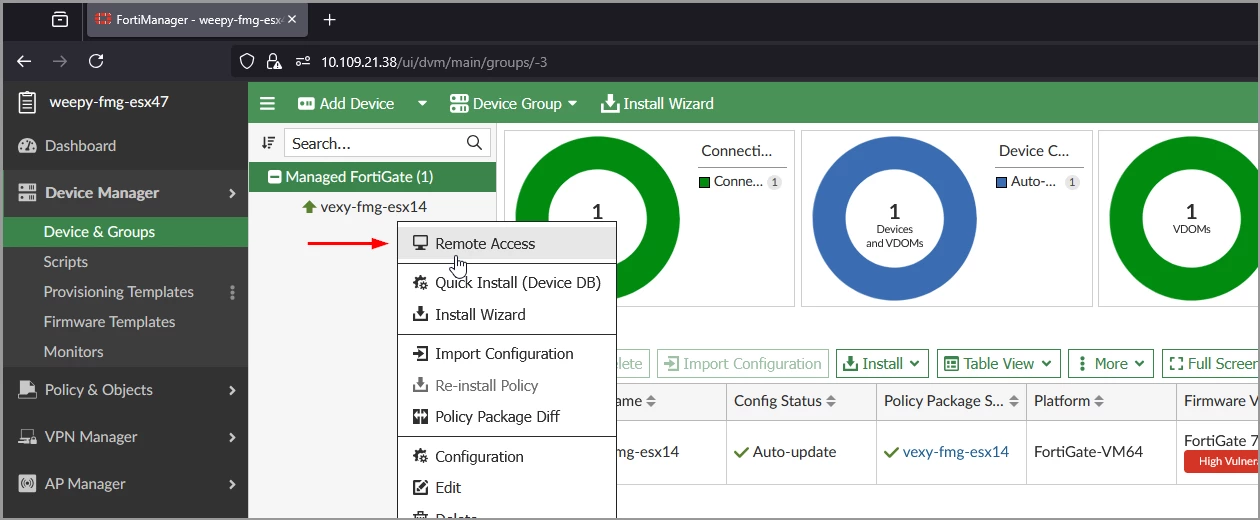

'Right-click' a FortiGate in Device Manager and select Remote access from the context menu:

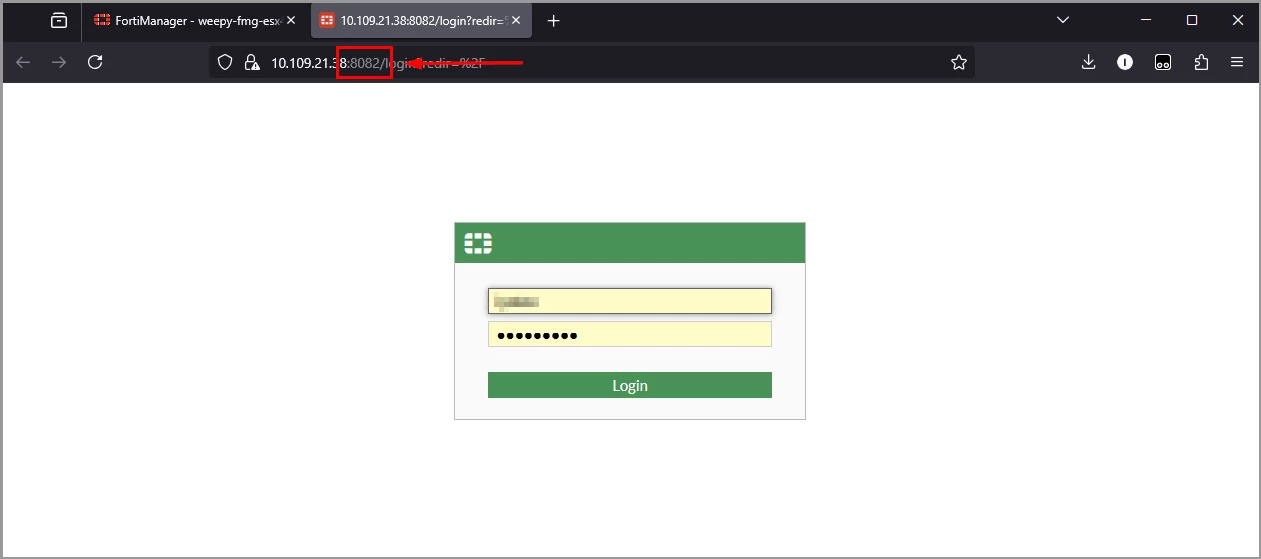

This opens a new browser tab redirecting to the FortiManager address and FortiGate GUI proxy port:
Note: Some browsers may restrict the pop-up redirect. Make sure to allow it in the browser settings if needed.
Command to run on FortiManager and FortiGate.
diagnose sniffer packet any "port 8082" 4
Note:
- After upgrading FortiManager to v7.6.5, the Remote Access fails with '502 Bad Gateway error' when trying to access a FortiGate set to use non-standard admin-sport (the default is 443). This is a Known Issue (number 1240231) that was solved on FortiManager v7.6.6.
- GUI remote access is not supported on FortiManager Cloud. However, remote access to FortiGate using SSH is supported.
- For more details about the limitations of FortiManager Cloud, refer to Limitations of FortiManager Cloud.
