Technical Tip: Shaping-profile installed to FortiGate behavior

  • March 27, 2025
  • 0 replies
  • 272 views
Description

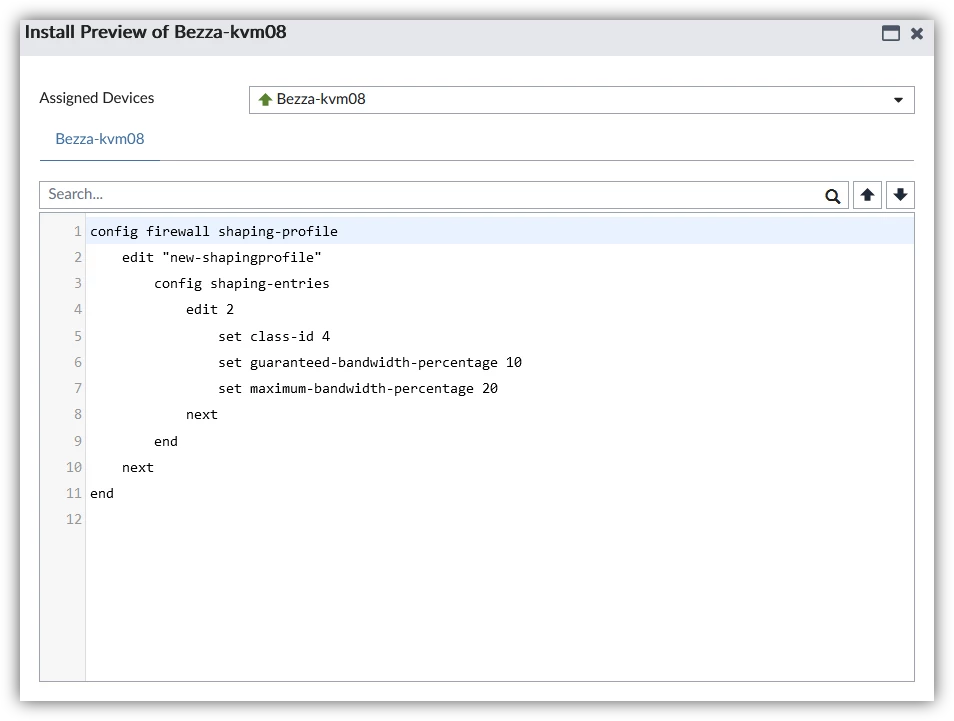

This article describes the behavior why a firewall shaping-profile will install to FortiGate even does not being used at the policy or interface level directly. From this observation, the unwanted configuration is to be pushed to FortiGate.



install preview.png



Scope



FortiManager, FortiGate.



Solution



Basically, shaping-profile will not observed to be install if not directly being used in policy level. Following FortiGate behavior, when creating a 'traffic-class', this need to be under 'shaping-profile', where basically this is being used in 'shaping-policy'.



Hence, in FortiManager's perspective, all this can be configured under:

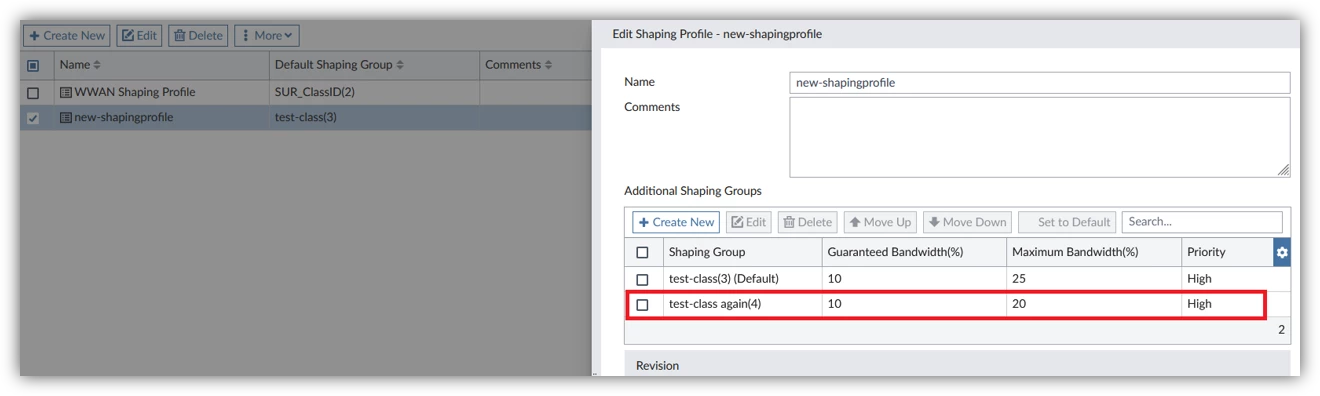

Policy & Objects -> Firewall Objects -> Shaping Profile -> Additional Shaping Groups -> Create New.



shaping-profile group used traffic-class.png

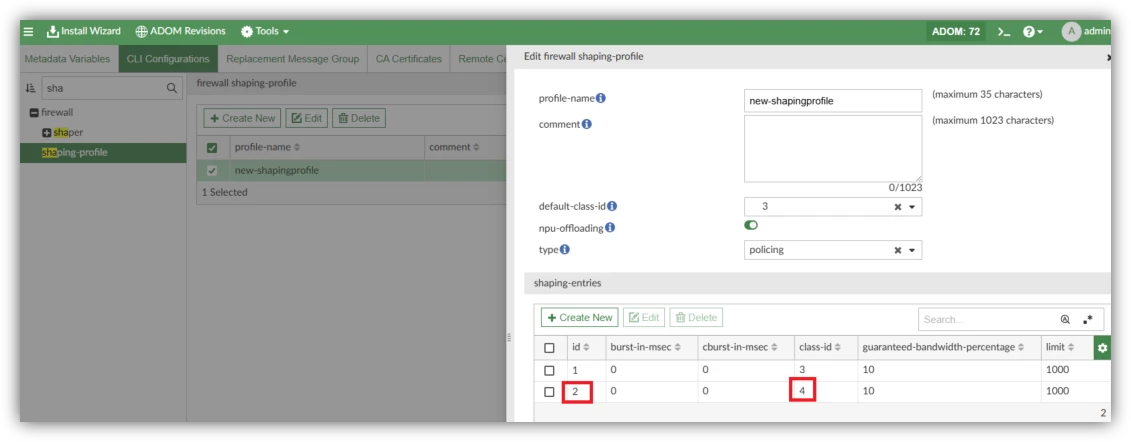

To check the specific id and class-id is as per below:

Policy & Objects -> Advanced-> CLI Configurations -> Search (firewall -> shaping-profile) -> Firewall shaping-profile -> Edit.

 

find class-id.png



Then, this class-id is used and referenced in shaping-policy as per below:

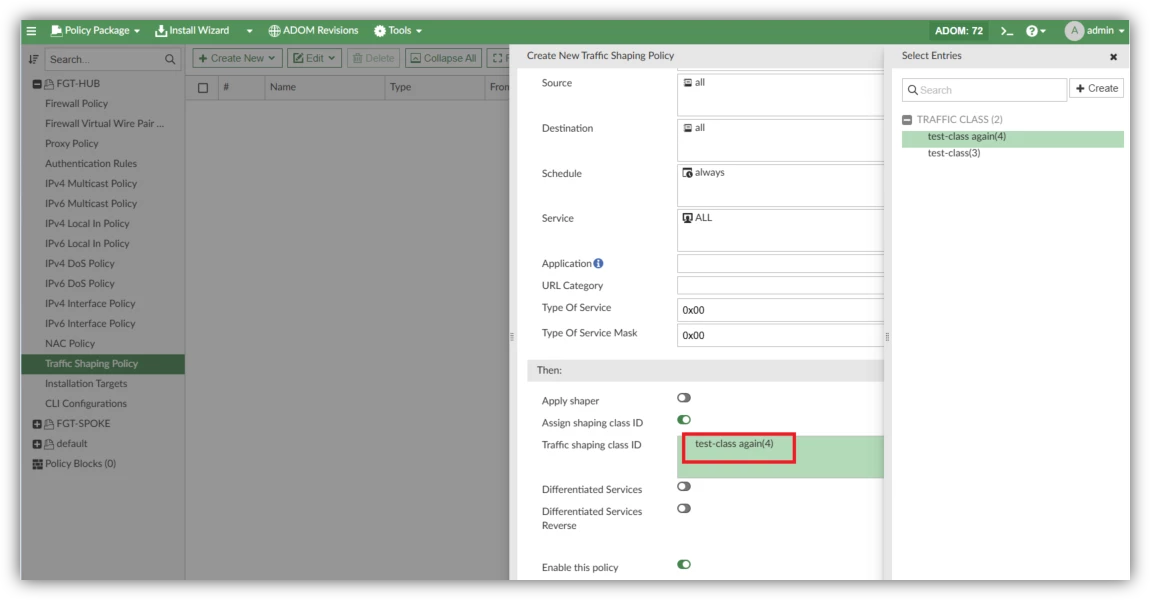

Policy & Objects -> Policy Packages -> Traffic Shaping Policy -> Create New -> Enable Assign shaping class ID -> Select Traffic shaping class ID -> Select Traffic Class.



used in shaping-policy.png



Therefore, the expectation to see the shaping-profile shown in Install Preview for this scenario is an expected behavior.
