Technical Tip: SD-WAN Rules in SD-WAN Monitor only shows Interface Preference members

  • December 26, 2024
  • 0 replies
  • 304 views
Description



This article describes why in SD-WAN Rules in SD-WAN Monitor only shows Interface Preference members instead of Zone Preference.



Scope



FortiManager v7.2.9 and below, v7.4.5 and below, v7.6.2 and below, FortiGate.



Solution

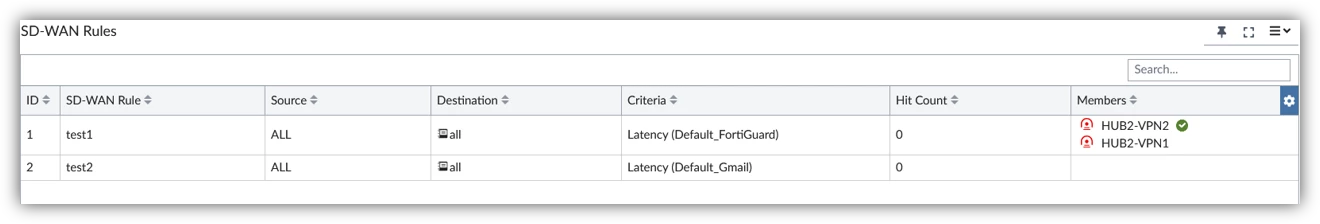

SD-WAN Rules in SD-WAN Monitor: Go to Device Manager -> Device & Groups -> Monitors -> SD-WAN Monitor -> Table View ->  Select Device -> SD-WAN Rules.  Both SD-WAN Rules, test1 and test2 will only show Internet Preference members.



sdwan rules.png

 

SD-WAN Rules in Device Manager (Config Page): Go to Device Manager -> Device & Groups -> Managed FortiGate -> Select Device -> Network ->  SD-WAN -> SD-WAN Rules.

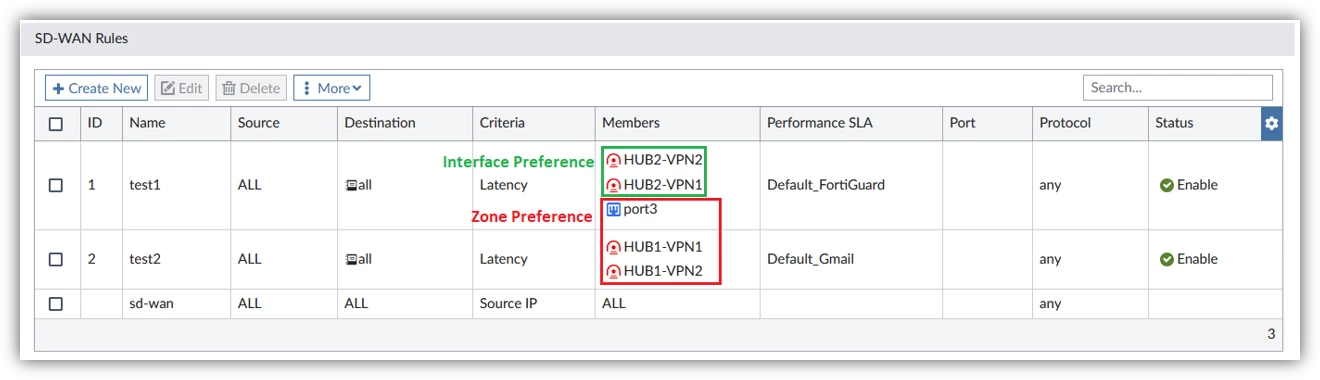

In configuration, it will show all members, either Zone Preference or Interface Preference.



sdwan rules device manager.png

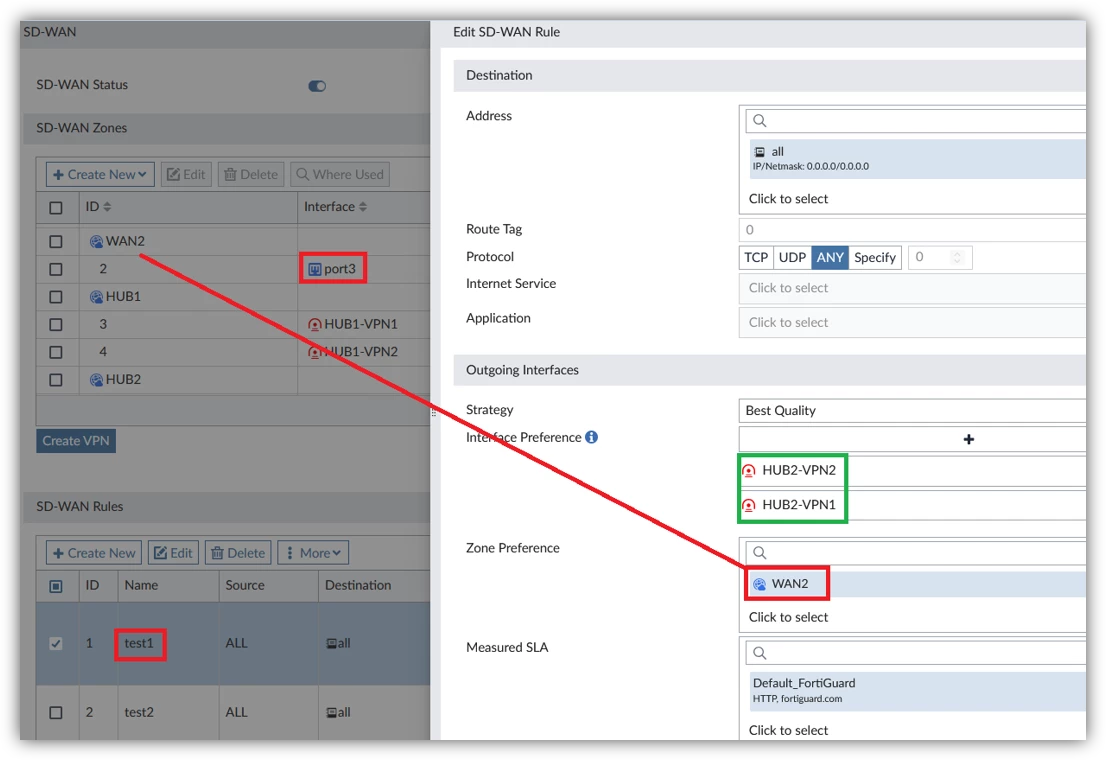

For example, test1 SD-WAN Rules configuration set Interface Preference, HUB2-VPN2 and HUB2-VPN1, and Zone Preference, WAN2 as members.

WAN2 SD-WAN Zones have port3 as members and that is why it shows port3 in SD-WAN Rules test1 members.



test1 sdwan rules.png

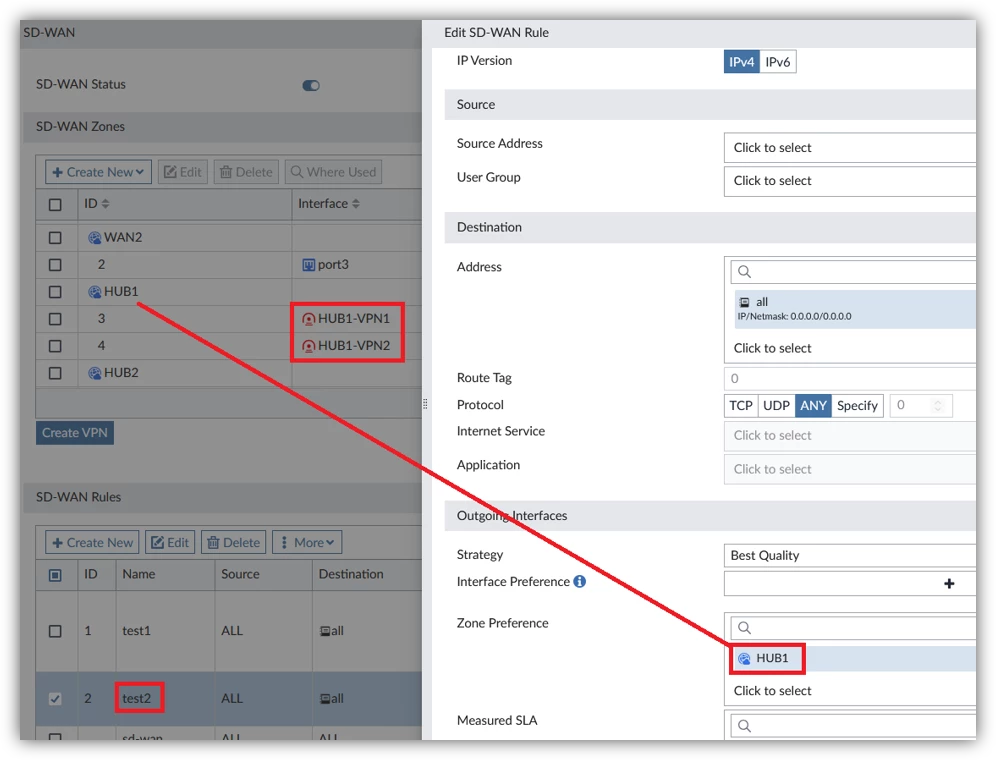

For test2 example, no Interface Preference members but only Zone Preference, HUB1. Where HUB1 SD-WAN Zones, HUB1-VPN1 and HUB1-VPN2 as members.



test2 sdwan rules.png



As per the current design, FortiManager for SD-Monitor will choose Interface Preference to display priority-members attribute instead of priority-zone attributes since it has lower priority. The logic are followed from the FortiGate where the priority-zone attributes does not display in the SD-WAN Monitor.
