Technical Tip: Metadata variable for SD-WAN templates

Forum|Forum|2 years ago
July 24, 2023
0 replies
3039 views

Description

This article describes how to use metadata variables into FortiManager SD-WAN templates.

Scope

FortiManager v7.2.

Solution

If an SD-WAN template is used and it is applied to many FortiGates, metadata variables can be configured to set a gateway IP address (Interface Member, Cost and Priority as well).

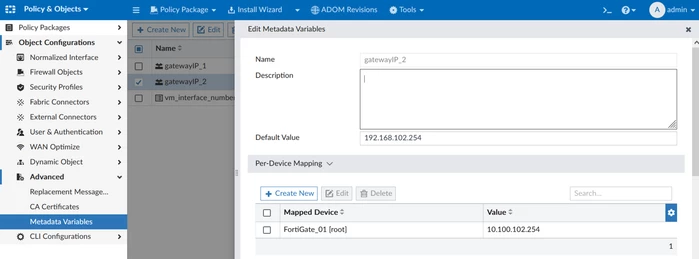

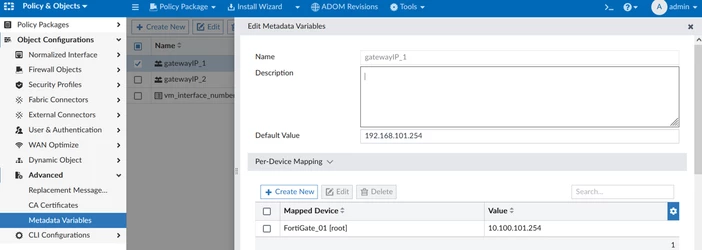

After creating metadata variables, add FortiGate gateway IP address information for multiple IPs into Per-Device Mapping.

Create Metadata Variables: After selecting an ADOM, go to Policy & Objects -> Advanced -> Metadata Variables -> Create New.

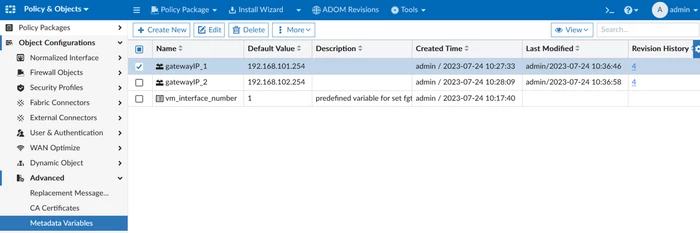

1. Create Metadata Variables.png

Note:

A Metadata variable's default value must either be a valid IP address or left blank. If any non-IP text or invalid value is entered in this field, an error will occur when saving the SD-WAN template.

Add these Metadata Variables to the SD-WAN template. After selecting the ADOM, go to Device Manager -> Provisioning Templates -> SD WAN Templates -> Create New.

2. Create SDWAN Templates.png

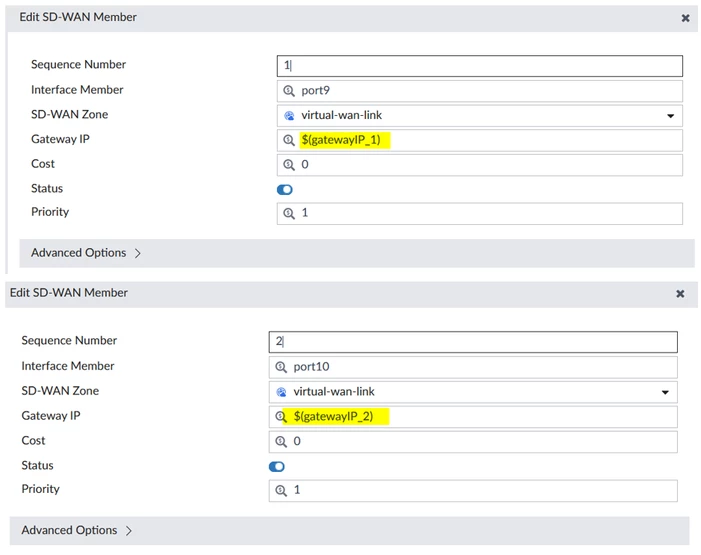

2. Create SDWAN Templates_2.png

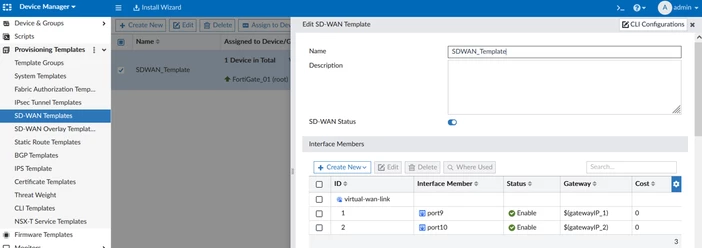

2. Create SDWAN Templates_3.png

Assign SD-WAN templates to FortiGate. After selecting the ADOM, go to Device Manager -> Select FortiGate device -> edit Provisioning Templates -> add SD WAN Templates.

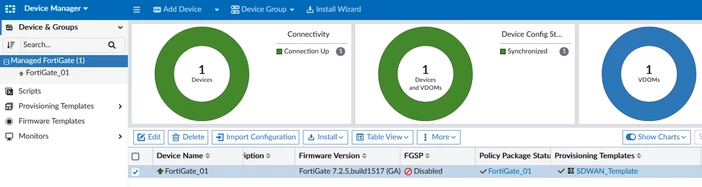

3. Assign SDWAN Templates.png

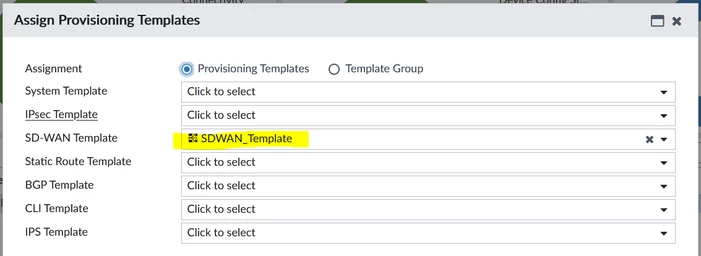

3. Assign SDWAN Templates_2.png

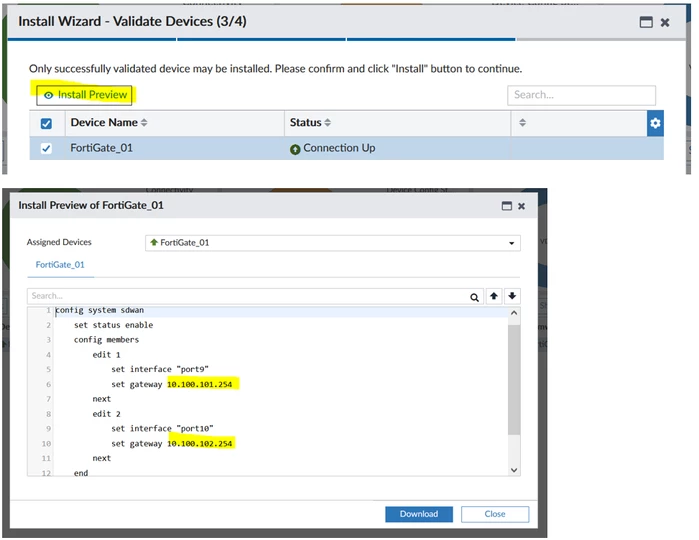

Install the SD-WAN templates into FortiGate. After selecting the ADOM, go to Device Manager -> Select FortiGate device -> Install Wizard. During the Installation, select Install Preview to check the changes.

4. Install.png
