Technical Tip: Managing and monitoring 5K Shelf Manager with FortiManager
| Description | This article describes how to integrate FortiManager with Shelf Manager Modules on 5K chassis so that operations can be performed visually from FMG GUI |
| Scope | |

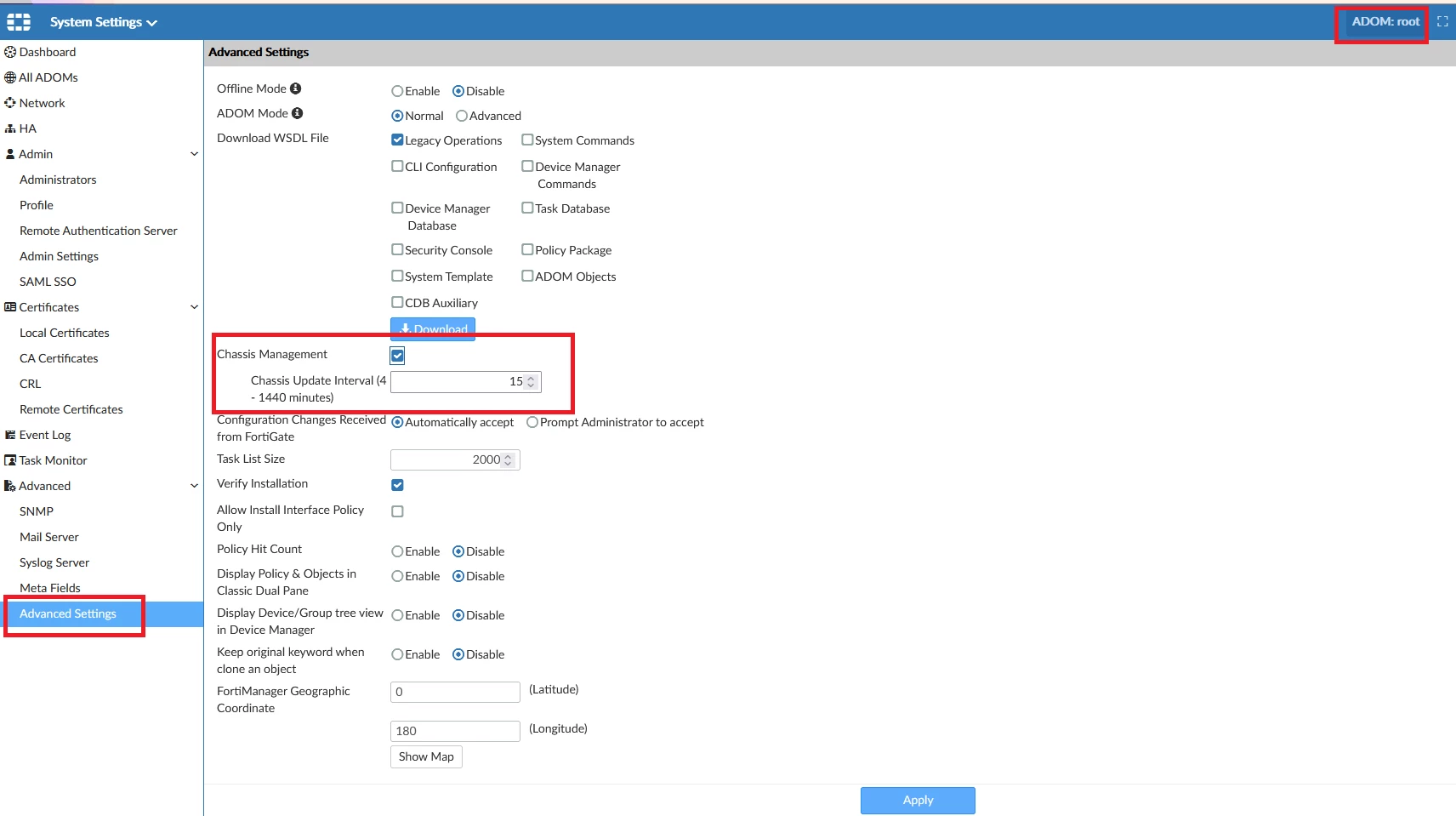

| Solution | Enable ADOMs if not already enabled. Next step : Go to root ADOM -> Settings -> Advanced settings. Enable chassis management.
Once this setting is applied a new adom with name “Chassis” will appear.

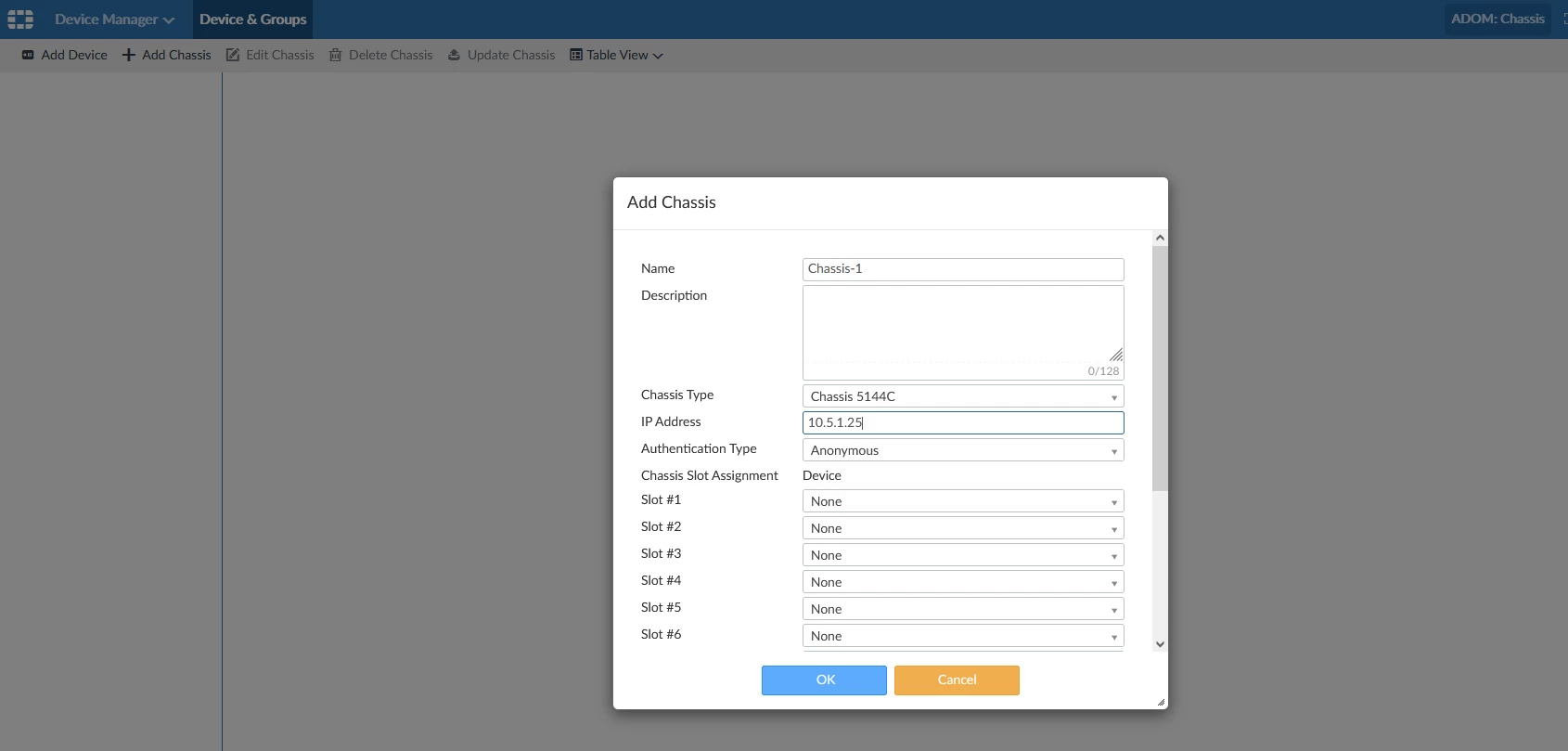

Switch to Chassis ADOM and select “Add Chassis”
The ip address here will be the ip address of Shelf manager.

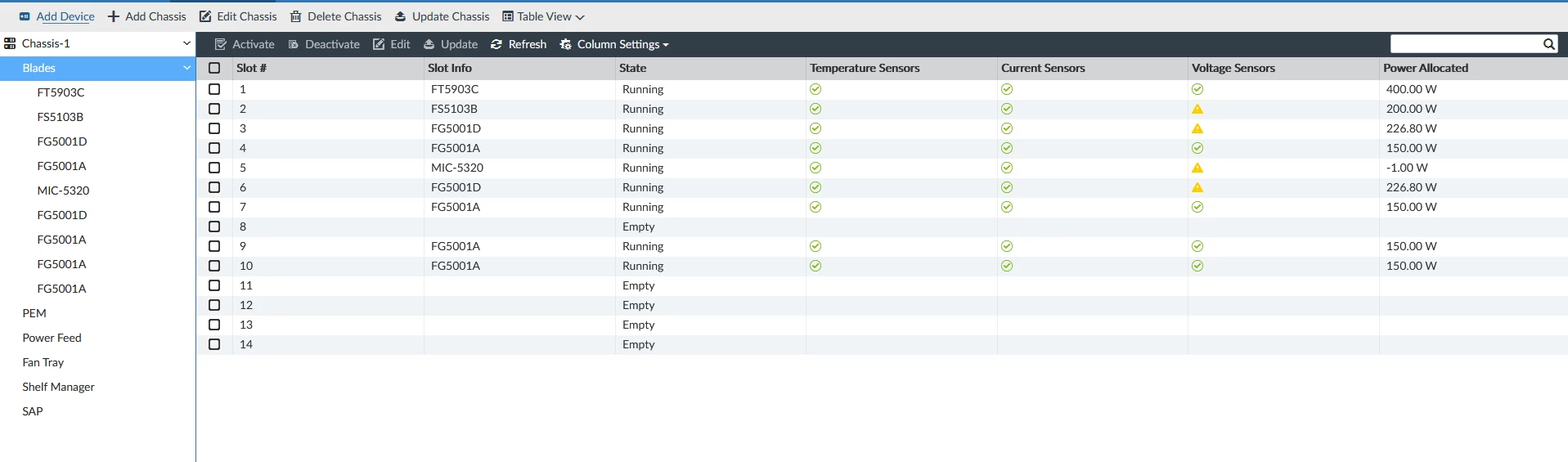

Once this operation is finished, it will be possible to observe the Chassis Health and even shutdown & power up the slots from Fortimanager GUI.

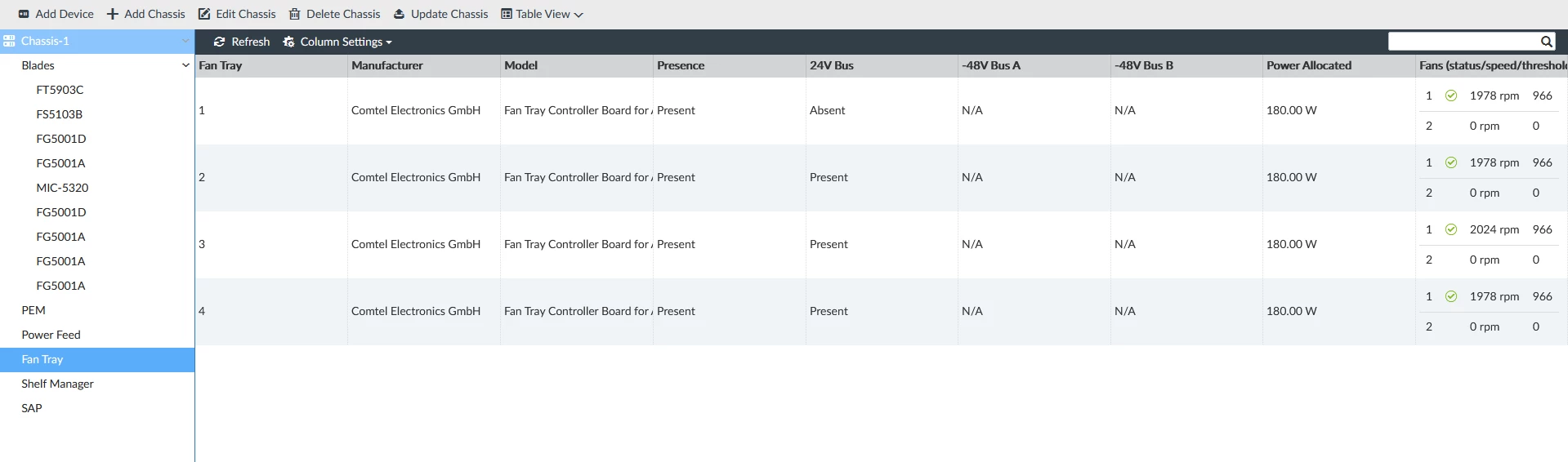

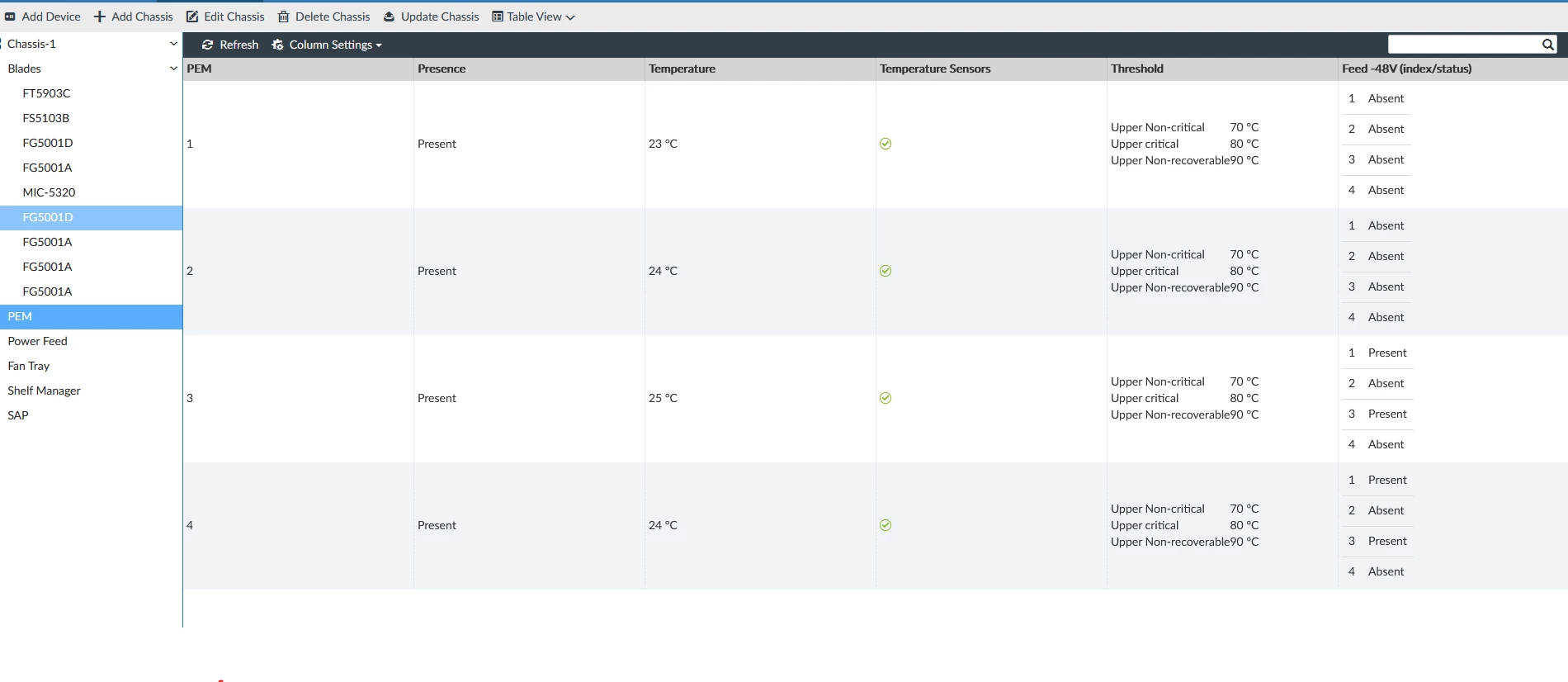

Information regarding PEM & Power Feed & FAN can be seen in the submenu’s of the Chassis :

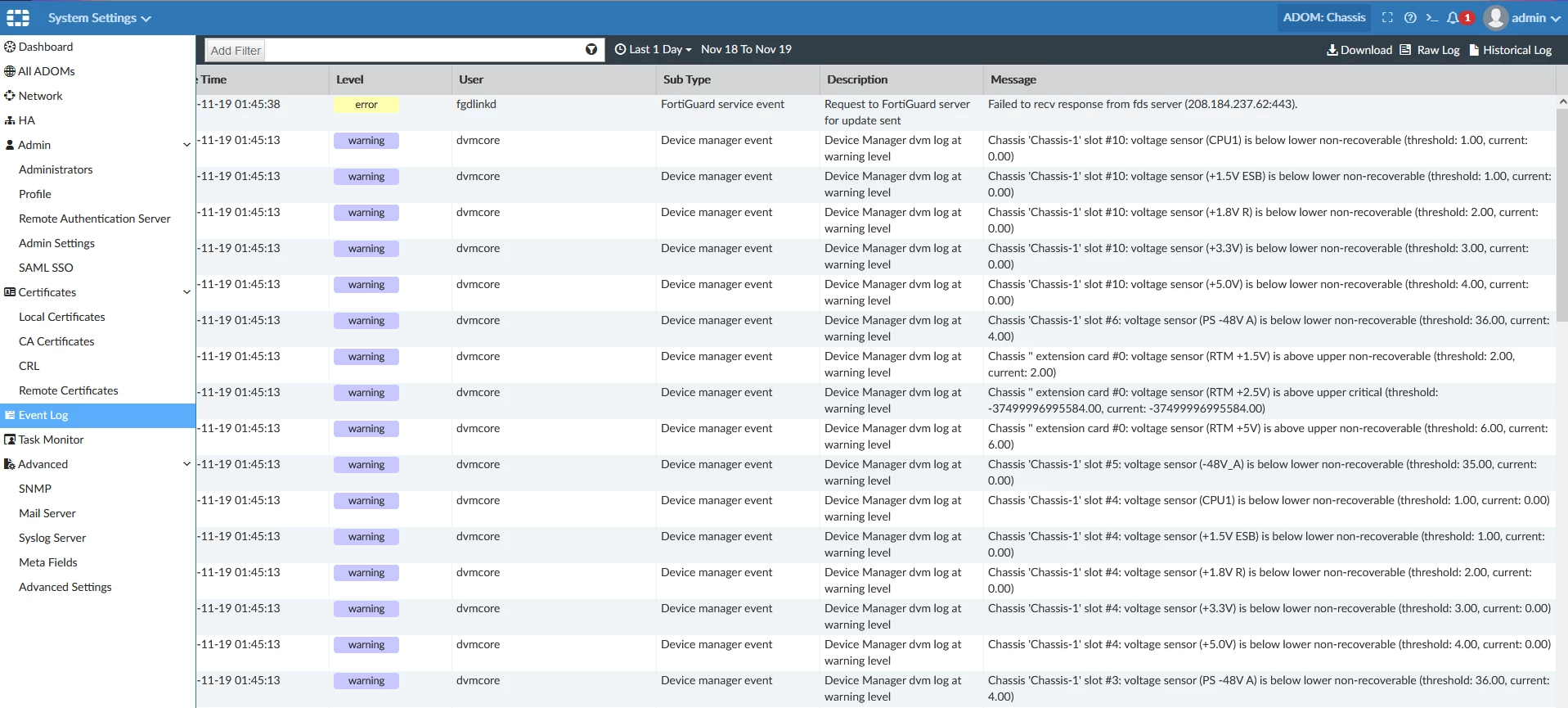

 The event logs from Shelf Manager will also be visible in the System Settings ->Event Logs sub menu.
|
