Description

This article describes how to upload and set local certificate to be used in FortiManager/FortiAnalyzer using WebUI and CLI.

Scope

FortiManager and FortiAnalyzer.

Solution

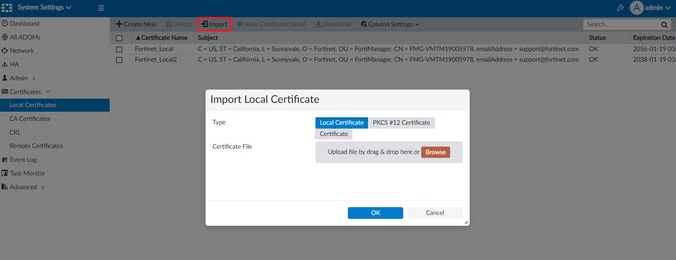

The user can upload a local certificate into FortiManager/Fortianalyzer by navigating as below: System Settings -> Certificates -> Local Certificates -> Import.

Use the option 'Certificate'.

Requirements:

Certificate (.crt).
Key File (.key).
Certificate Password.

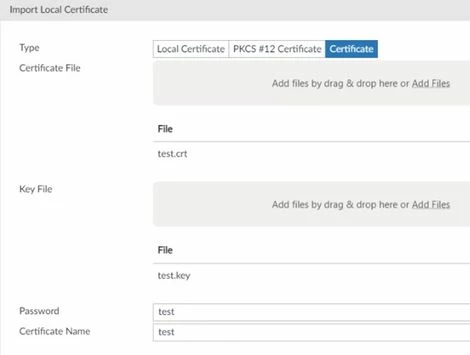

Configuration:

Certificate File : test.crt.
Key File: test.key.
Password: Certificate Password.

The new 'Local Certificate' will be displayed in System Settings -> Certificates -> Local Certificates.

Below is another example of creating a new Local Certificate through CLI:

config system certificate local
edit "whatever"
set password ENC OTYwOTM2MDE2MzMzMDQxObncgXrfaJGPDHYY9I09cMQokPUzS+GNiIP6WD8uwAXAWzLsi4NIt1uYXYt5k17NbGbRqd9ukwPC8WUYBuBX8ilVmCDwnmfJyWa82eP6TCBd0SS2UbJXNGX5SFLPw6o9gfMv1t/AQV7w78MLqcHgp2jCYGY751NNIB452h1y53Qy
set comment "whatever"
set private-key "-----BEGIN ENCRYPTED PRIVATE KEY-----
MIIJpDBOBgkqhkiG9w0BBQ0wQTApBgkqhkiG9w0BBQwwHAQI9hoxbo7L+UcCAggA
<---snip-->
tBGA5uCegCmC4TWjqvyMh+5bqABe4TeX
-----END ENCRYPTED PRIVATE KEY-----"
set certificate "-----BEGIN CERTIFICATE-----
MIIHXzCCBcegAwIBAgIRAPMmRMkH/yY9sLYSRB6mbeUwDQYJKoZIhvcNAQEMBQAw
<---snip-->
D/O15yhTj+sN4kXtFN7pVQKY0w==
-----END CERTIFICATE-----"
next
end

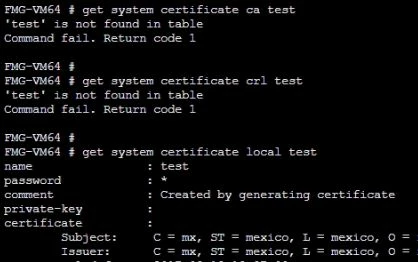

Run the following commands via CLI to find the imported certificate:

get vpn certificate ca

get vpn certificate local

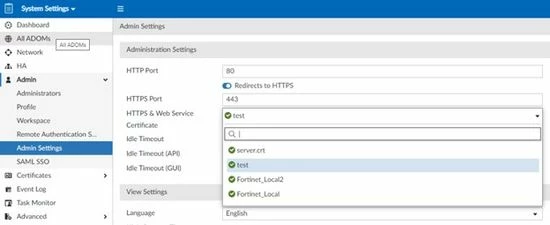

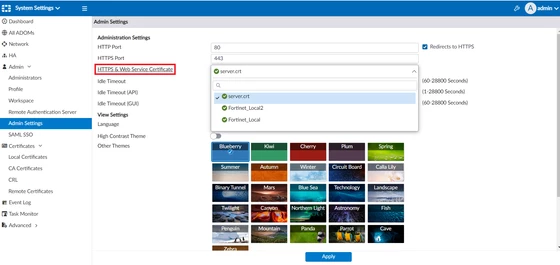

Once the local certificate has been uploaded successfully, the user will be able to set the FortiManager/FortiAnalyzer to use the newly uploaded local certificate by navigating as below. Under System Settings -> Admin -> Admin Settings -> HTTPS & Web Service Certificate, select the cert -> Apply.
