Technical Tip: How to send FortiManager local event logs to FortiAnalyzer

Description

This article describes how to send FortiManager local event logs to FortiAnalyzer.

Scope

FotiManager.

Solution

Option 1 - Enable logging through FortiManager CLI.

1. Log in to the FortiManager CLI.
2. Configure FortiAnalyzer as a logging destination using the 'config system locallog fortianalyzer' command.

Related document :

locallog

Option 2 - Enable FortiAnalyzer Features on FortiManager.

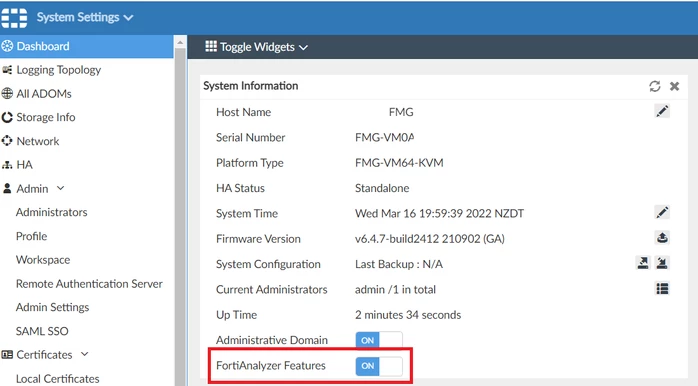

1. The user can send FortiManager local event logs to FortiAnalyzer by navigating as below. Enable FortiAnalyzer Features on System Settings -> Dashboard.

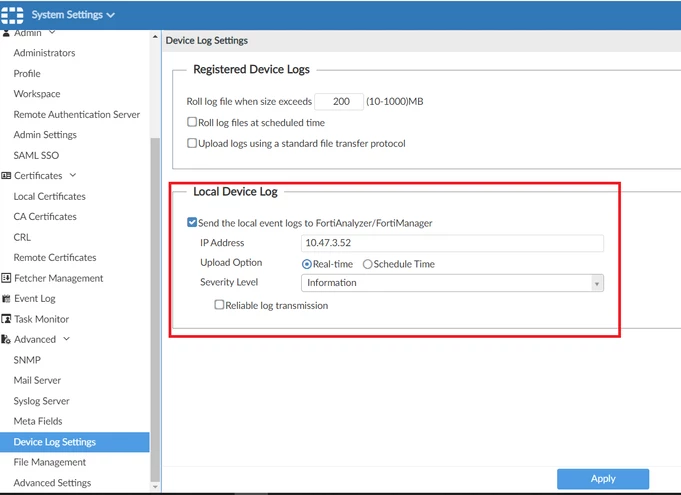

Under System Settings -> Device Log Settings -> Local Device Log -> Enable 'Send the local event logs to FortiAnalyzer/FortiManager' -> Enter the FortiAnalyzer 'IP Address' and set the 'Severity Level' -> Apply.

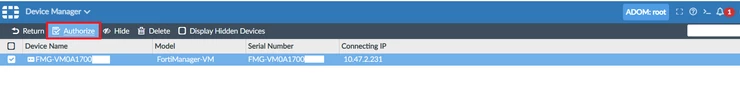

2. Once the changes are saved in FortiManager Device Log Settings, authorize the FortiManager in the FortiAnalyzer to allow FortiAnalyzer to start receiving logs from FortiManager.

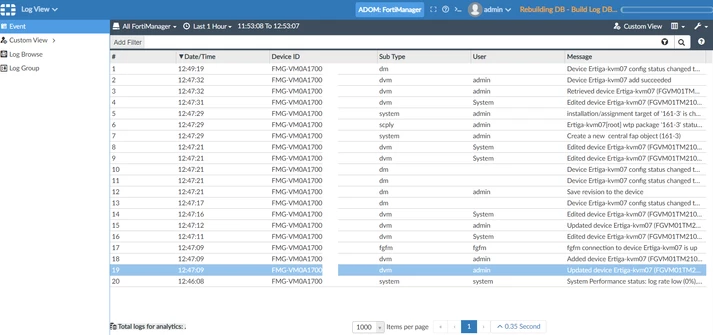

3. Once the FortiManager is fully authorized, the user will be able to view the FortiManager local event logs under Log View.

If the event logs are not present or properly shown under Log View, run a manual SQL database rebuild for the FortiManager ADOM via the command below.

exe sql-local rebuild-adom FortiManager

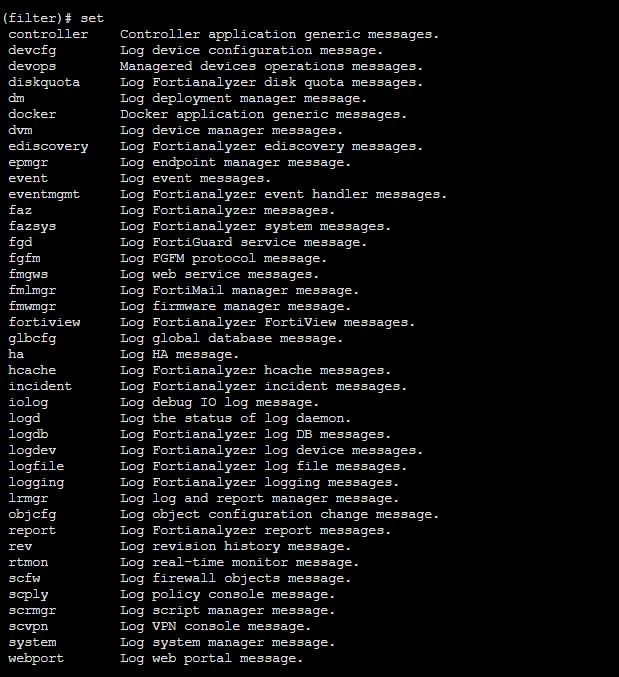

On FortiManager, it is possible to filter the logging to FortiAnalyzer servers as below:

config sys locallog fortianalyzer filter

(filter)#
set   Modify value.

Example: to disable the fgfm logging to syslog servers as below:

config sys locallog fortianalyzer filter
    set fgfm disable
end

All valid examples:
