Technical Tip: How to obtain MIBs and OIDs for FortiManager and FortiAnalyzer
Description
This article describes how to obtain MIBs and OIDs for FortiManager and FortiAnalyzer.
Scope
FortiManager and FortiAnalyzer.
Solution
FortiManager and FortiAnalyzer share the same MIB database file (FORTINET-FORTIMANAGER-FORTIANALYZER-MIB.mib). FortiManager and FortiAnalyzer use the common CORE MIB (FORTINET-CORE-MIB.mib). Both the CORE MIB and the FortiManager/FortiAnalyzer MIBs can be downloaded from the Fortinet Support Portal.
Downloading the MIBs and OIDs

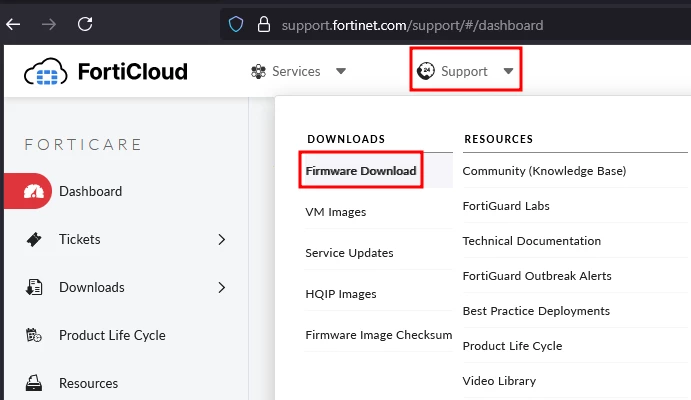

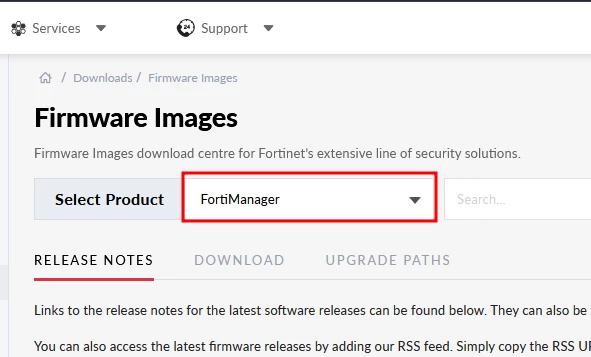

- Log in to the Fortinet support portal at https://support.fortinet.com and navigate to the Firmware Download page. Under Support -> Firmware Download, select Product (FortiManager) and then Download.

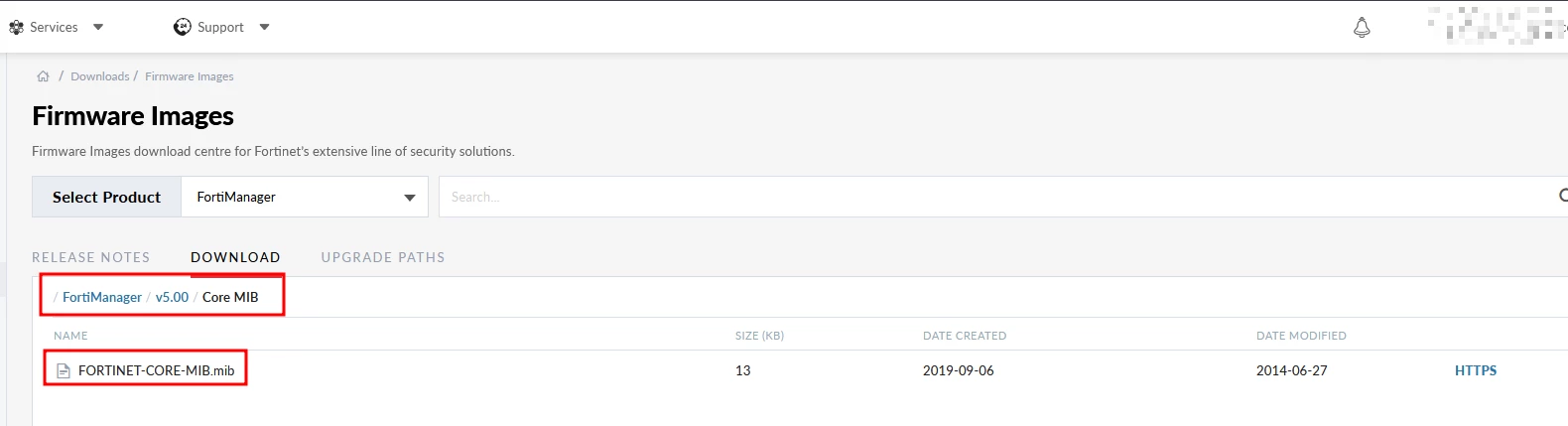

- To download the FORTINET-CORE-MIB.mib, navigate to the version 7.00 folder (see below):

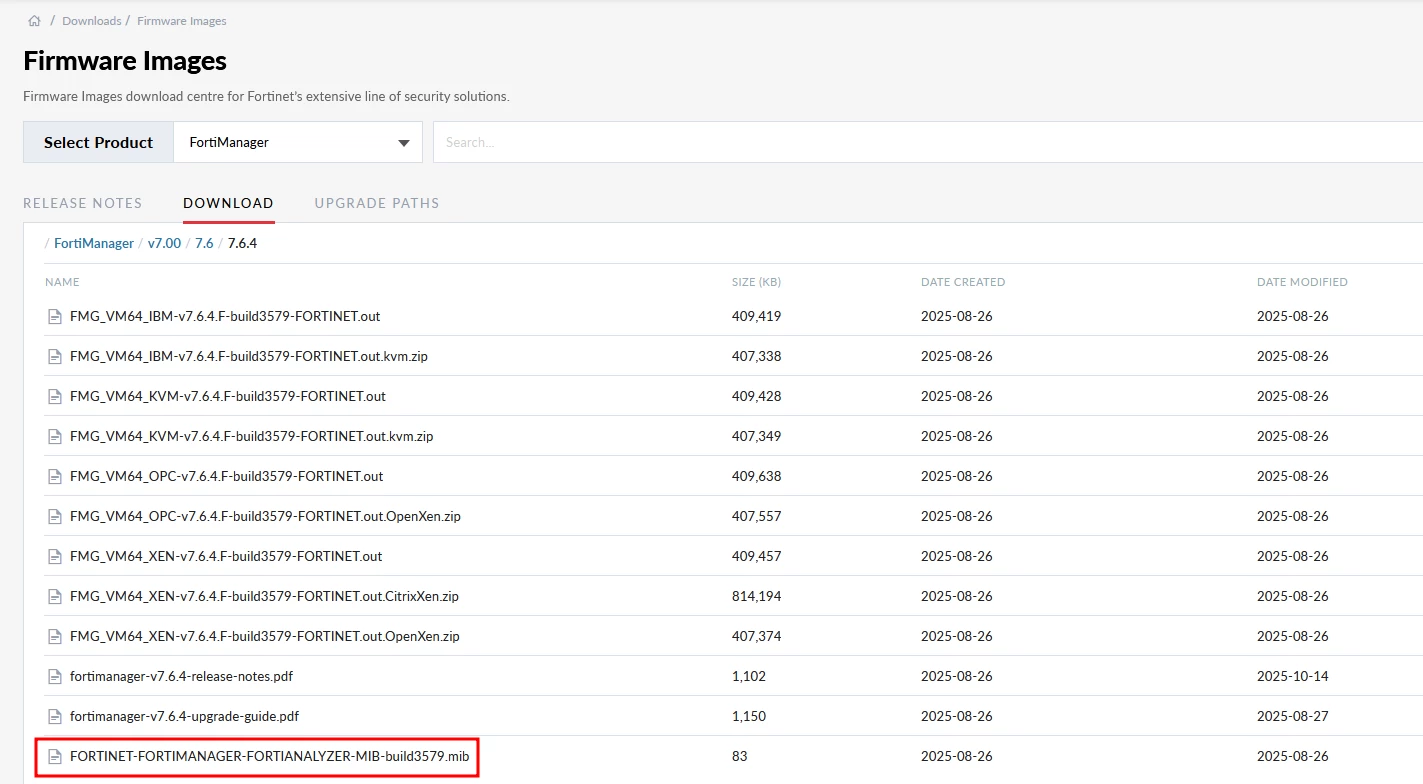

- To download the FORTINET-FORTIMANAGER-FORTIANALYZER-MIB.mib, navigate to the appropriate FortiManager version directory (see below):

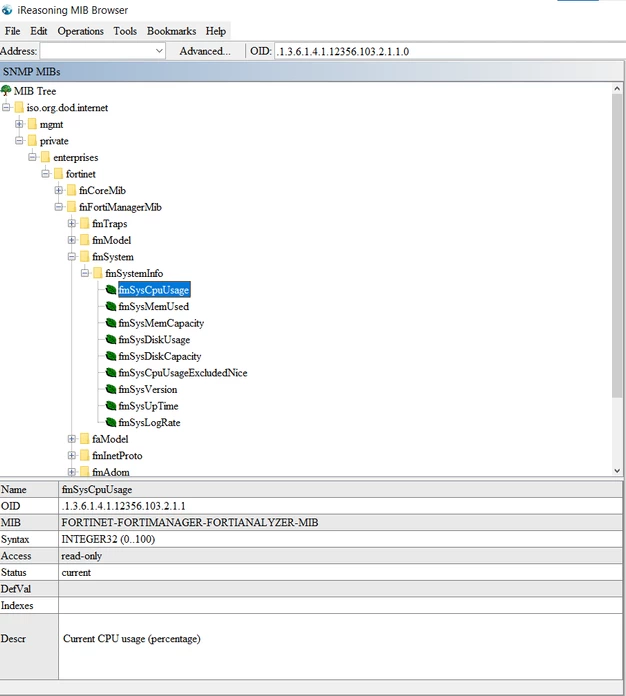

- Once the MIBs are downloaded, use any third-party SNMP browser software to view the appropriate SNMP OIDs for the FortiManager/FortiAnalyzer. Below is a sample SNMP OID (.1.3.6.1.4.1.12356.103.2.1.1.0) for the FortiManager/FortiAnalyzer CPU Usage.
