Technical Tip: How to fetch details of DHCP clients of managed FortiGates using FortiManager JSON API

The FortiManager proxy API can be used to query DHCP client information from multiple managed FortiGates.

To fetch the list of all managed FortiGates, follow Step 1 in this KB article: Technical Tip: How to fetch Interface IP address of managed FortiGates using FortiManager JSON API.

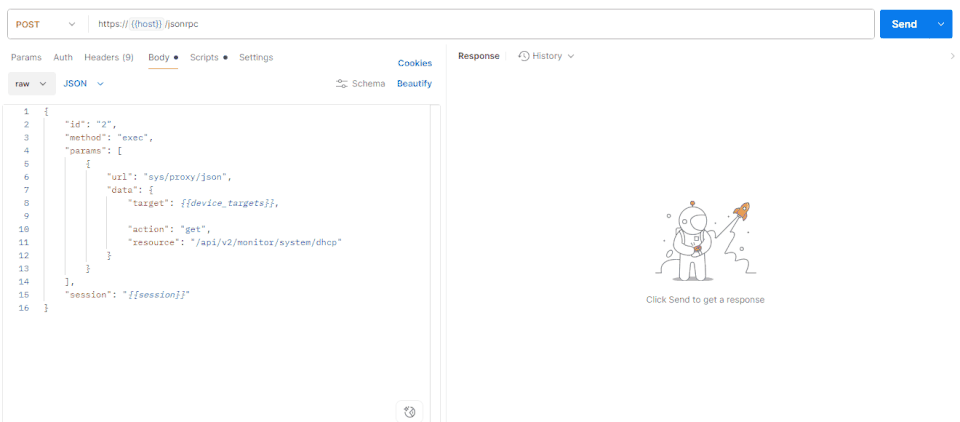

Then use the following API query to fetch the DHCP clients' details:

{

    "id": "2",

    "method": "exec",

    "params": [

        {

            "url": "sys/proxy/json",

            "data": {

                "target": {{device_targets}},

                "action": "get",

                "resource": "/api/v2/monitor/system/dhcp"

            }

        }

    ],

    "session": "{{session}}"

}

The API response includes interface details for each specified device. To generate a clean and readable summary, using Postman, JavaScript can be used in the Scripts -> Post-res section to extract and display the following fields in the Visualization tab:

• FortiGate Name.
• The interface on the FortiGate where clients are connected.
• Hostname of the connected DHCP client.
• Client MAC Address.
• Client IP Address.

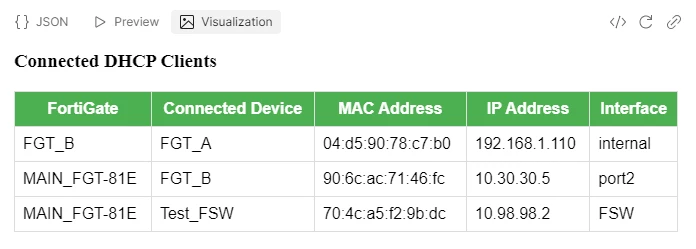

Final output in the visualization tab of Postman:

• The API collection can be imported into Postman (tested with v11.64) via the attached zip file.
• Under the 'Variables' tab of the collection, the following variables are required:
  • host: IP address of FortiManager.
  • ADMIN: FortiManager Admin user.
  • PASSWORD: Admin user password.
