Technical Tip: How to create IPsec Aggregate tunnel in FortiManager

IPsec Aggregate allows grouping multiple IPsec VPN tunnels into a single logical interface for load balancing and redundancy.

There are three methods to set up IPsec Aggregate using FortiManager:

1. Using IPSec Template.
2. Creating tunnels on the Device Database.
3. Using CLI Template.

Note: The following steps show the configuration required for setting up an IPsec aggregate. Other IPsec configuration details for phase1/phase2 are not covered in this article.

Option 1: Use IPsec Template.

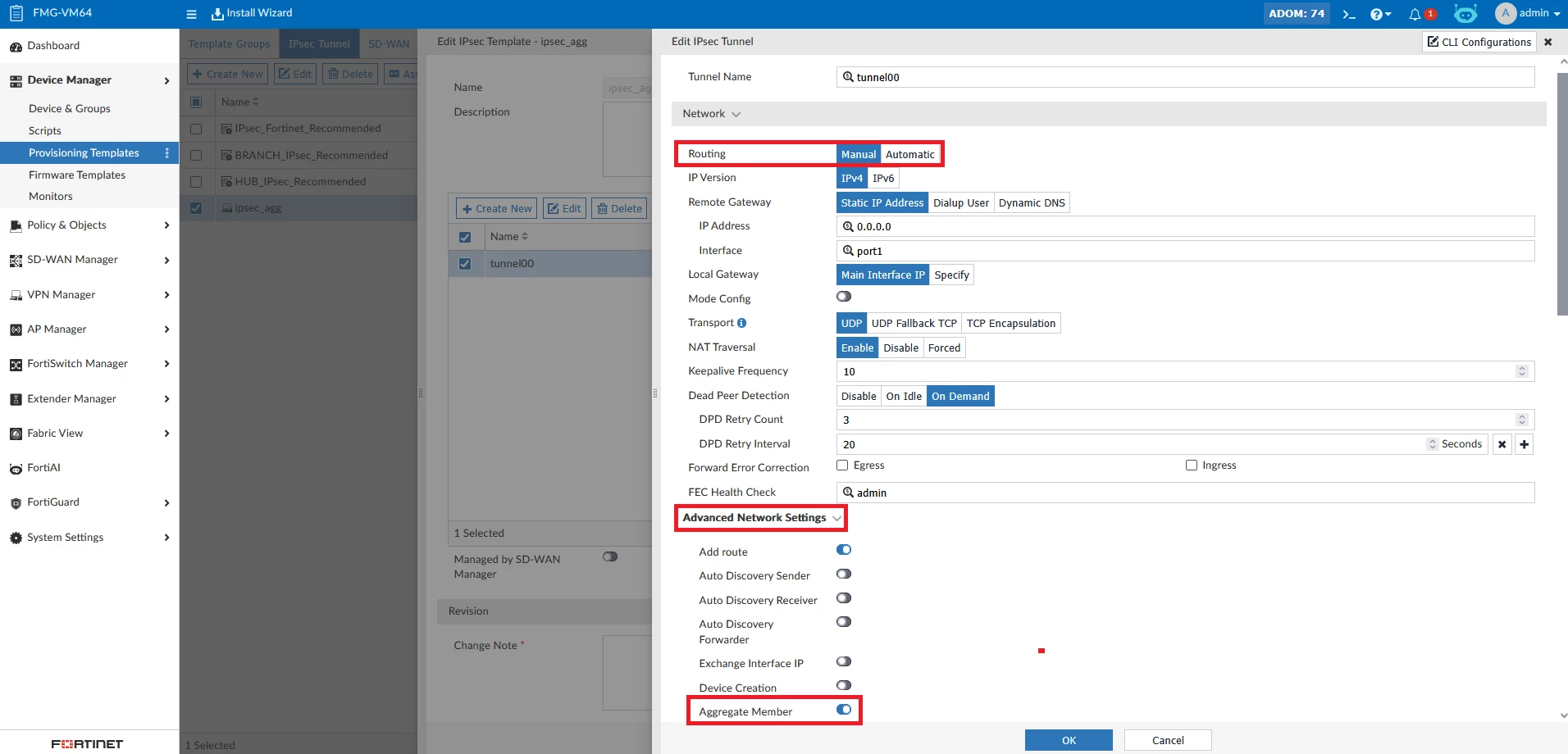

• Create a new IPsec template: Device Manager -> Provisioning Templates -> IPsec Tunnel -> Create New.
• Set 'Routing' to 'Manual'.
• Under 'Advanced Network Settings': enable 'aggregate-member' option (v7.4, this option is under 'Advanced Options').

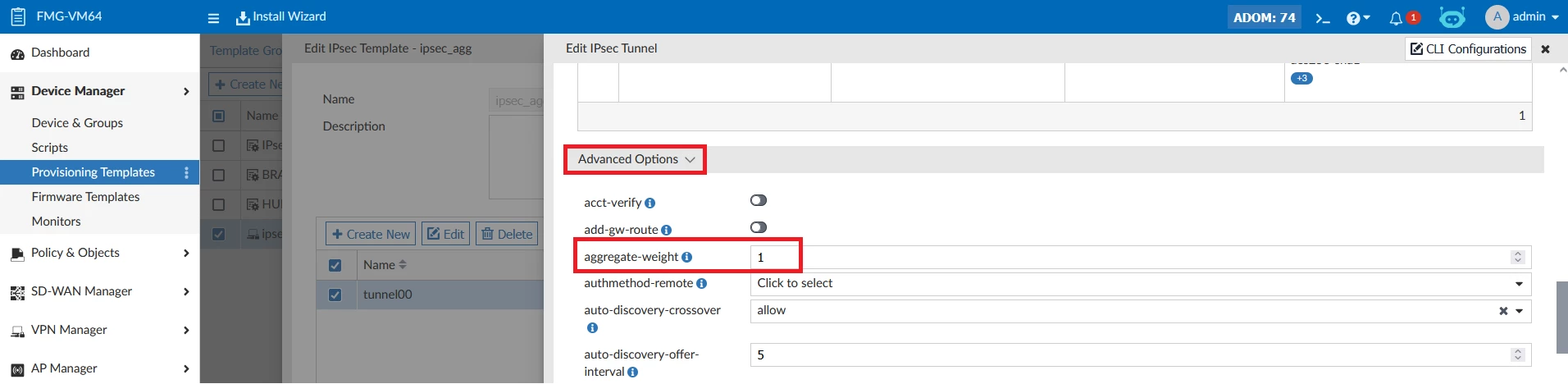

• Under 'Advanced Options', set the aggregate-weight (default is 1).

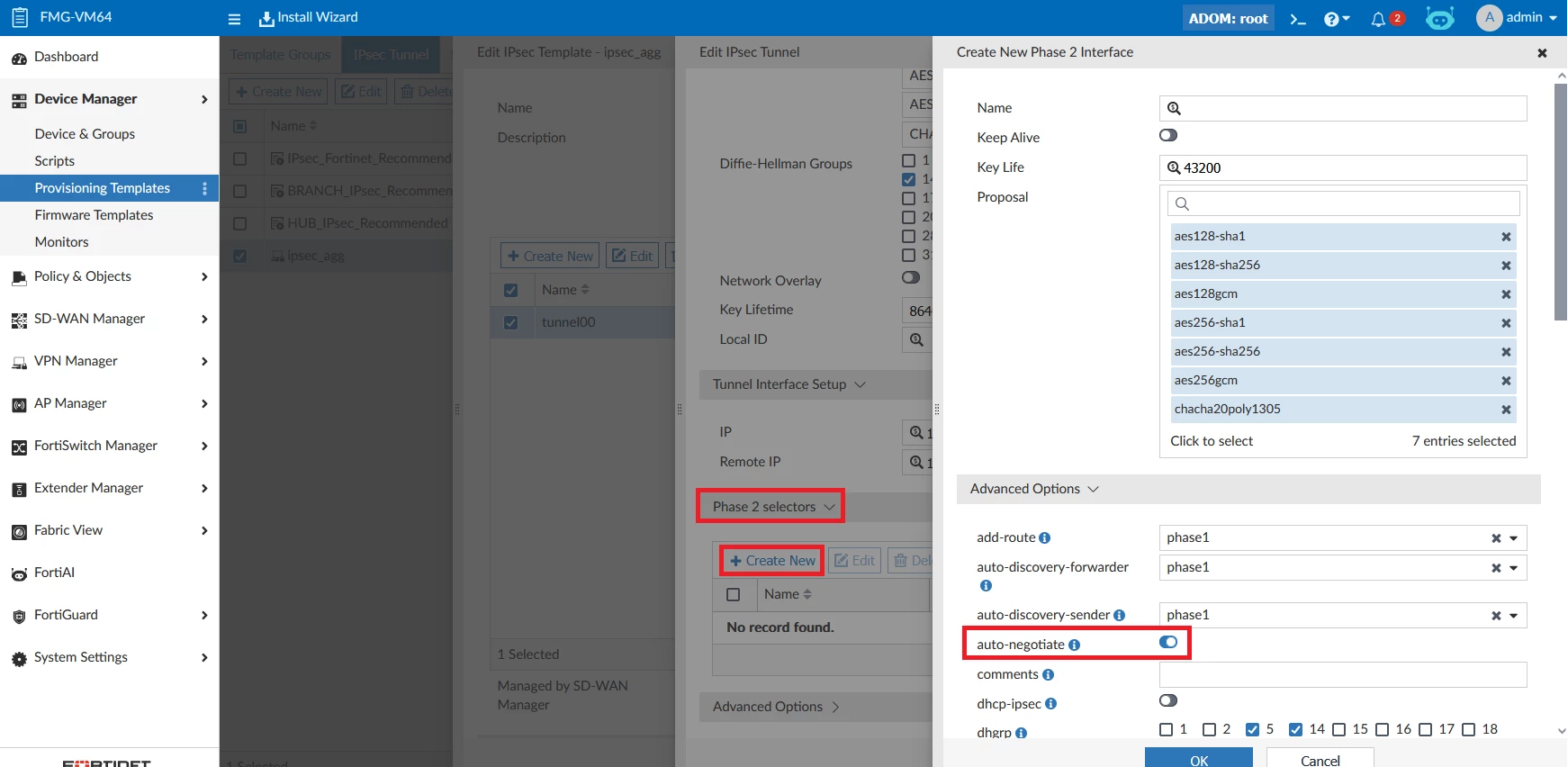

• Create the phase2-interface and under 'Advanced Options' enable 'auto-negotiate'.

• Assign the IPsec Template to a device.
• Push the tunnels to the device(s) using the Install Wizard.

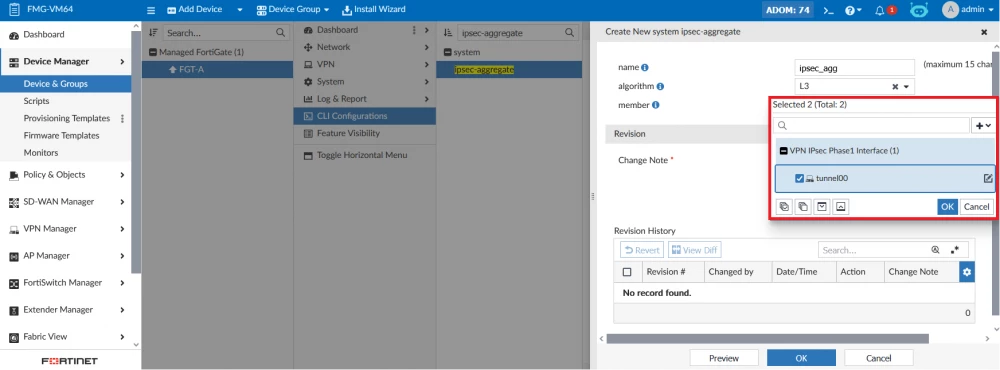

• In Device Manager -> Device & Groups -> Managed FortiGate(s) -> Select the device -> CLI Configurations -> Search for 'ipsec-aggregate' -> Under 'system' select 'ipsec-aggregate' -> Create New and add the desired member tunnel(s). Select OK to save.

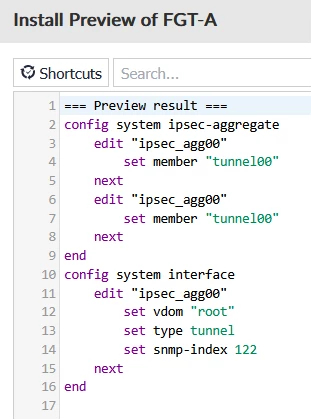

• Push the ipsec-aggregate config to the device(s) using the Install Wizard.

• Add required static routes and policies.

Option 2: Create Tunnels on Device Database.

• In Device Manager -> Device & Groups -> Managed FortiGate(s) -> Select the device -> VPN -> IPsec Phase1.

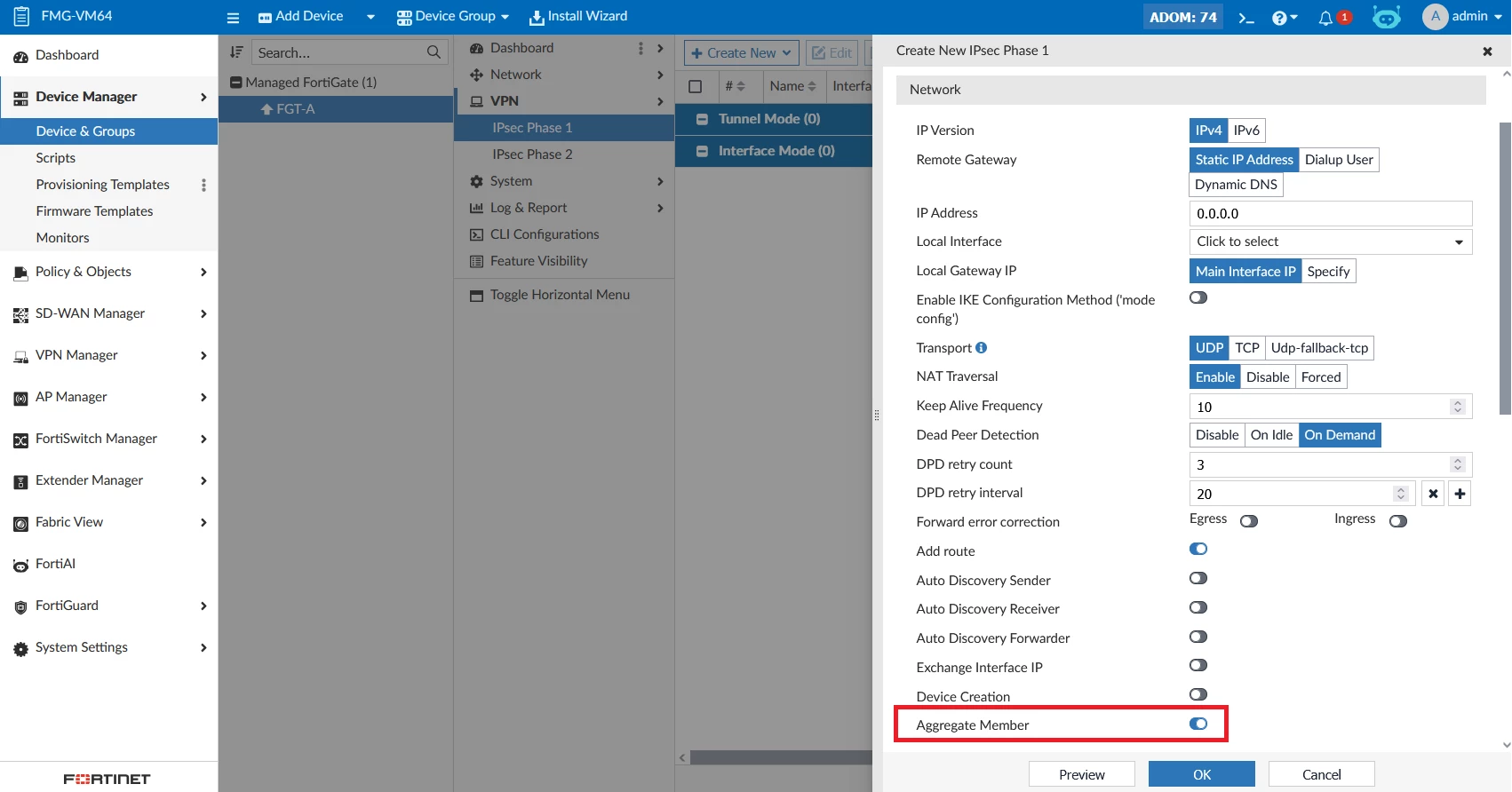

• Create New Phase1 Interface Mode tunnel and enable 'Aggregate Member' (in v7.4 under 'Advanced..(XAUTH,NAT-traversal,DPD)'.

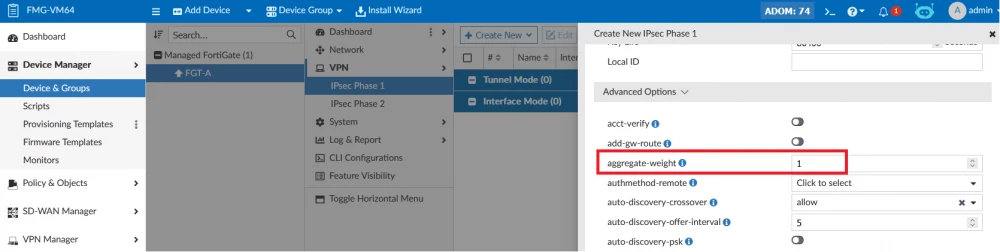

• Set aggregate-weight under Advanced Options:

• In Device Manager -> Device & Groups -> Managed FortiGate(s) -> Select the device -> VPN -> IPsec Phase2.

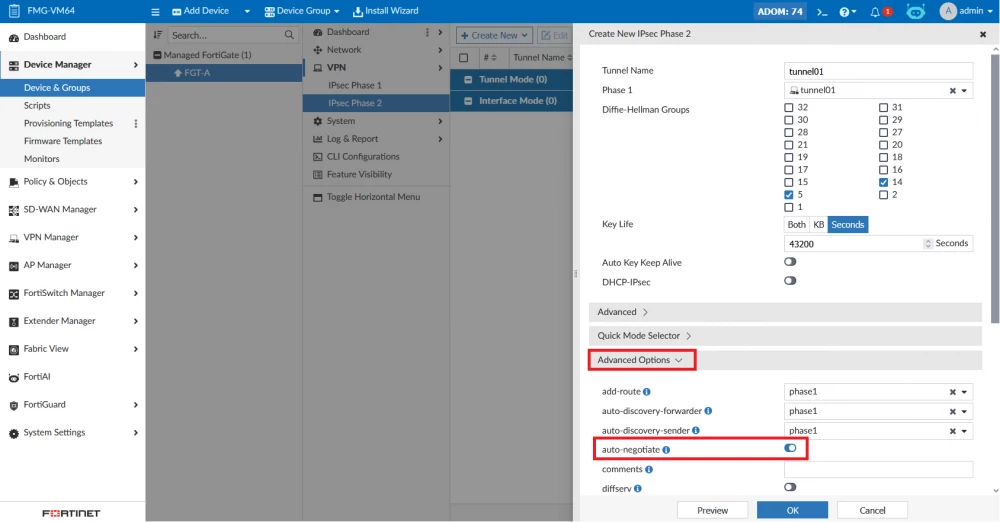

• Create a new Phase2 Interface Mode tunnel and enable 'auto-negotiate' under 'Advanced Options'.

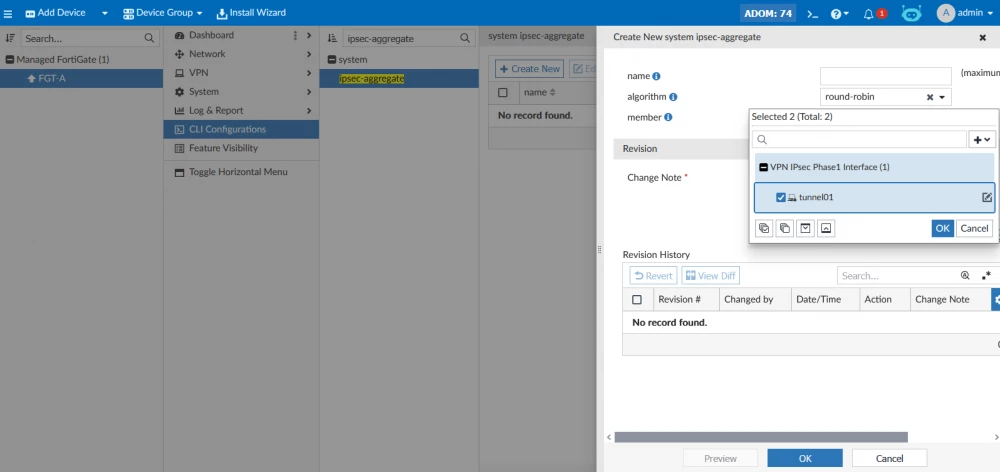

• In Device Manager -> Device & Groups -> Managed FortiGate(s) -> Select the device -> CLI Configurations -> Search for 'ipsec-aggregate' -> Under 'system' select 'ipsec-aggregate' -> Create New and add the desired member tunnel(s). Select OK to save.

• Push the config to the device(s) using the Install Wizard.
• Add required static routes and policies.

Note:

Script can also be used to add the config to either the Device Database or directly to the FortiGate. Refer to the document: Scripts.

Option 3: Using CLI Template.

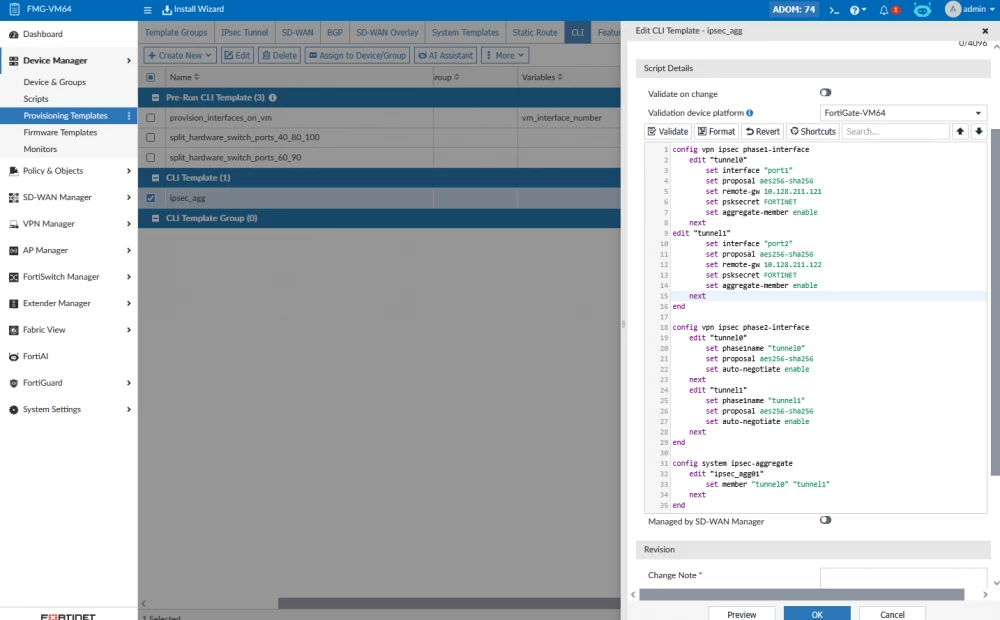

• Under Device Manager -> Provisioning Templates -> CLI -> Create New -> CLI Template. Refer to the document: Adding CLI templates.
• Add script of creating phase1-interface, phase2-interface, and ipsec-aggregate.

config vpn ipsec phase1-interface

    edit "<TUNNEL_1>"

        set interface "<INTERFACE>"

        set proposal <Algo - for example: aes256-sha256>

        set remote-gw <REMOTE_GW>

        set psksecret <PSK>

        set aggregate-member enable

    next

    edit "<TUNNEL_2>"

        set interface "<INTERFACE>"

        set proposal <Algo - for example: aes256-sha256>

        set remote-gw <REMOTE_GW>

        set psksecret <PSK>

        set aggregate-member enable

    next

end

config vpn ipsec phase2-interface

    edit "<TUNNEL_1>"

        set phase1name "<TUNNEL_1>"

        set proposal <Algo - for example: aes256-sha256>

        set auto-negotiate enable

    next

    edit "<TUNNEL_2>"

        set phase1name "<TUNNEL_2>"

        set proposal <Algo - for example: aes256-sha256>

        set auto-negotiate enable

    next

end

config system ipsec-aggregate

    edit "<IPSEC_AGG_NAME>"

        set member "<TUNNEL_1>" "<TUNNEL_2>"

    next

end

• Assign the CLI template to a device(s).
• Push the config to the device(s) using the Install Wizard.
• Add required static routes and policies.
