Technical Tip: How to create Certificate Template and assign it to a device using JSON API

  • June 17, 2025
  • 0 replies
  • 512 views
Description This article describes how to create a Certificate Template and generate certificates for FortiGates using the FortiManager JSON API.
Scope FortiManager.
Solution
FortiManager Certificate Template has two types of certificate templates:
  • Local: FortiManager itself acts as a Certificate Authority.
  • External: Uses the Simple Certificate Enrollment Protocol (SCEP) to enroll with an external Certificate Authority.



  1. Add Template:
  • Local Certificate Template:



{
    "method": "add",
    "params": [
        {
            "data": {
                "name": "{{CERT_NAME}}",
                "digest-type": "sha256",
                "key-size": "4096",
                "key-type": "rsa",
                "type": "local",
                "organization-unit": "{{OU}}",
                "organization": "{{ORG}}",
                "city": "{{CITY}}",
                "email": "{{EMAIL}}",
                "state": "{{STATE}}",
                "country": "{{COUNTRY}}"
            },
            "url": "/pm/config/adom/{{ADOM}}/obj/certificate/template"
        }
    ],
    "id": "1",
    "session": "{{session}}"
}

  • External Certificate Template: Any external Certificate Server supporting Simple Certificate Enrollment Protocol (SCEP) can be used, including FortiAuthenticator.

{
    "method": "add",
    "params": [
        {
            "data": {
                "name": "{{CERT_NAME}}",
                "digest-type": "sha256",
                "key-size": "4096",
                "key-type": "rsa",
                "type": "external",
                "organization-unit": "{{OU}}",
                "organization": "{{ORG}}",
                "city": "{{CITY}}",
                "email": "{{EMAIL}}",
                "state": "{{STATE}}",
                "country": "{{COUNTRY}}",
                "id-type": "host-ip",
                "subject-name": "{{IP}}",
                "scep-server": "{{SCEP_Server_URL}}",
                "scep-password": "{{SCEP_Challenge_Password}}}",
                "scep-ca-identifier": "{{SCEP_Identifier}}"
            },
            "url": "/pm/config/adom/{{ADOM}}/obj/certificate/template"
        }
    ],
    "id": "1",
    "session": "{{session}}"
}

  1. Generate Certificate:

{
    "method": "exec",
    "params": [
        {
            "url": "/securityconsole/sign/certificate/template",
            "data": {
                "adom": "root",
                "template": "adom/{{ADOM}}/obj/certificate/template/{{CERT_NAME}}",
                "scope": [
                    {
                        "name": "{{FortiGate_Device_Name}}",
                        "vdom": "root"
                    }
                ]
            }
        }
    ],
    "id": "1",
    "session": "{{session}}"
}



This creates a new Task. In this case, task #5 - check the task to see progress:


{
    "method": "get",
    "params": [
        {
            "url": "/task/task/5"
        }
    ],
    "id": "1",
    "session": "{{session}}"
}

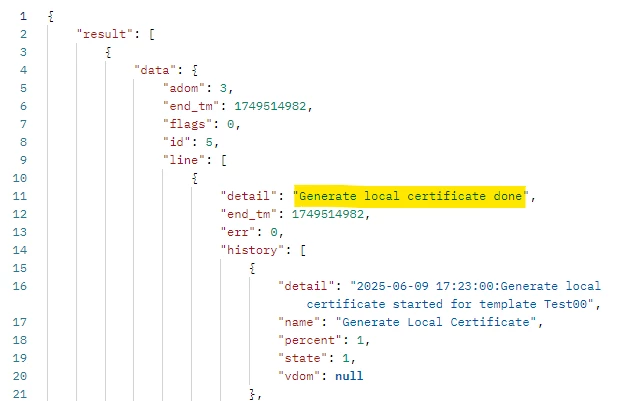

Sample output:

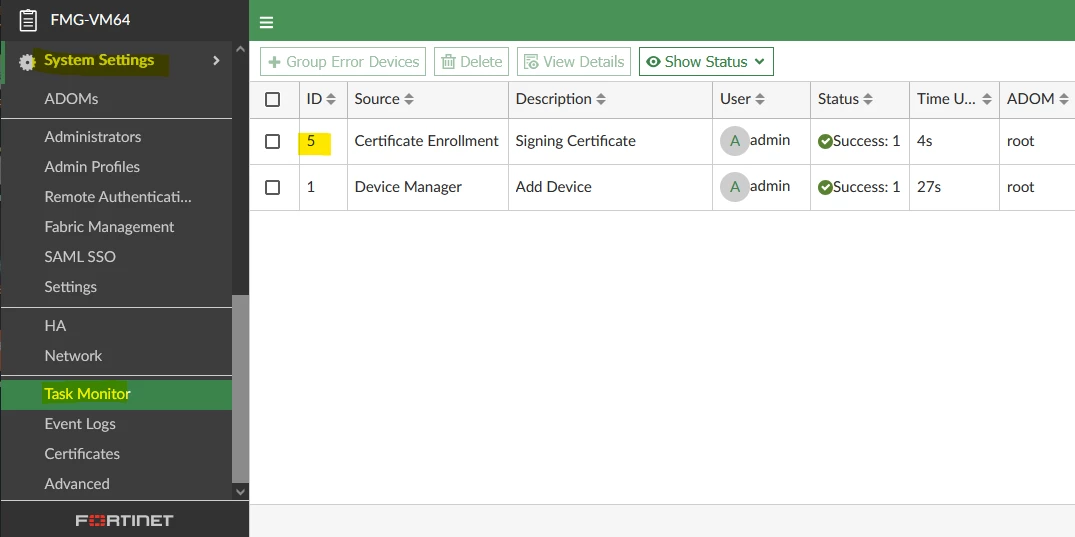

The same Task can be checked in FortiManager GUI: System Settings -> Task Monitor:




  1. Check the newly generated certificate in the FortiManager Device Database for the FortiGate:

{
    "method": "get",
    "params": [
        {
            "url": "/pm/config/device/{{FortiGate_Device_Name}}/vdom/{{VDOM}}/vpn/certificate/local/{{CERT_NAME}}"
        }
    ],
    "id": "1",
    "session": "{{session}}"
}

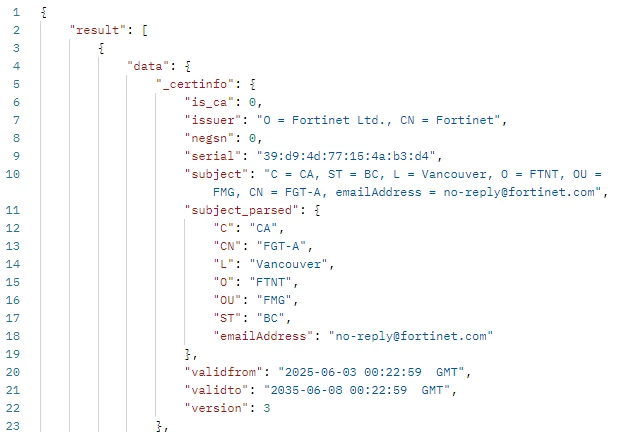

Sample output:

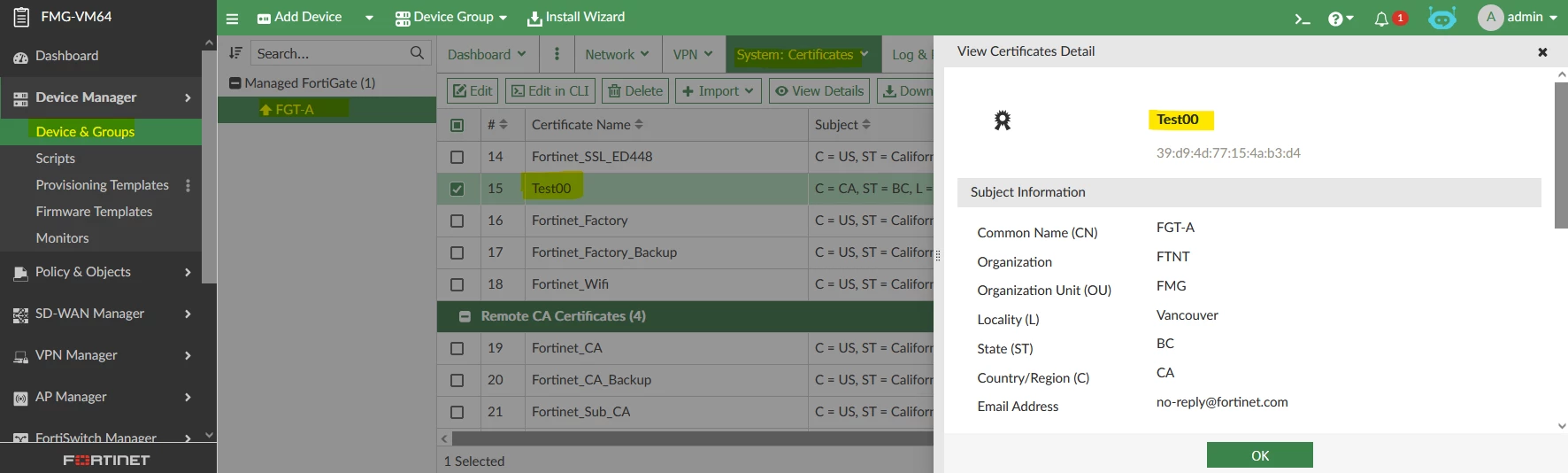

On FortiManager GUI: Device Manager -> Device & Objects -> Managed FortiGate -> Select the FortiGate > System -> Certificates:



Note:
In case the certificate generation fails (in step 2), use the debug commands below to collect logs:

diagnose debugs application securityconsole 255
diagnose de en

Attached is the Postman API collection, which can be imported directly into Postman
