Technical Tip: How to configure TACACS+ authentication for managed FortiGate from FortiManager

  • February 23, 2026
  • 0 replies
  • 306 views
Description This article describes the general steps to create & configure TACACS+ remote authentication for a managed FortiGate from FortiManager.
Scope FortiManager, FortiGate.
Solution
  1. Enable TACACS+ from feature visibility:

FortiManager -> Policy & Object -> User & Authentication -> Tools -> Feature Visibility -> TACACS+ Servers.

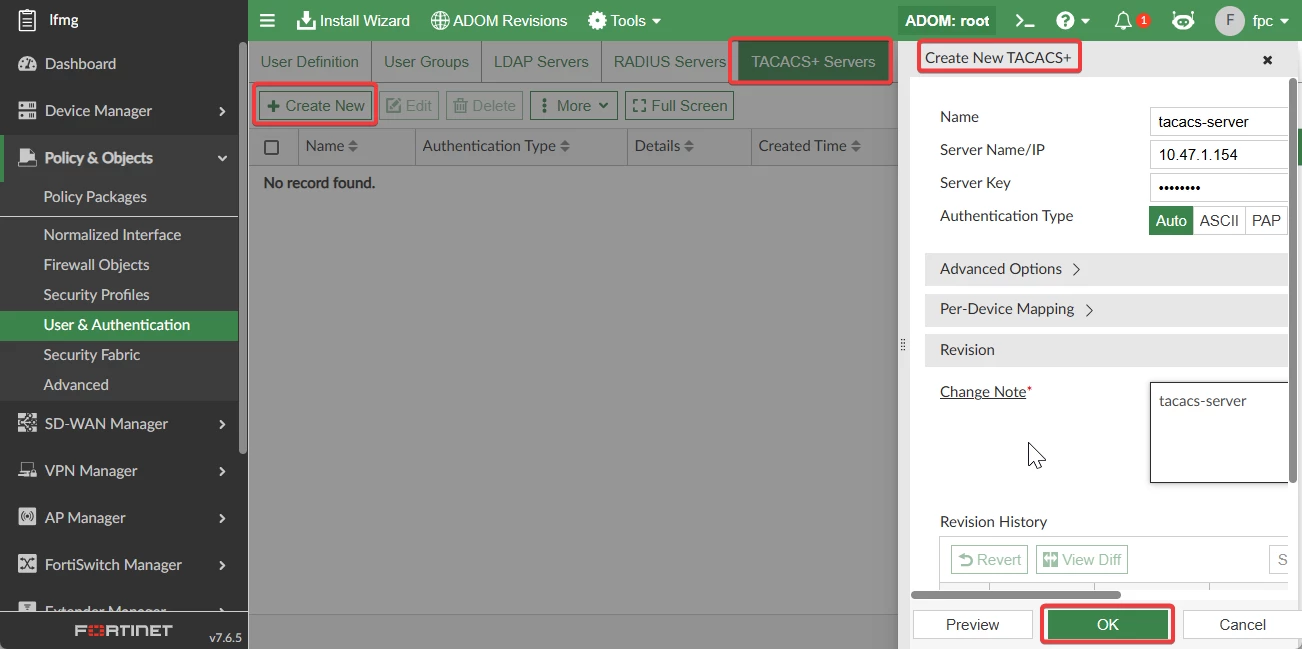

  1. Create TACACS+ Servers under FortiManager -> Policy & Object -> User & Authentication -> TACACS+ Servers -> Create New.

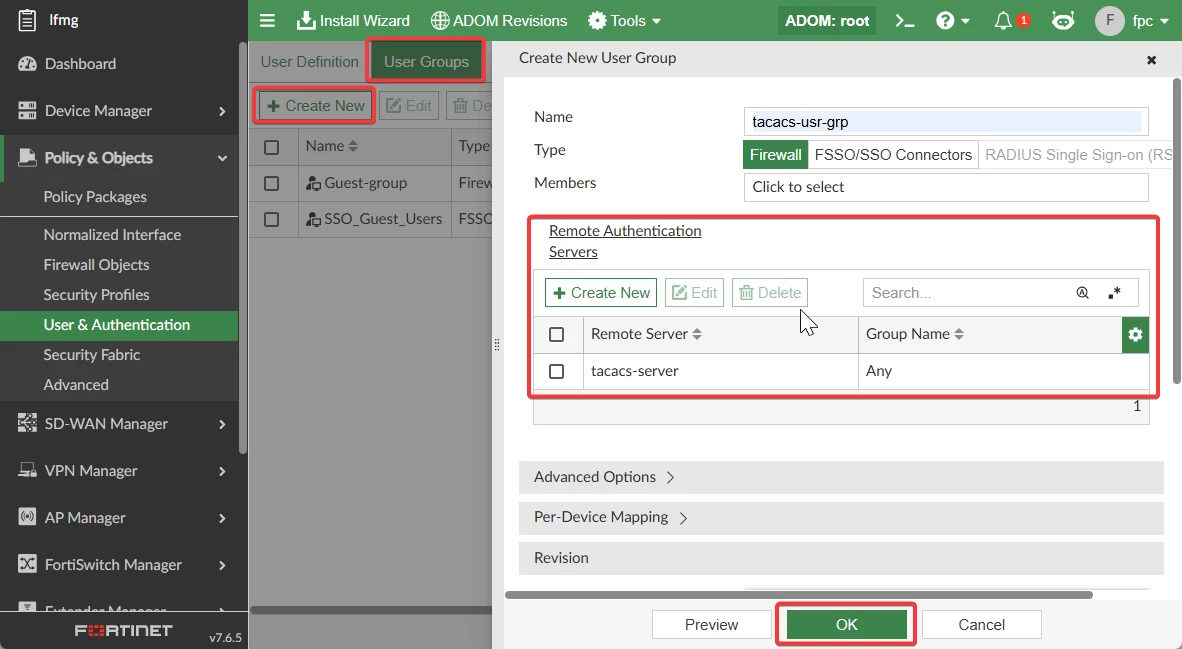

  1. Create a User Group and add TACACS+ Servers as members: FortiManager -> Policy & Object -> User & Authentication -> User Groups -> Create New.

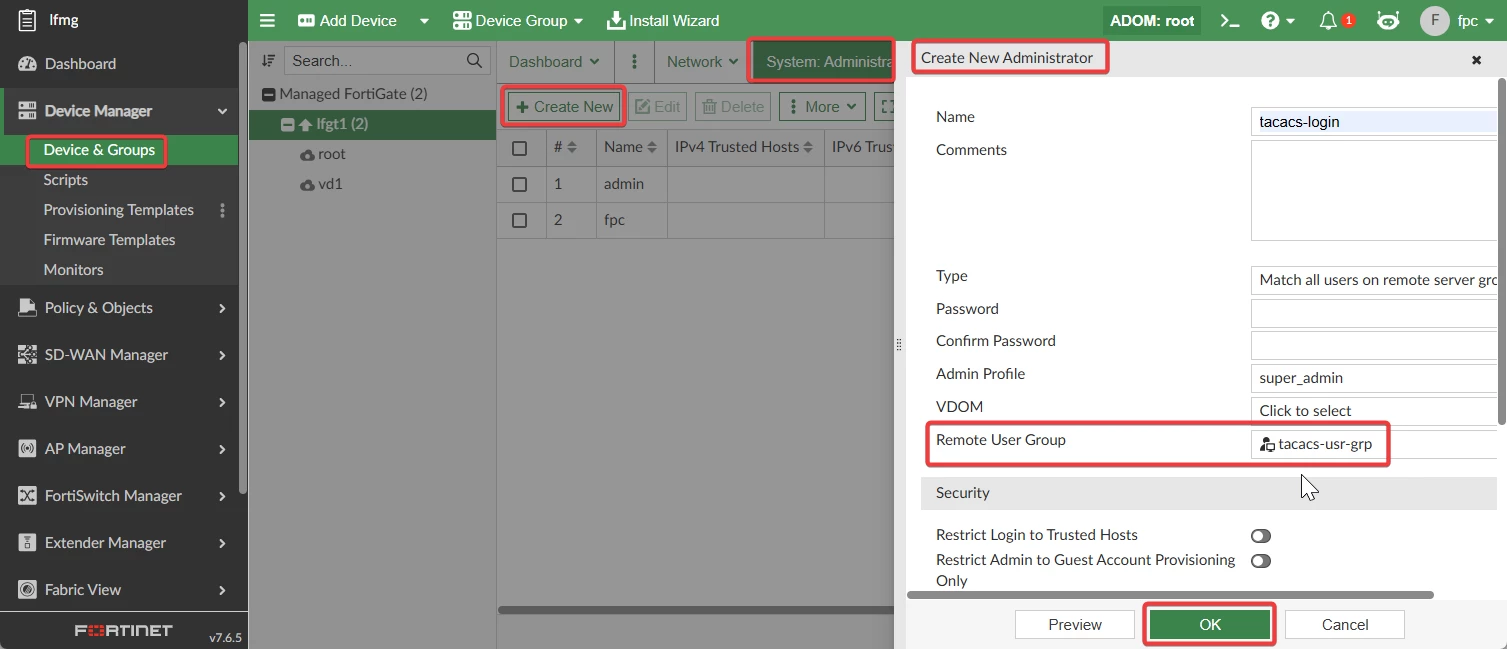

  1. Proceed to create an admin user for remote login: FortiManager -> Device Manager -> select device -> System -> Administrator -> Create New.

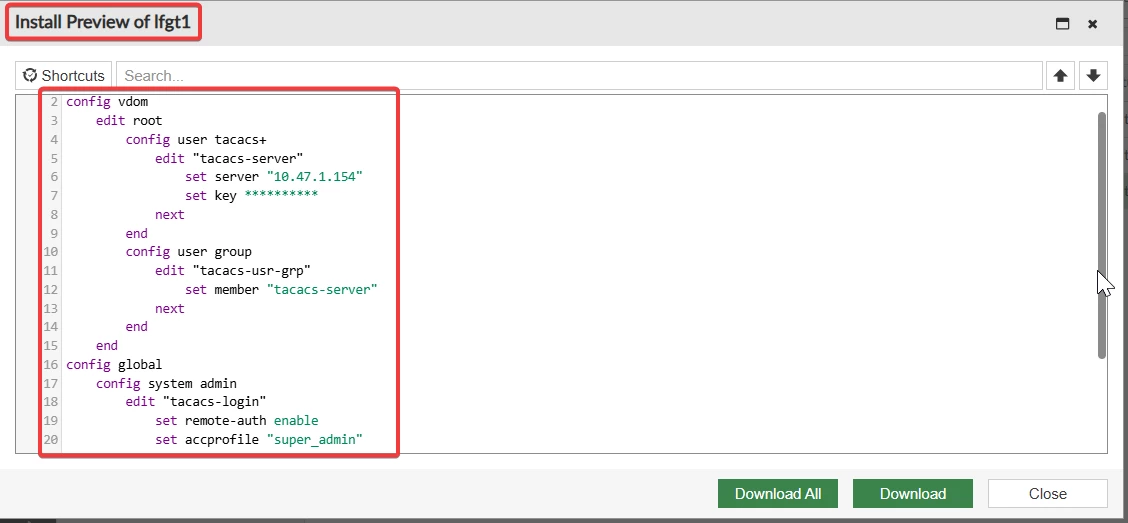

  1. Proceed to 'Install Policy' and validate the 'Install Preview'.





  1. Once the 'Install Policy' completes, proceed to test the login FortiGate with the TACACS+ user.

Note: To get FortiGate TACACS configuration and diagnose commands for verification, refer to Technical Tip: How to configure TACACS+ authentication and authorization in FortiGate.
