Technical Tip: How to configure Radius over TLS (RADSEC) using FortiAuthenticator as Radius Server

FortiAuthenticator:

• Make sure FortiAuthenticator has enabled RADSEC:

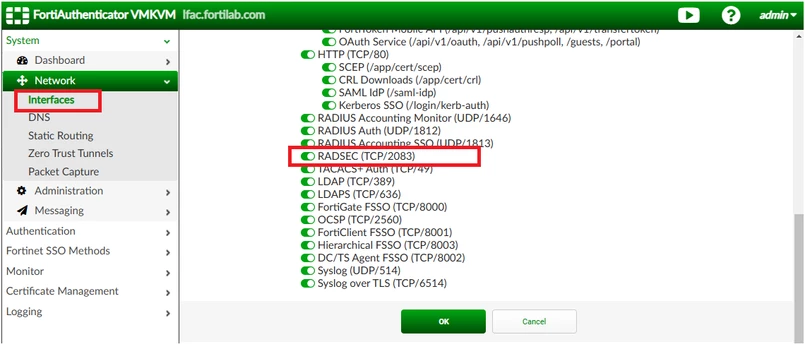

  FortiAuthenticator -> System -> Network -> Interfaces -> Enable RADSEC.

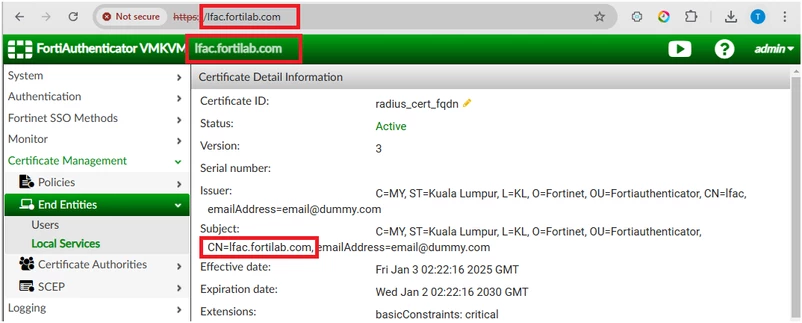

• Make sure RADSEC certificate -> CN has FortiAuthenticator FQDN:
  • 'radius_cert_fqdn' will be used as the RADSEC server certificate in this example.
  • FortiAuthenticator FQDN: lfac.fortilab.com.

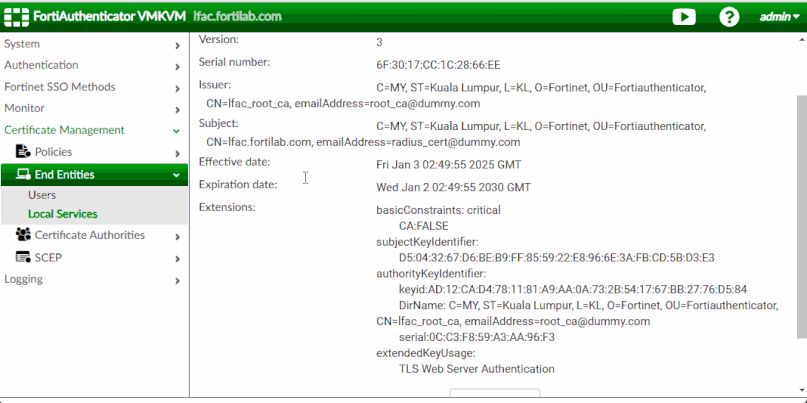

• Export the CA certificate that is used to sign the RADSEC certificate.

'lfac_root_ca' (FortiAuthenticator Local CA) is used to sign the 'radius_cert_fqdn' certificate.

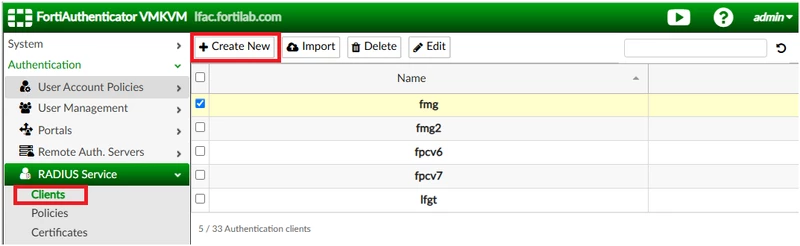

• Create new Radius Clients:
  FortiAuthenticator -> Authentication -> RADIUS Service -> Clients -> Create New.

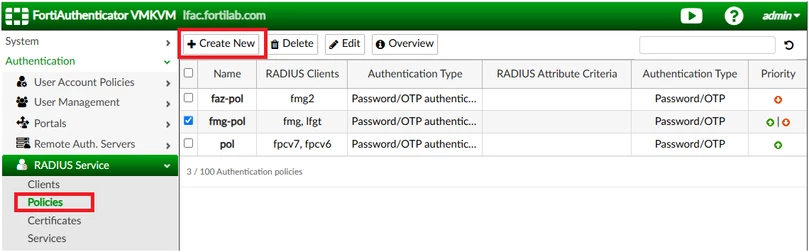

• Create new Radius Policies:
  FortiAuthenticator -> Authentication -> RADIUS Service -> Policies -> Create New.

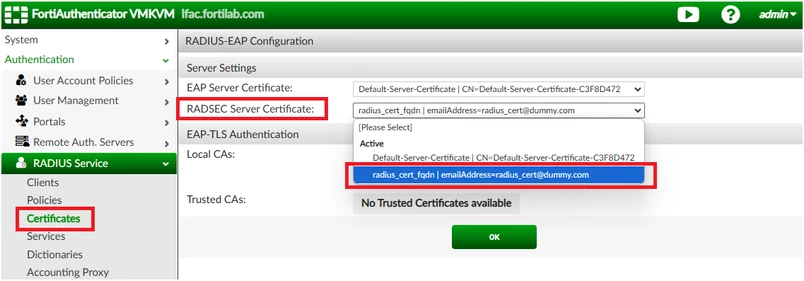

• Select RADSEC Server certificate:
  FortiAuthenticator -> Authentication -> RADIUS Service -> Certificates -> Select the correct certificate.

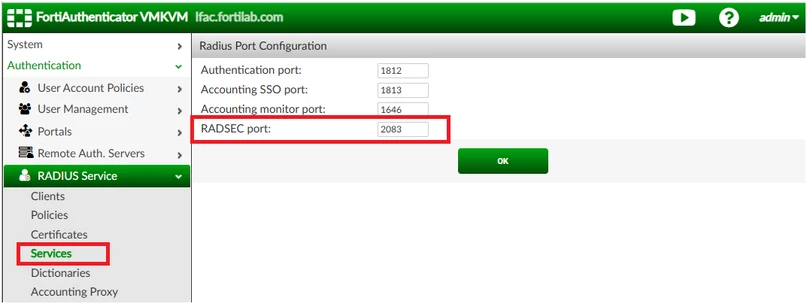

• RADSEC port:
  FortiAuthenticator -> Authentication -> RADIUS Service -> Services -> Capture/edit RADSEC port.

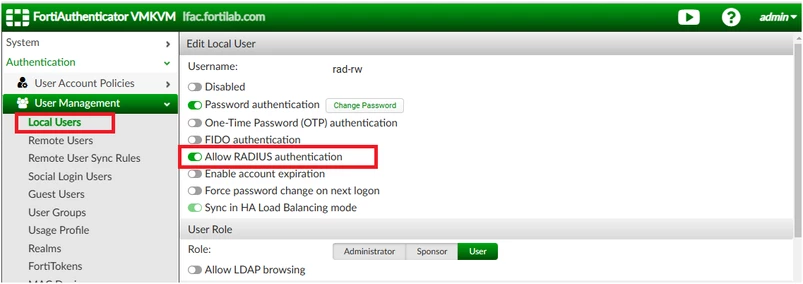

• Allow RADIUS authentication for FortiAuthenticator users:
  FortiAuthenticator -> Authentication -> User Management.



FortiManager:

• Import RADSEC server certificate:

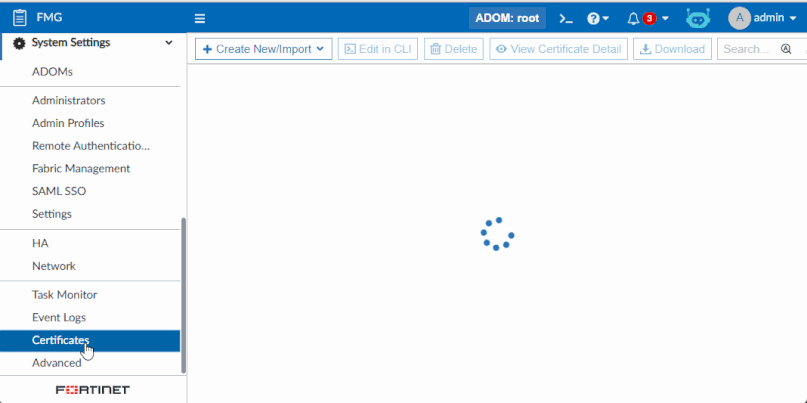

  FortiManager -> System Settings -> Certificates -> Import -> CA Certificate.

• Create and configure Radius remote authentication server:

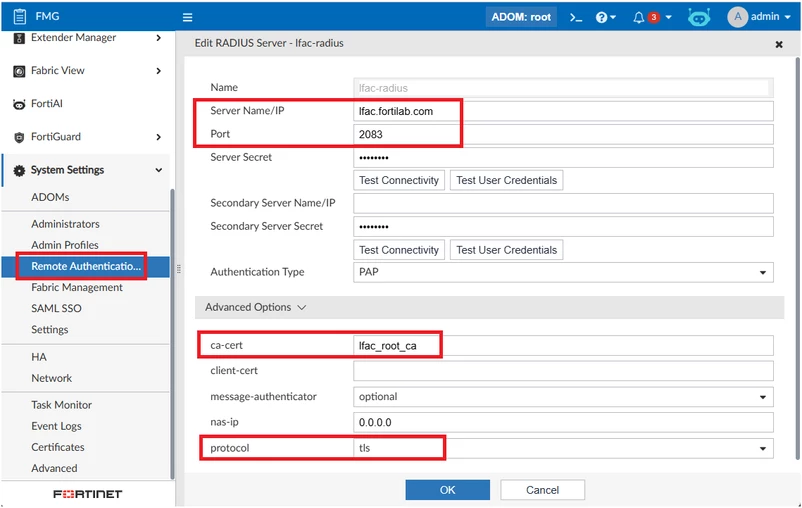

  FortiManager -> System Settings -> Remote Authentication server -> Create New -> Radius Server.

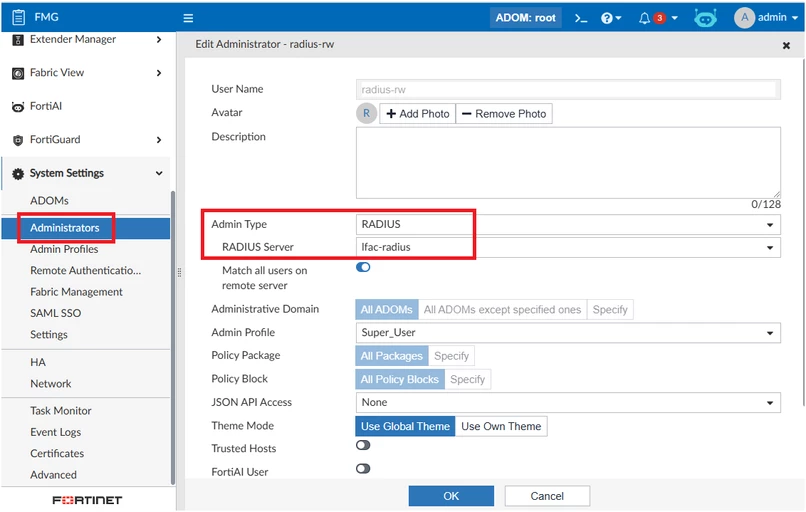

• Create Administrator with RADIUS type:

Wildcard users will be used as an example:
FortiManager -> System Settings -> Administrators -> Create New.

Test Scenario:

Go to FortiManager/FortiAnalyzer GUI and log in with the Radius user.

Troubleshooting guide:

• Enable debugging and look for any error message from the debug output:

diagnose debug application auth 255

diagnose debug timestamp enable

diagnose debug enable

• Once debug is enabled, log in with the Radius user and verify the debug output log.

Sample output:

FMG # diag debug application auth 255
FMG # diag debug timestamp enable
FMG # diag debug enable
2025-01-03 11:26:46 s81: auth request: user=rad-rw from=GUI(10.10.0.21)
2025-01-03 11:26:46 s81: wildcard admin: radius-rw
2025-01-03 11:26:46 s81: start radius: lfac-radius
2025-01-03 11:26:46 s81:lfac-radius: connecting to server 0: lfac.fortilab.com ip=10.10.10.10 port=2083/tcp
2025-01-03 11:26:46 s81:lfac-radius: send request: type=pap id=26
2025-01-03 11:26:46 s81:lfac-radius: TLSv1.3 connected using TLS_AES_256_GCM_SHA384
2025-01-03 11:26:46 s81:lfac-radius: got reply: code=accept(2) id=26
2025-01-03 11:26:46 s81:lfac-radius: Ftnt-Group: write
2025-01-03 11:26:46 s81:lfac-radius: success
2025-01-03 11:26:46 s81: wildcard admin matched: radius-rw
2025-01-03 11:26:46 s81: auth result: success

• To disable debug output:



diagnose debug reset
diagnose debug disable
