Technical Tip: FortiManager Ports
Description
This article describes the FortiManager Ports.
Solution

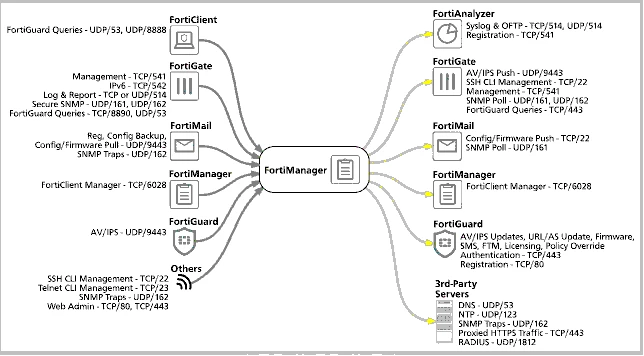

The following table identifies the incoming ports for FortiManager and how the ports interact with other products:
Incoming ports | ||
| Product | Purpose | Protocol and Port |
|---|---|---|
| FortiGate
| IPv4 FGFM management | TCP/541 |
| IPv6 FGFM management | TCP/542 | |
| WebFilter queries, AV & IPS updates* | UDP/53, UDP/8888 | |
| TCP/80, TCP/8888 | ||
| Antispam* | TCP/8889 | |
| UDP/8889 | ||
| FortiGuard and FortiClient Web Filter and Email Filter* | TCP/8900 | |
| Registration for license validation and UTM updates (AV, IPS)* | TCP/8890, TCP/443 | |
| Logging (all Fortinet products) | OFTP | TCP/514 |
| FortiManager
| HA | TCP/5199 |
| Log aggregation server (requires FortiManager 800 series or higher) | TCP/300 | |
| File query/AntiVirus query service** | TCP/8900 | |
| Cascade mode for FortiClient AV packages update | TCP/8891 | |
| GeoIP service** | TCP/8900 | |
| FortiGuard and FortiClient Web Filter and Email Filter* | TCP/8900 | |
| Non-Fortinet products | Syslog | UDP/514, TCP/514 |
| Chromebook | Logging | TCP/8443 |
| Management
| Ping | ICMP |
| SSH | TCP/22 | |
| HTTP | TCP/80 | |
| HTTPS | TCP/443 | |
| Web Service (SOAP/XML API) | TCP/8080 | |
| JSON API (HTTPS/HTTP respectively) | TCP/443, TCP/80 | |
| SNMP query | UDP/161 | |
| Remote access to FortiOS GUI from FortiManager*** | TCP/8082 | |
| FortiGuard | AV and IPS push updates | UDP/9443 |
* Applies only when FortiManager is acting as a local FortiGuard server.
** In FortiManager 7.4.0, File query/AntiVirus query service uses TCP/8902 and GeoIP service uses TCP/8903.
*** The remote access to FortiOS GUI feature is available in FortiManager 7.4.2 and later.
Outgoing ports | ||
| The following table identifies the outgoing ports for FortiManager and how the ports interact with other products: | ||
| Product | Purpose | Protocol and Port |
|---|---|---|
| FortiGate | IPv4 FGFM management | TCP/541 |
| IPv6 FGFM management | TCP/542 | |
| AV and IPS Push updates* | UDP/9443 | |
| Non-Fortinet
| SMTP email alerts | TCP/25 |
| TACACS+ authentication | TCP/49 | |
| LDAP queries | TCP/389, UDP 389 | |
| LDAPS queries | TCP/636, UDP 636 | |
| Log aggregation client | TCP/3000 | |
| RADIUS authentication | TCP/1812 | |
| DNS lookup | UDP/53 | |
| NTP synchronization | UDP/123 | |
| SNMP traps | UDP/162 | |
| Syslog, logforwarding | UDP/514, TCP/514 | |
| Google Maps integration** | ||
| FortiManager
| HA sync | TCP/5199 |
| FortiGuard and FortiClient Web Filter and Email Filter* | TCP/8900 | |
| FortiGuard | Firmware images update | TCP/443 |
| Sprite Map and webGUI updates | ||
| AV & IPS updates | ||
| Web Filtering and Anti-Spam updates | ||
| File query and GEOIP DB updates | ||
| Google Maps license management | ||
| FortiClient signature updates | ||
| Fortinet Registry | Management Extension Applications download (for example, FortiWLM MEA) | TCP/443, TCP/4443 |
* Applies only when FortiManager is acting as a local FortiGuard server.
** These URLs must be accessible by the admin user's PC for Google Maps integration. See Google Map integration.
Anycast and unicast services | ||
| The following service are accessed by FortiManager: |
| Service | Non-Anycast FQDN address | Anycast domain name |
|---|---|---|
| AV-IPS package | fds1.fortinet.com usfds1.fortinet.com | globalupdate.fortinet.net globalupdate2.fortinet.net* usupdate.fortinet.net usupdate2.fortinet.net* euupdate.fortinet.net |
| AV-IPS packages  (FortiClient) | forticlient.fortinet.com usforticlient.fortinet.com
| globalfctupdate.fortinet.net fctusupdate.fortinet.net fcteuupdate.fortinet.net
|
| GeoIP  | gip.fortinet.net usfqsvr.fortinet.net | globalupdate.fortinet.net globalupdate2.fortinet.net* usupdate.fortinet.net usupdate2.fortinet.net * |
| Webfilter AntiSpam Outbreak Prevention Query Category File Query AntiVirus Query | guard.fortinet.net usguard.fortinet.net | globalupdate.fortinet.net globalupdate2.fortinet.net* usupdate.fortinet.net usupdate2.fortinet.net* |
| IoT Collect | Service only in Anycast | globalupdate.fortinet.net usupdate.fortinet.net |
| Device info Query | Service only in Anycast | globaldevquery.fortinet.net eudevquery.fortinet.net |
| FortiCloud FortiClient | forticlient.fortinet.net | globalfctupdate.fortinet.net fcteuupdate.fortinet.net |
* These domain names are used when the FortiGuard Anycast source is set to AWS in FortiManager. See the FortiManager CLI Reference.
Note that, while a proxy is configured, FortiManager uses the following URLs to access the FortiGuard Distribution Network (FDN) for the following updates:
fds1.fortinet.com - FortiGate AV/IPS package downloads
guard.fortinet.com - Webfilter/AntiSpam DB and AVfileQuery DB downloads
forticlient.fortinet.com - FortiClient signature package downloads
fgd1.fortigate.com:8888 - FortiClient Webfilter queries to FortiGuard
