Technical Tip: FortiManager/FortiAnalyzer local event logs setup for the external SYSLOG server

Description

This article describes how to set up a syslog to keep track of all changes made under the FortiManager.

Note:

The same settings are available under FortiAnalyzer.

Scope

FortiManager and FortiAnalyzer.

Solution

Syslog is a common format for event logs. It uses UDP / TCP on port 514 by default. Depending on the server's capabilities can be used a custom certificate to create a TLS connection.

Syslog is used for system management and security auditing as well as general information, analysis, and debugging messages. Syslog uses a client-server architecture where a Syslog server listens for and logs messages coming from clients.

The message is labeled with a facility code, indicating the type of system generating the message, and is assigned a severity level.

There are a few main standards: BSD and CSV. For more information about log forwarding review, see Technical Tip: FortiAnalyzer log forwarding CEF version.

The configuration is based on two parts. To set up the settings of the Syslog server (IP, UDP/TCP, Port, Certificate):

config system syslog

    (syslog)# edit Syslog_net_vlan2

     new entry 'Syslog_net_vlan2' added

        (Syslog_net_vlan2)# set ?

*ip                       Syslog server IP address or hostname.

local-cert                Select the local certificate used for a secure connection.

peer-cert-cn              Certificate common name of syslog server. null or '-' means not checking the certificate CN of the syslog server.

*port                     Syslog server port.

*reliable                 Enable/disable reliable connection with syslog server.

secure-connection         Enable/disable connection secured by TLS/SSL.

Under the GUI: go in System Settings -> Advanced -> Syslog Server -> Create New. The other part is to configure the 'syslogd' settings (Syslog name, Status, Severity, Reliable, Facility).

Note:

There is an option to set up to 3 syslogd servers, which can send log data simultaneously.

config system locallog syslogd setting

    (setting)# set ?

 cert                     Select the local certificate used for a secure connection.

 csv                      CSV format.

 facility                 Remote syslog facility.

 reliable                 Enable/disable reliable real-time logging.

 severity                 Least severity level to log.

 status                   Remote syslog log.

 syslog-name              Remote syslog server name.

There is an option to send only specific information to the syslog server with the filter options.

CLI Command:

config sys locallog syslogd filter

(filter)#
set   <----- Modify value.

Example: to disable the fgfm logging to syslog servers as below:

config sys locallog syslogd filter
    set fgfm disable
end

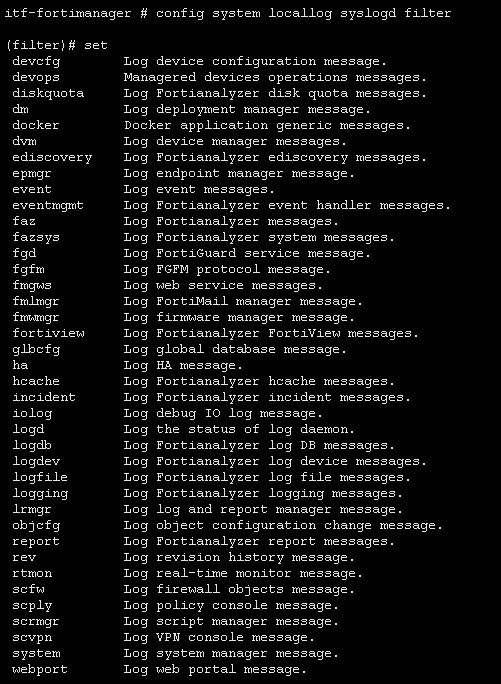

Screenshot to show all options:

Example:

The following steps will provide the basic setup of the syslog service.

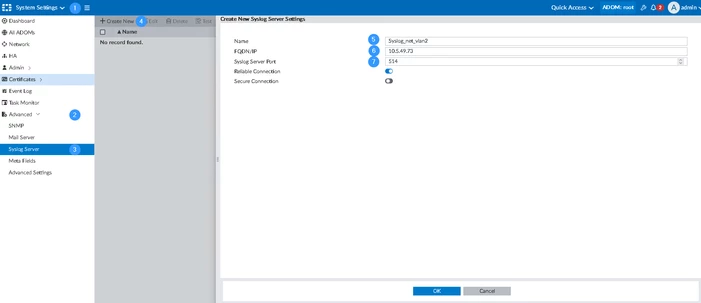

Go under System Settings  -> Advanced -> Syslog Server  -> Create New.

The same settings under the CLI:

config system syslog

    edit "Syslog_net_vlan2"

        set ip "10.5.49.73"

        set reliable enable

    next

end

The next step is to set and enable the same under the 'syslogd' settings.

config system locallog syslogd setting

    (setting)# get

cert                        : (null)

csv                          : disable

facility                   : syslog

reliable                  : disable

severity                  : debug

status                     : enable

syslog-name         : Syslog_net_vlan2

Troubleshooting:

The following commands will provide the current configuration regarding 'syslog'.

get system syslog

get system locallog syslogd setting

To test the current syslog configuration:

diagnose test connection syslogserver <server-name>

diagnose test application logfwd

diagnose debug application logfwd <integer>      Set the debug level of the logfwd.

diagnose debug enable

After the test:

diagnose debug disable

diagnose debug reset

If the connection between the FortiManager and the syslog server is plain (without using SSL and a certificate) can use the sniffing tool to capture the output.

Use the packet capturing options in the FortiManager under the GUI System settings -> Network Interfaces -> Packet capture.

Or under CLI:

diagnose sniffer packet any "host x.x.x.x and port 514" 3 0 a

Also, basic network checks should be made.

diagnose system route list

execute ping x.x.x.x

execute telnet x.x.x.x 514 --> Does not exist on FortiAnalyzer; any telnet tests must be performed from FortiGate with this command, or a third-party tool that offers telnet capabilities.

Note:

Command parameters are case-sensitive. Quotes are always used around the parameters, like in this example 'my_Account'.
