Technical Tip: Fetch total revisions of all managed FortiGates using FortiManager API

• To fetch all revisions of a single device, the following API Request is used:

{
    "id": 1,
    "method": "exec",
    "params": [
        {
            "data": {
                "device": "<Device_Name>"
            },
            "url": "/deployment/get/device/revision"
        }
    ],
    "session": "{{session}}",
    "verbose": 1
}

• Postman Scripts can be used to fetch the total number of all devices.

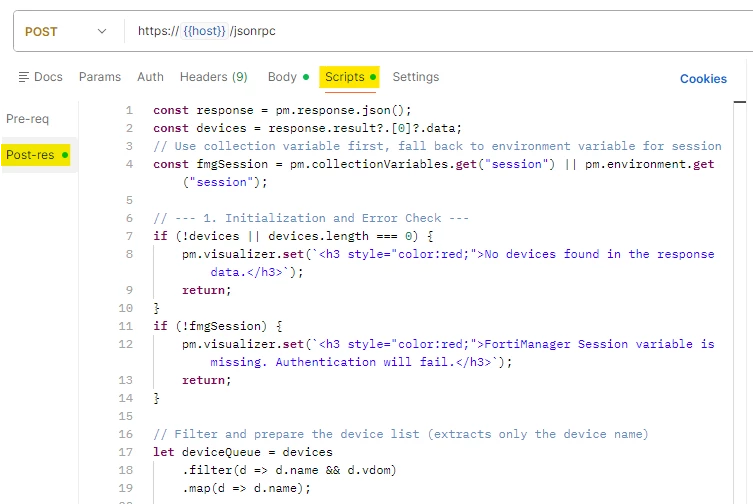

This script executes the entire workflow:

1. Fetches the device list using the API Request below:

{
   "method": "get",
   "params": [
      {
         "url": "/dvmdb/device"
      }
   ],
   "session": "{{session}}",
   "verbose": 1,
   "id": 1
}

2. Loops through each device, making a new asynchronous API call to fetch revision history.

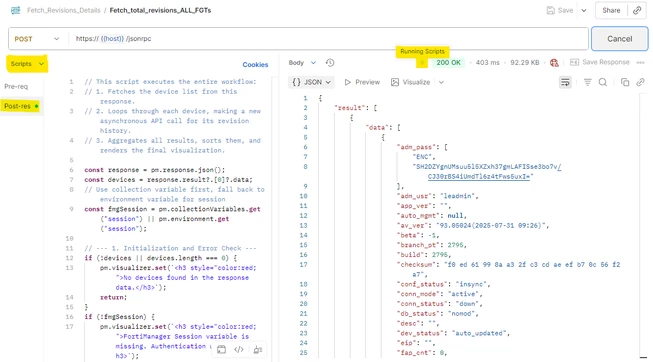

While the script is executing, Postman shows a blinking gray dot labeled Running scripts. When execution finishes, the dot disappears and the Visualization tab renders the final report.

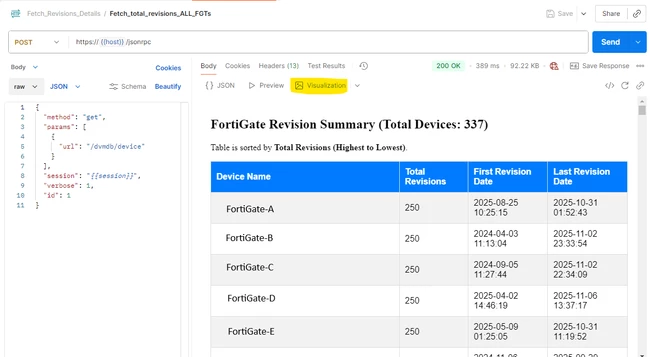

3. Aggregates all results, sorts them, and renders the final output under the Visualization tab.

• The API collection can be imported into Postman (tested with v11.71.7) using the attached file.
• Under the 'Variables' tab of the collection, the following variables are required:
  • host: IP address of FortiManager.
  • ADMIN: FortiManager Admin user.
  • PASSWORD: Admin user password.
