Technical Tip: Create scripts to configure dynamic objects in FortiManager

FortiManager uses a specific syntax for dynamic objects.

In the FortiManager CLI, use the command below to show how a firewall object is configured.

execute fmpolicy print-adom-object <adom_id> <firewall_obj_id> <obj_name>

This is an example of how a firewall address object with dynamic mapping applied is configured:

config firewall address

edit "LAN"

set subnet 10.0.0.0 255.255.255.0

    config dynamic_mapping

     edit "<FGT1_name_on_FMG>"-"<vdom>"

      set subnet 10.1.0.0 255.255.255.0

    next

    edit "<FGT2_name_on_FMG>"-"<vdom>"

     set subnet 10.2.0.0 255.255.255.0

    next

    end

   next

end

Following the same pattern, a CLI script can be created to configure entry massively.

Example:

config firewall address

edit "LAN"

set subnet 10.0.0.0 255.255.255.0
    config dynamic_mapping

     edit "FortiGate_1"-"root"

      set subnet 10.1.0.0 255.255.255.0

     next
     edit "FortiGate_2"-"root"

      set subnet 10.2.0.0 255.255.255.0

     next
     edit "FortiGate_3"-"root"

      set subnet 10.3.0.0 255.255.255.0

     next

     edit "FortiGate_4"-"root"

      set subnet 10.4.0.0 255.255.255.0

     next
<...etc...>

end

next

end

This CLI script must be run on the Policy Package or ADOM Database.

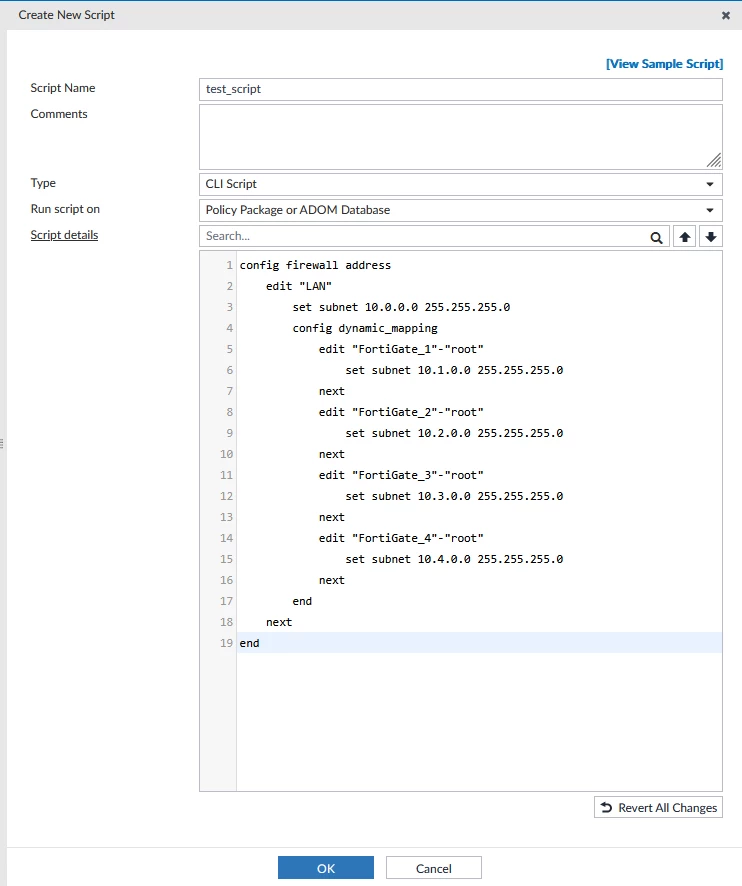

Show of a test CLI script

When prompted to select a policy package during script execution, any policy package can be chosen. The script operates at the ADOM database level, and the selected policy package does not affect the outcome.

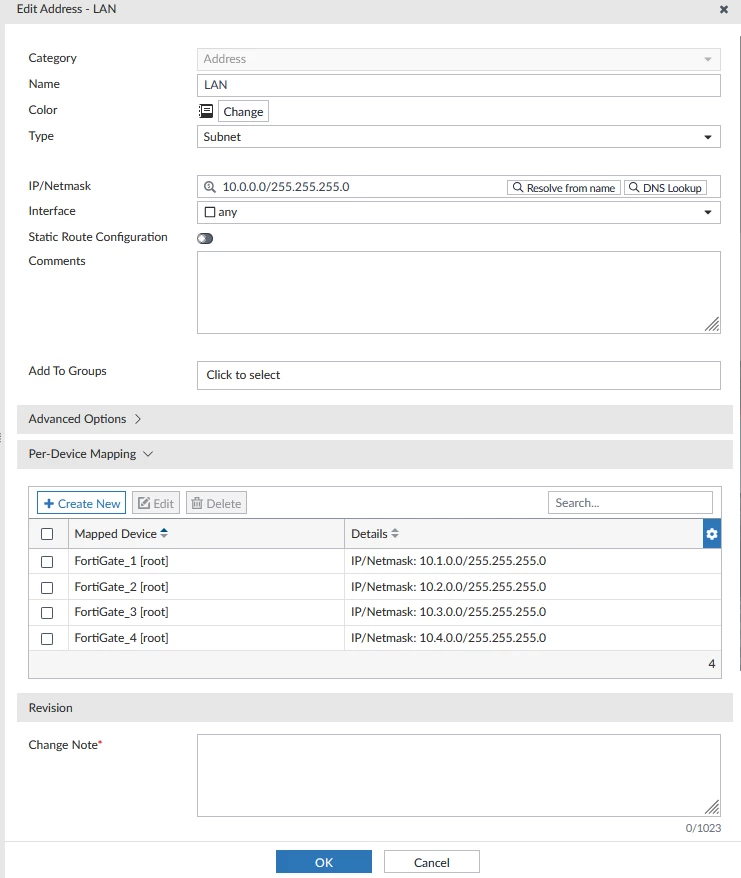

This is the result of the CLI script:

Show of a test CLI script
