Technical Tip: Create ADOM Revisions using API calls in FortiManager

Description

This article describes how to create ADOM Revisions in FortiManager using API calls.

Scope

FortiManager-VM, FortiManager appliances.

Solution

The following is the Request and the expected response, where the ADOM is root.

Request:

{
"method": "add",
"params": [
{
"data": [
{
"created_by": "Fortinet_Lab",
"created_time": "01:57PM",
"desc": "For:New_123 policy",
"locked": 0,
"name": "Adom_Revision_Test",
"version": 0
}
],
"url": "/dvmdb/adom/root/revision"
}
],
"session": "DeJ+U2A7LT1WNV3blTyQJl3lsMbUkMgi3ayI4Y7GckZjVq480eME2TmmHdak+uloglY8bxnnKgnkolFGZqmaVDaH+1rGDqSeXYUl/fflp9vyJcREIK3HQHF1",
"id": 1
}

Response:

{
    "cid": 3,
    "id": 1,
    "result": [
        {
            "data": {
                "version": 1
            },
            "status": {
                "code": 0,
                "message": "OK"
            },
            "url": "/dvmdb/adom/root/revision"
        }
    ]
}

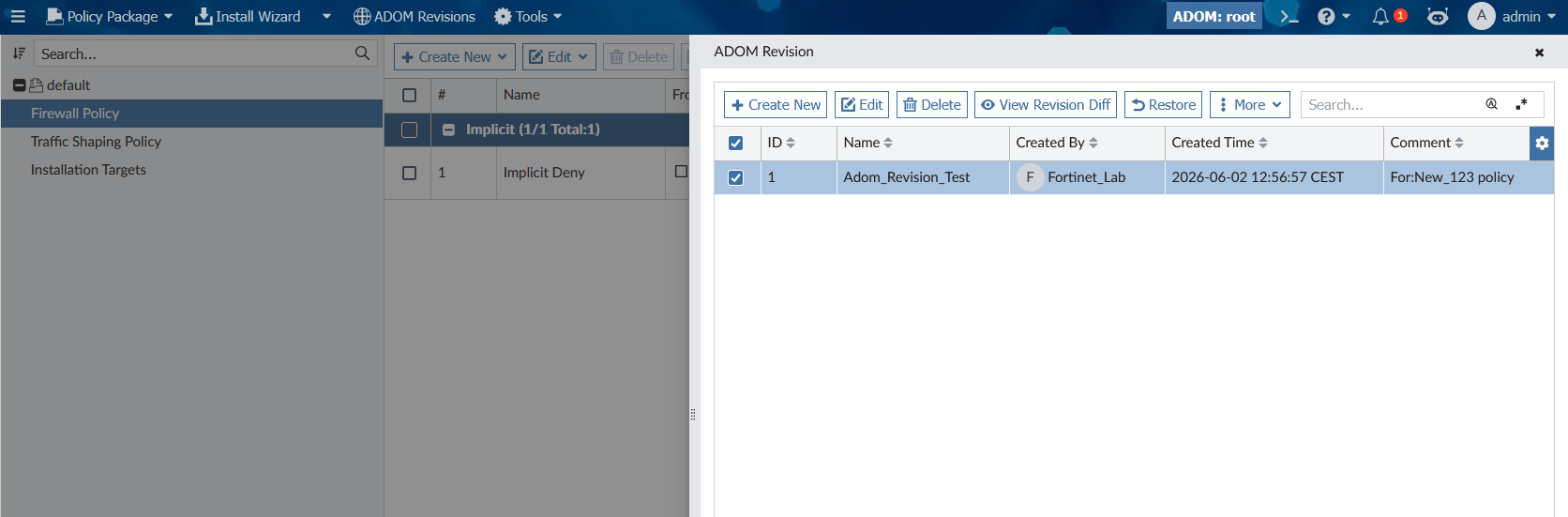

The created ADOM revision:

Troubleshooting:

The following commands can be used on the FortiManager CLI to debug the API calls:

diagnose debug service httpd 255
diagnose debug service main 255
diagnose debug enable
