Technical Tip: Configure FortiManager as local FDN server for FortiWeb to get FortiGuard updates

Description

This article describes how to configure FortiManager to act as a local FortiGuard server for FortiWeb.

Scope

FortiManager.

Solution

• FortiWeb can only receive FortiGuard updates from the FortiManager but cannot be managed in FortiManager. Feature support matrix link for validation: Feature support.

• The supported version of FortiWeb can be found in this article: FortiWeb.

• Supported models of the FortiWeb can be found in this article: FortiWeb models.

Based on the version of FortiManager, the respective version has to be selected in the docs portal to check the supported information.
The command below also helps in verifying the supported version and the models of the Fortinet devices in FortiManager:

diagnose dvm supported-platforms list detail

Configuration to be done on FortiManager and FortiWeb:

Make sure FortiManager has reachability to the FortiGuard server. Sample output below:

diagnose fmupdate view-serverlist fds

Fortiguard Server Comm : Enabled
Server Override Mode   : Loose
FDS   server list      :
Index   Address                    Port            TimeZone        Distance        Source
------------------------------------------------------------------------------------------------------
*0      208.184.237.68             443             9               4               FDNI
 1      208.184.237.67             443             0               5               FDNI
 2      12.34.97.16                443             -5              10              FDNI
 3      208.184.237.66             443             -8              11              FDNI
 4      usfds1.fortinet.com        443             5               0               DEFAULT

FCT   server list      :
Index   Address                    Port            TimeZone        Distance        Source
------------------------------------------------------------------------------------------------------
*0      208.184.237.75             443             -8              11              FDNI
 1      usforticlient.fortinet.net 443             5               0               DEFAULT

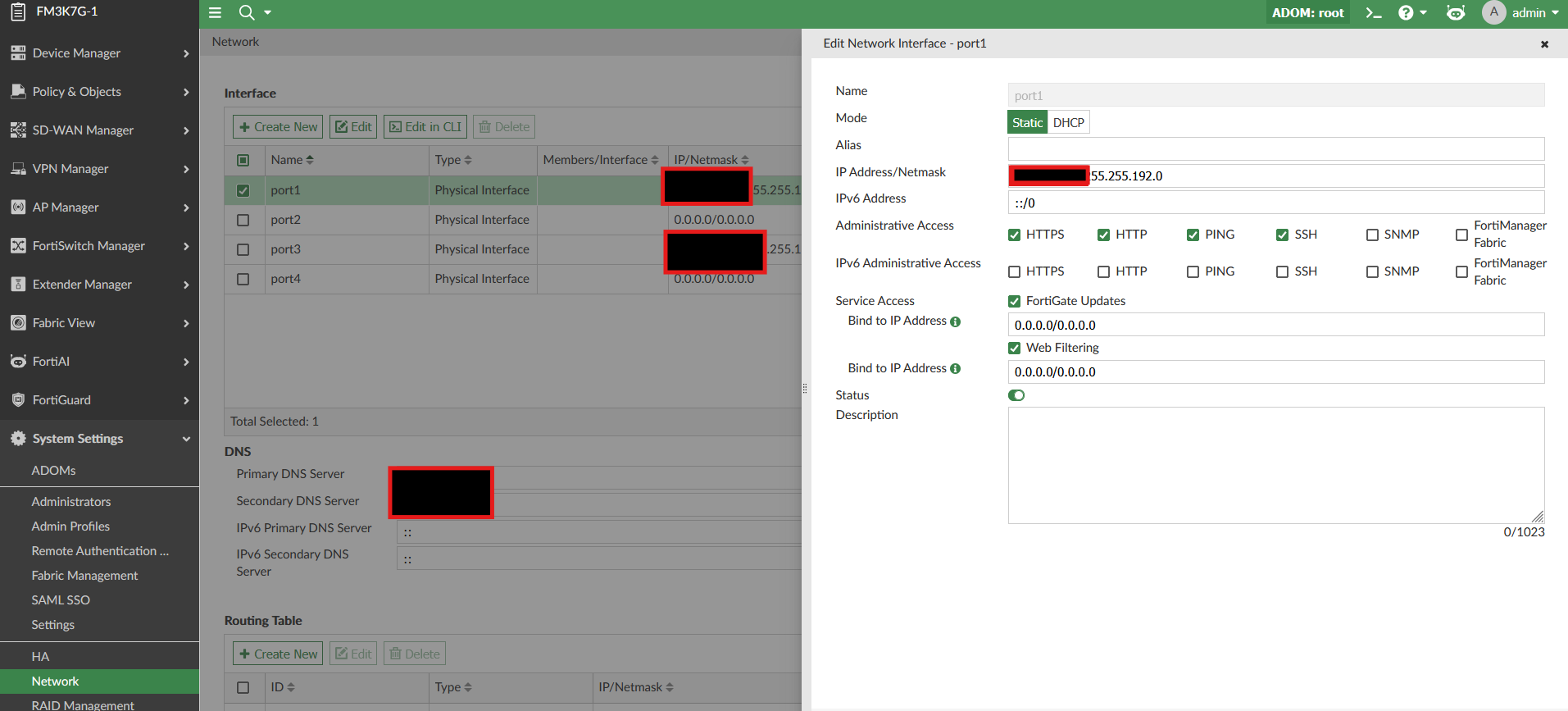

Enable the service access under System Settings -> Network and edit port1.

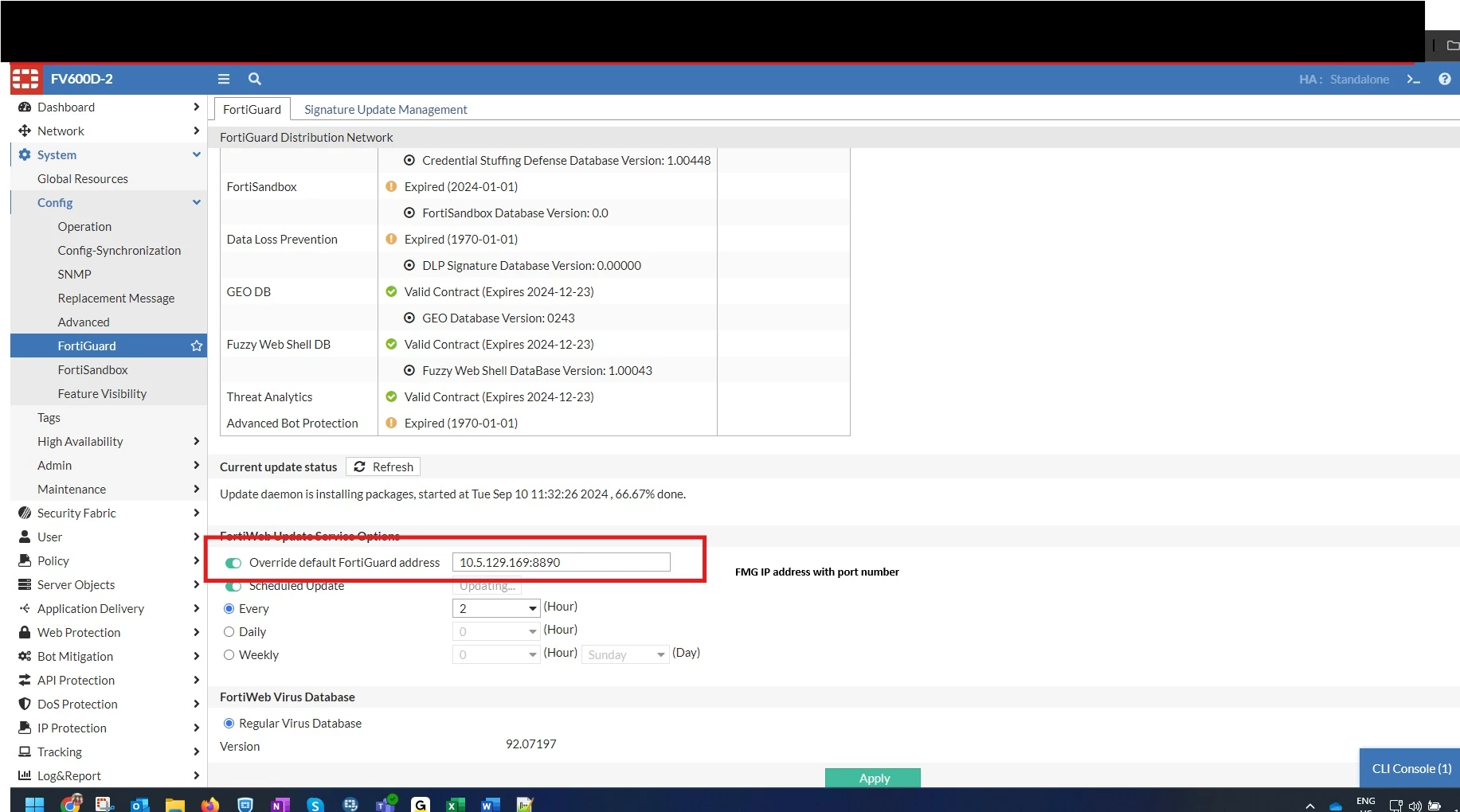

On FortiWeb, configure the FortiManager IP as a FortiGuard IP by enabling the override option under System -> Config -> FortiGuard and enable Override default FortiGuard address -> FortiManager IP:8890.

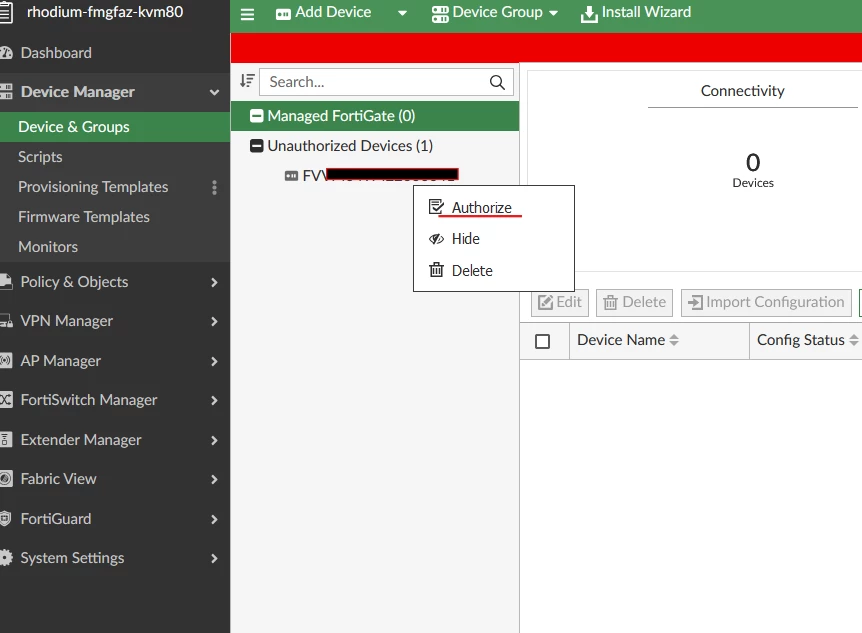

 The device listed on the Unauthorized devices list on FortiManager, 'right-click' on the device and select Authorize. If the ADOM is enabled, the device will be listed in the default root ADOM and can move the device to the respective FortiWeb ADOM.

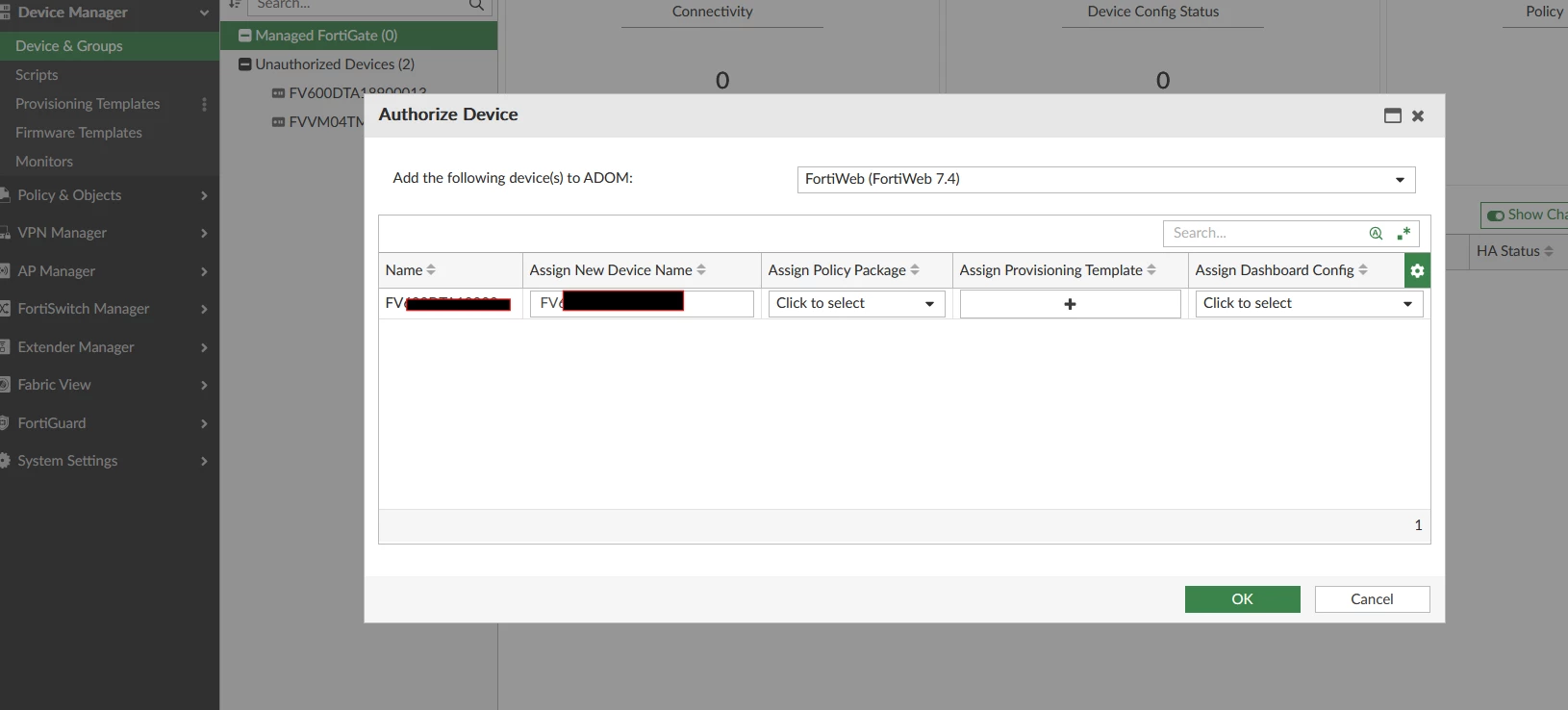

Select the ADOM to where this device should be listed:

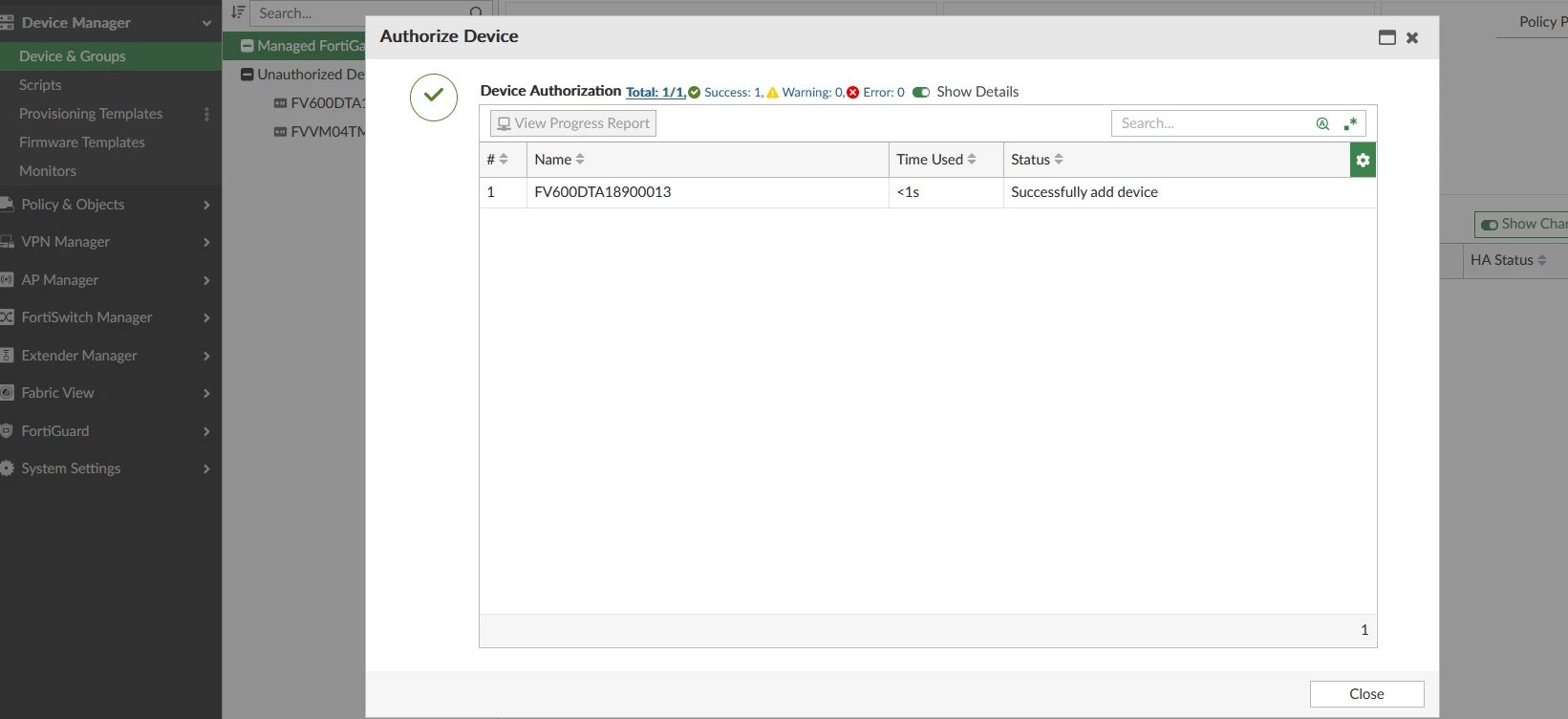

The successful authorization page looks as below:

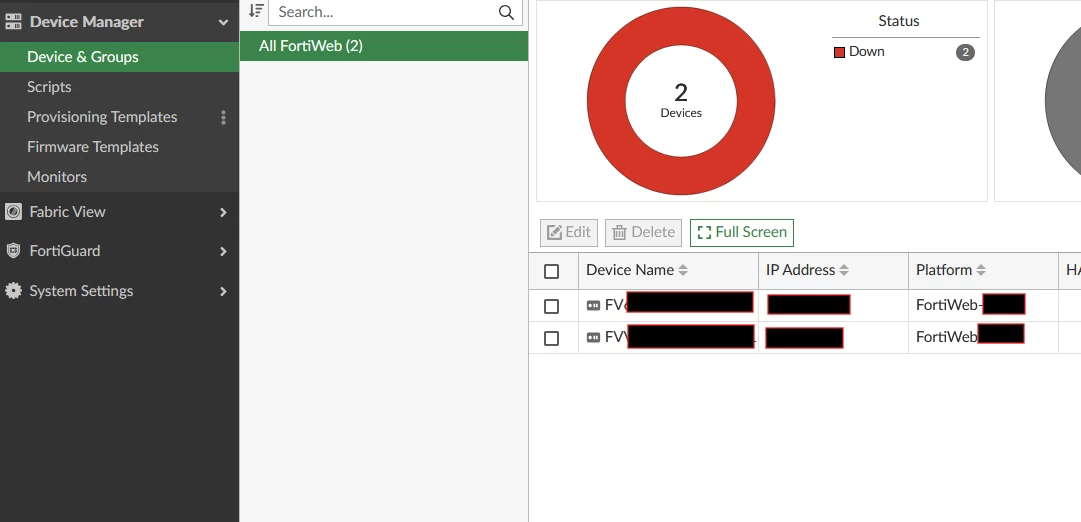

After authorization, the devices and groups page listed with FortiWeb:

After successful communication between devices, the FortiGuard updates can be sent to the FortiWeb.
Example output as below:

diagnose fmupdate view-linkd-log fds

2024/09/10_13:10:55.491 notice  fds_worker[30591]: accept connection from ::ffff:10.5.x.x.
2024/09/10_13:10:55.693 info    fds_svrd[30460]: Start fds server session from 127.0.0.1

2024/09/10_13:10:55.694 info    fds_svrd[30460]: [FGT-->FMG] Request: Protocol=3.0|
Command=Update|Firmware=FWB600D-FW-7.44-649|SerialNumber=FV600DXXXXXX|UpdateMethod=0|AcceptDelta=1|DataItem=05000000FWDB00000-00000.00383-0000000000*00000000FCNI00000-00000.00000-0000000000*
00000000FDNI00000-00000.00000-0000000000*01000000FSCI00100-00000.00000-0000000000*
05000000IRFW00301-00004.00895-0000000000*06000000HCDB00100-00001.00448-1697448602*
07002000CRDB00100-00001.00050-1712158380*07004000DLDB00200-00000.00000-0000000000|
Address=::ffff:10.5.x.x^M ^M

2024/09/10_13:10:55.703 info    fds_svrd[30460]: [FMG-->FGT] Response: Protocol=3.0|
Firmware=FMG-VM64-KVM-FW-7.04-2528|SerialNumber=FMGVMSXXXXXXXXX|Response=300|Persistent=false|ResponseItem=05000000FWDB00000:204*00000000FCNI00000:204*00000000FDNI00000:200*01000000FSCI00100:
200*05000000IRFW00301:204*06000000HCDB00100:401*07002000CRDB00100:
204*07004000DLDB00200:401^M ^M

2024/09/10_13:10:55.703 info    fds_svrd[30460]: Process client ::ffff:10.5.x.x request SUCCESS
2024/09/10_13:10:55.703 info    fds_svrd[30460]: print 0x55fa4b20bd50: cnt=4, size=4512, refcnt=4, track=0 fdssession
2024/09/10_13:10:55.703 notice  fds_worker[30591]: process remote(::ffff:10.5.x.x) SUCCESS!

Debug command on the FortiManager side to validate the updates being pushed or downloaded from FortiGuard:

diagnose fmupdate view-linkd-log fds

Debug command on the FortiWeb side to validate whether the updates are being downloaded or not:

diagnose debug reset
diagnose debug application updated 7
diagnose debug application fds 7
diagnose debug enable
execute update-now

Related article:

Technical Tip: Verifying FortiGuard connectivity on FortiManager
