Technical Tip: Apply the apache.log4j IPS signature in IPS profile using Fortimanager

  • December 16, 2021
  • 0 replies
  • 2407 views
Description This article describes how to correctly configure apache.log4j IPS signature in IPS profile using FortiManager.
Scope
Solution

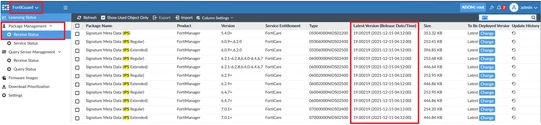

- The IPS signature for apache.log4j was added in IPS database version 19.00215.



Verify there is IPS database version equal to or higher than 19.00215.

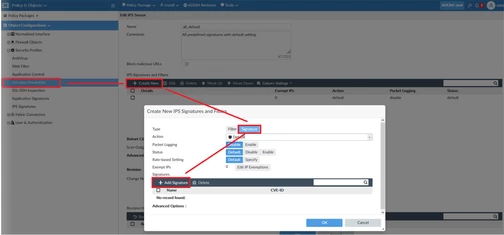

- From the IPS profile in FortiManager add the signature as shown below:
Policy & Object -> Intrusion Prevention -> Edit Profile and select 'Add signature'.

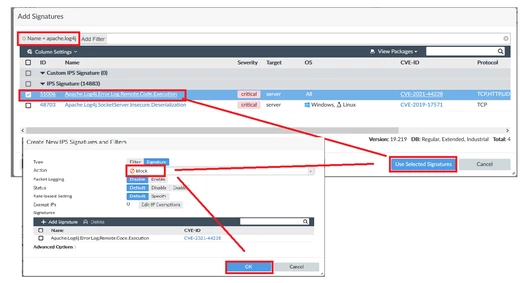

- Search for apache.log4j and select -> change action per the requirement. (For e.g here its selected block).






- Edit the policy and verify correct IPS profile is selected. And then install the policy package to FortiGate.
