Technical Note: FortiManager and FortiAnalyzer v5.2 Remote Management Access
Description
This article describes how to enable remote management for FortiManager and FortiAnalyzer v5.2
Solution
This article describes how to enable remote management for FortiManager and FortiAnalyzer v5.2
Solution
1) Configure remote management access in the network interface options page of the GUI System Settings --> Network
Editing the interface that connects the hardware to the Internet.
Editing the interface that connects the hardware to the Internet.
2) Edit the interface and activate SSH and HTTPS, the most secure options for management access to the device.

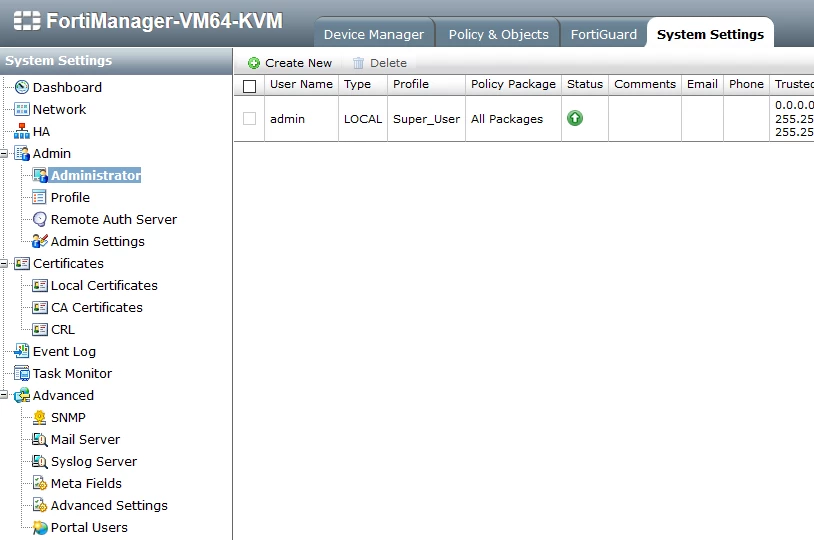

Create an administrative account for the Support Engineer.3) To add a admin account, go to System Settings --> Admin and selecting Create New.
4) With the public IP the Support engineer is using, define a trusted host for this account.
Access Conflicts
Depending on the configuration of inbound services on the unit, HTTPS access may be in conflict.
For example, if a static NAT Virtual IP is configured to use the interface IP of the unit, all data received on that IP is forwarded to the internal server. If this is the case, support explore shared, web-based remote access options.

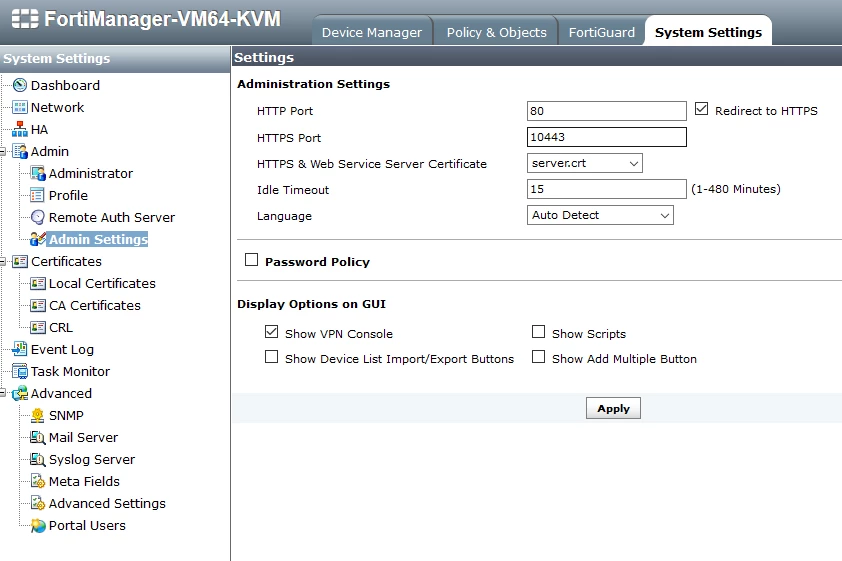

If a port forward VIP using HTTPS or port 443 is in use, change the default HTTPS management port to another that is not in use.
System --> Admin --> Settings.
Once changed, HTTPS access to the FortiManager web-based manager is managed with a colon and the new port. For example - https://192.168.1.99:4430.Related Articles
Working with the Technical Assistance Center (TAC) - Remote Management Access
