Troubleshooting Tip: FortiMail displays FEVM00UNLICENSED as serial number.

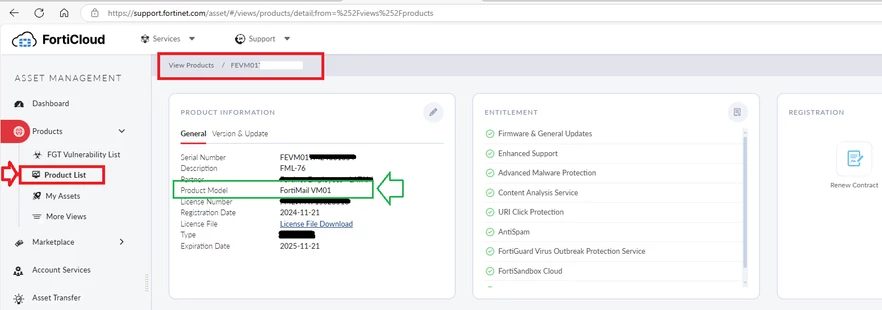

Verify License File: Validate that the license file matches the VM configuration.

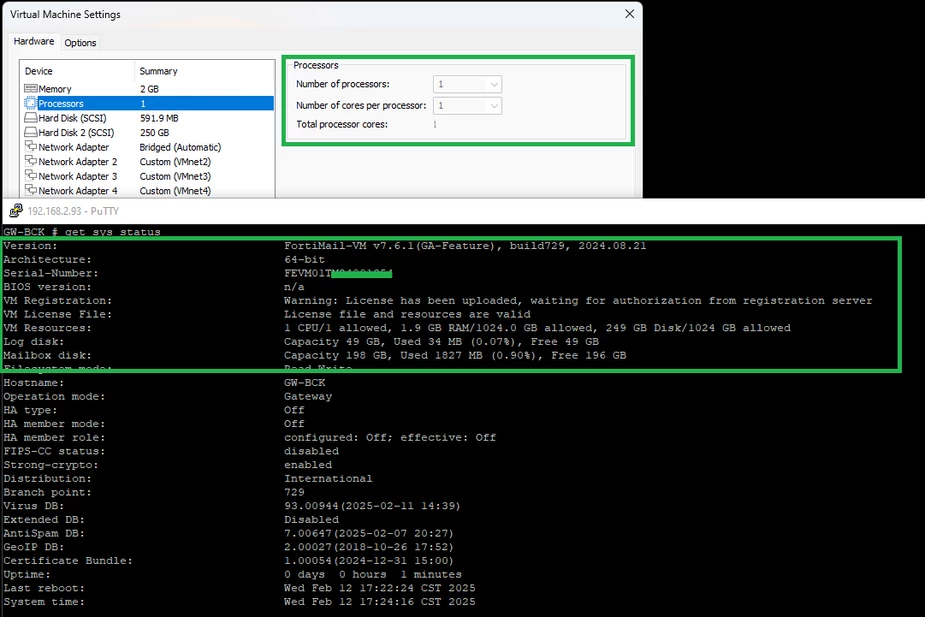

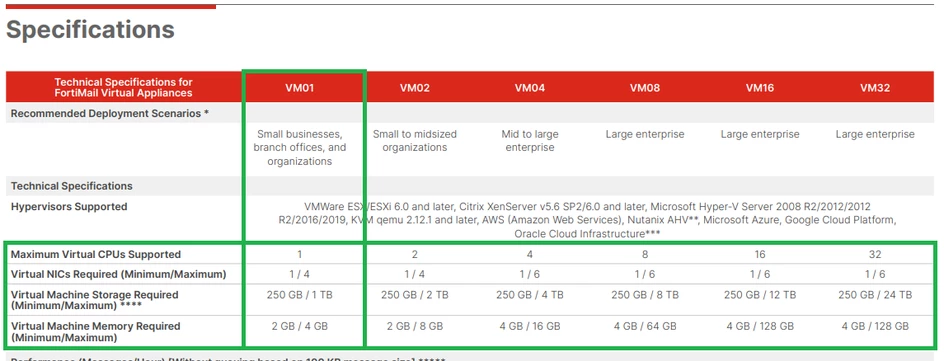

Check CPU Allocation: Validate that the CPU value corresponds with what is indicated in the license file. FortiMail-VM01 requires exactly one CPU to function correctly.

Run the following via the CLI:

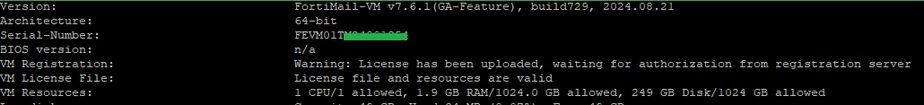

get system status

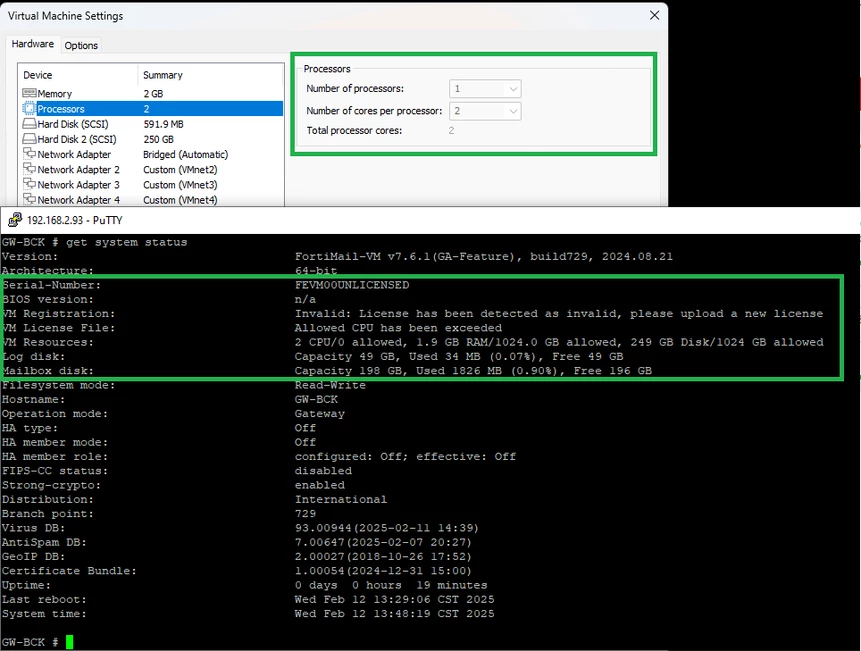

In this case, adjust the values of the VM to the value of the license.

Internet Connectivity: Confirm that the VM has internet access and can reach FortiGuard for license validation.

Note that FortiMail uses the following URLs to access the FortiGuard Distribution Network (FDN):

• update.fortiguard.net
• service.fortiguard.net
• support.fortinet.com

Furthermore, FortiMail performs these queries and updates listed below using the following ports and protocols:

• FortiGuard Anti-Spam rating queries: UDP/53, 8888, 8889.
• FortiGuard AntiVirus Push updates: UDP/9443.
• FortiGuard Anti-Spam or AntiVirus updates: TCP/443.

Use the following commands to confirm the DNS resolution and communicate with the FortiGuard servers:

execute nslookup name update.fortiguard.net

execute telnettest service.fortiguard.net:443

With communication errors:

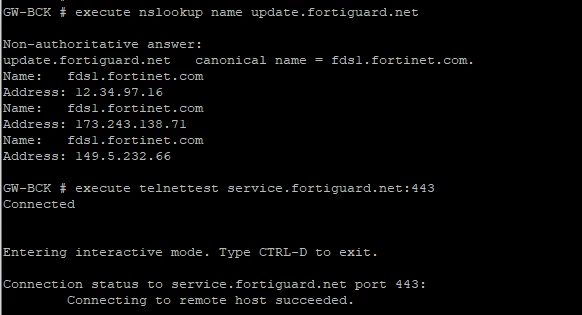

Without communication errors:

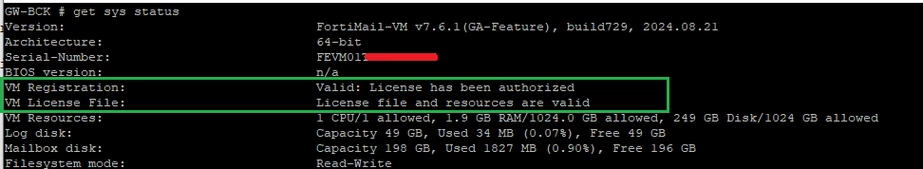

Use the following command to identify the complete registration of the license:

get system status
