Technical Tip: How to redirect specific email ID to separate mail servers

  • December 5, 2024
  • 0 replies
  • 995 views
Description This article describes how to redirect specific email IDs to separate mail servers.
Scope FortiMail Gateway mode with MSSP license.
Solution

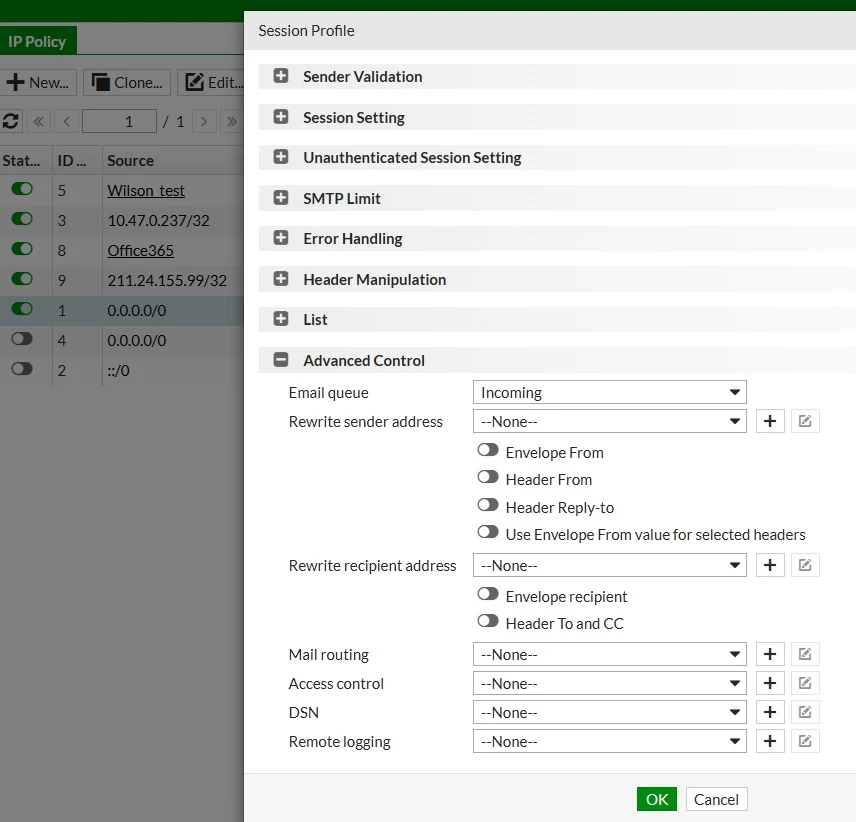

  1. Navigate under the respective session profile under Policy -> IP Policy -> Session Profile.
  2. Expand the Advanced Control:

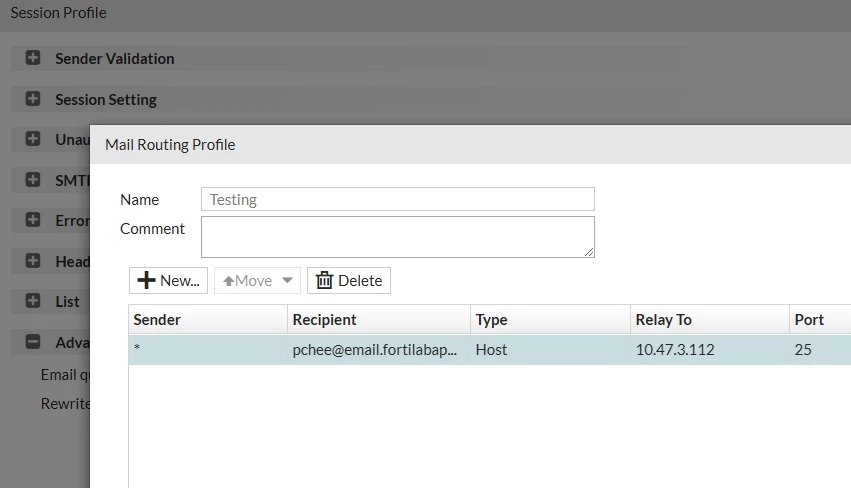

  1. Configure a Mail Routing Profile:






  2. Specify the Recipient and the Relay to the IP address while leaving the sender in the wildcard.

  3. Assign the Mail Routing Profile under the Mail Routing feature.

  4. In the cross-search log, the email ID with the specified recipient will be rerouted to a different IP.

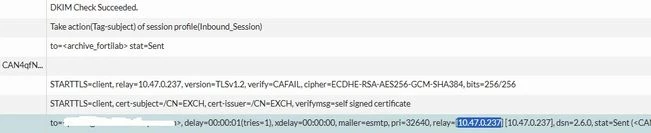

Before:



Default route.jpg

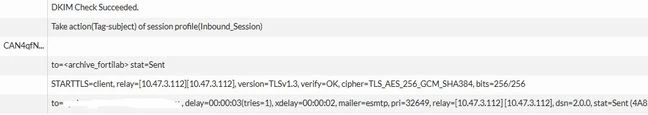

After:
